Mindray V21 User Manual

Addendum to V Series Operating Instructions 2 - 3
Gases (Optional) Gas Dialog
2.2 Gas Dialog
The Gas dialog (as shown in FIGURE 2-2) contains an Alarm tab, Setup tab, and a Calibrate tab. A
description of each tab follows.
2.2.1 Navigating to the Gas Dialog
• Select the Gases digital tile.
OR
1. Select the Setup tab from the Navigation Area.
2. Select the P
arameters button.
3. Select the Gases button.
The Gases dialog displays (as shown in FIGURE 2-2).

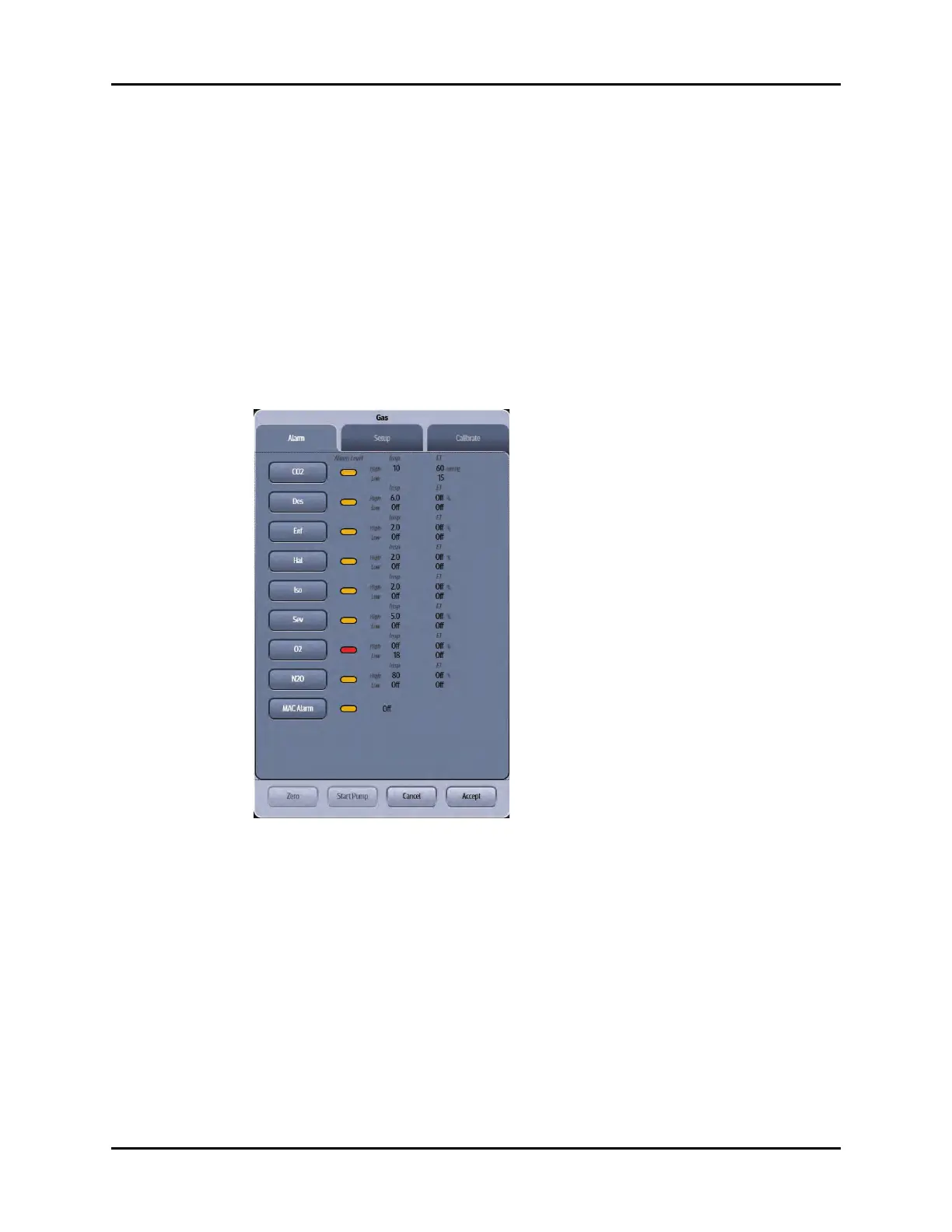

FIGURE 2-2 Example Gas Dialog (Alarm tab)
2.2.2 Configuring Gases Alarm Limits
1. Select the Gases digital tile.
2. Select the Alarm tab.
NOTE: The current parameter setting displays in bold to the right of each
button.
When the CO
2
, Des, Enf, Hal, Isp, Sev, O
2
, or N
2
O button is selected, the corresponding alarm dialog is
displayed. FIGURE 2-3 displays the CO
2
Alarm dialog.
