Mindray WATO EX-65Pro - Remove Backup Cylinder Bracket

9-24
9.2.24 Remove Backup Cylinder Bracket
1. Remove the service door and rear cover plate.
2. Remove pipeline and coil connected with the backup cylinder bracket.

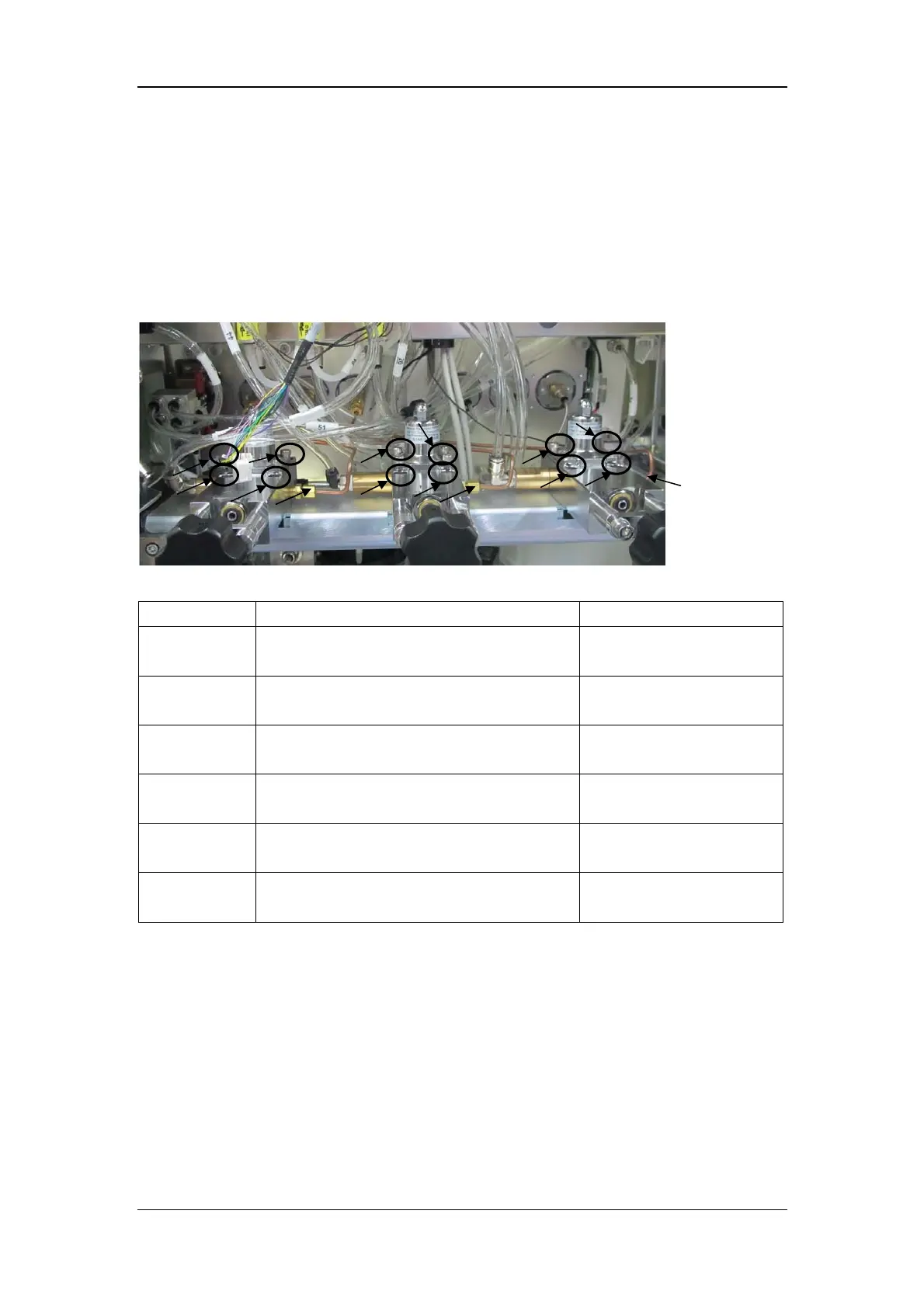

3. Unscrew the four (4) screws fixing each cylinder bracket to remove one backup cylinder
bracket.
Refer to the following table for backup cylinder brackets:
P/N Description Application
115-002250-01 O
2
cylinder bracket assembly
Without electronic pressure
monitoring
115-002251-02 N
2
O cylinder bracket assembly (Φ6)
Without electronic pressure
monitoring
115-002728-01 Air cylinder bracket assembly
Without electronic pressure
monitoring
115-056316-00
O
2
cylinder bracket assembly (0627/electronic
pressure monitoring)
With electronic pressure
monitoring
115-056317-00
N
2
O cylinder bracket assembly
(0627/electronic pressure monitoring)
With electronic pressure
monitoring
115-056318-00
Air cylinder bracket assembly (0627/electronic
pressure monitoring)
With electronic pressure
monitoring
