Mindray Z60T - Page 208

13-22 Probes and Biopsy
No
Name
Description
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<8>
Specification of
guiding block (14G)
Matched with the corresponding biopsy needle (14G)
<9>
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
<10>
Pinch nut of needle-
guided bracket
Used for locking the needle-guided bracket and the
transducer.

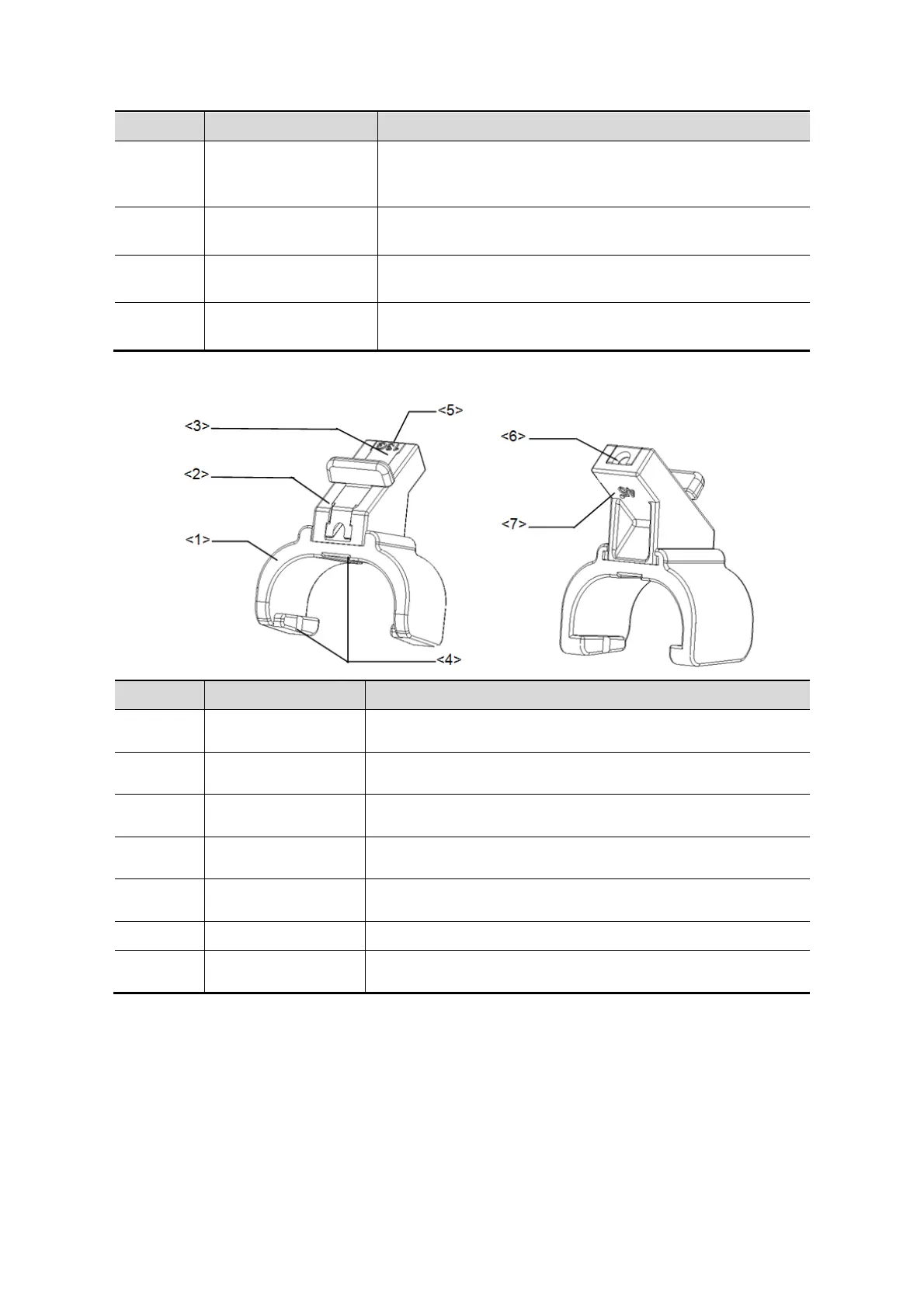

 Plastic/ needle detachable:
No
Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the transducer
<2>
Angle block
Used for determining the angle of the biopsy; there are three
specifications of blocks of angle
<3>
Guiding block
Used for installing biopsy needle; there are five specifications of
guiding blocks for different biopsy needles
<4>
Groove and tab of the
needle-guided bracket
Respectively matched with the tab and groove of the transducer
<5>
Specification of guiding
block (13G)
Matched with the corresponding biopsy needle (13G)
<6>
Needle guide hole Used for installing the biopsy needle
<7>
Specification of angle
block (45°)
Corresponding to the size of the biopsy angle (45°)
