Mindray Z60T User Manual

Probes and Biopsy 13-37
To enter/exit iNeedle
 To enter iNeedle
Click [iNeedle] item in B page on the screen.
Or, you can assign a user-defined key for entering iNeedle.
 Open iNeedle in Biopsy status
1. Perform scanning and locate the target, press <Biopsy> to enter the screen.
2. Click [iNeedle] to enter the status; available adjusting parameters are displayed on the
menu.
 To exit iNeedle
Press the user-defined key or click [iNeedle] to exit the status and enter B mode.
Needle Steer
Description
This function adjusts the biopsy needle angle via changing the steer angle of
the scan line. The iNeedle affecting region changes correspondingly.
Operation
Click [Needle Steer] item on the screen.
B/iNeedle
Description
This function is used to display B image and iNeedle image synchronously.
Operation
To turn on or off the function, click [B/iNeedle] on the screen.
Tips: iZoom (full-screen magnification) is available on iNeedle status.
13.2.7 Removing the Needle-guided Bracket
 NGB-001/ NGB-002/ NGB-005 metal/needle un-detachable needle-guided bracket:
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.

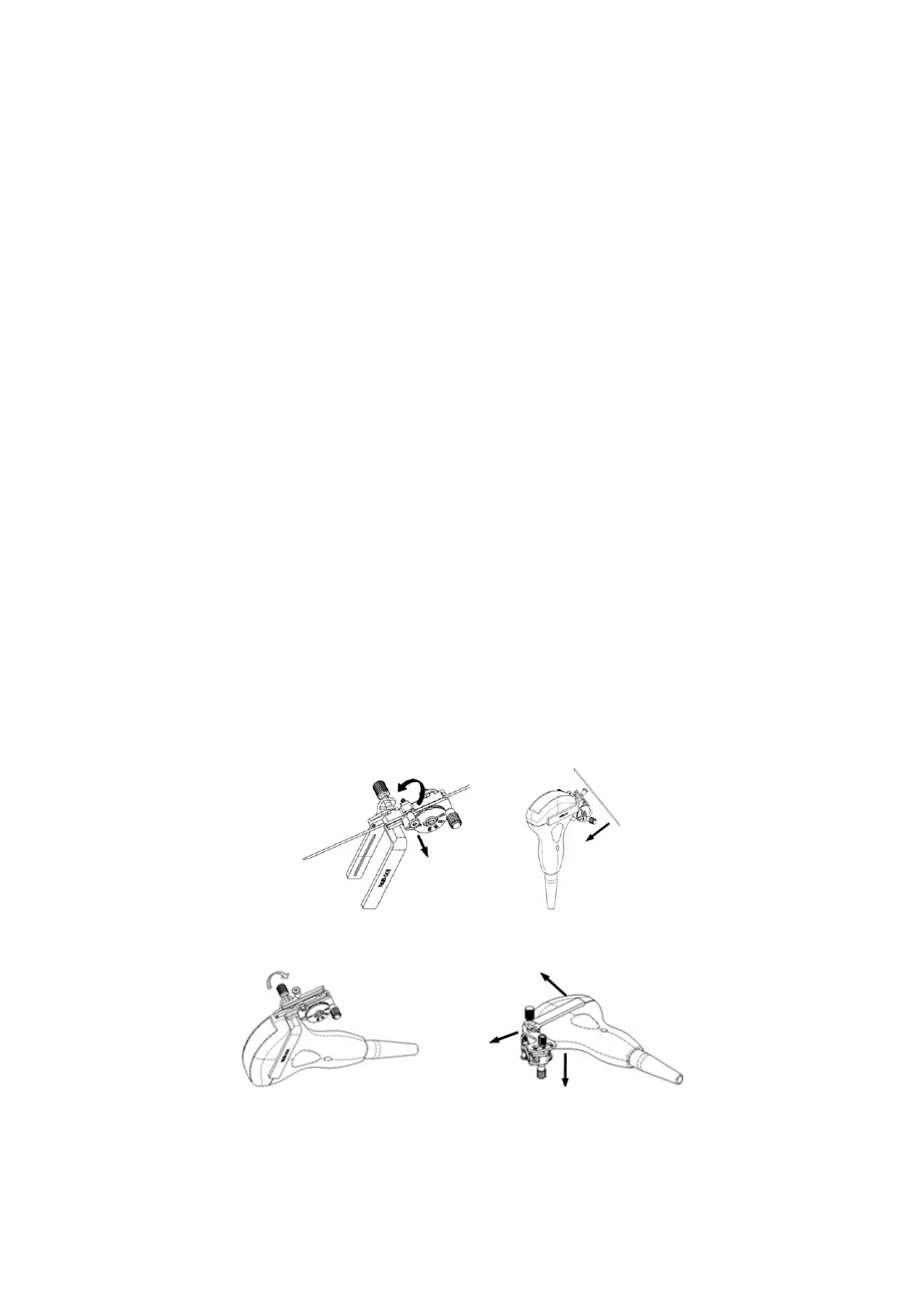

 NGB-001 Metal-needle detachable
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
(3) Screw the pinch nut to release the needle-guided bracket.
(4) Separate the bracket and the transducer.
