Mindray Z60T User Manual

13-38 Probes and Biopsy
 NGB-004

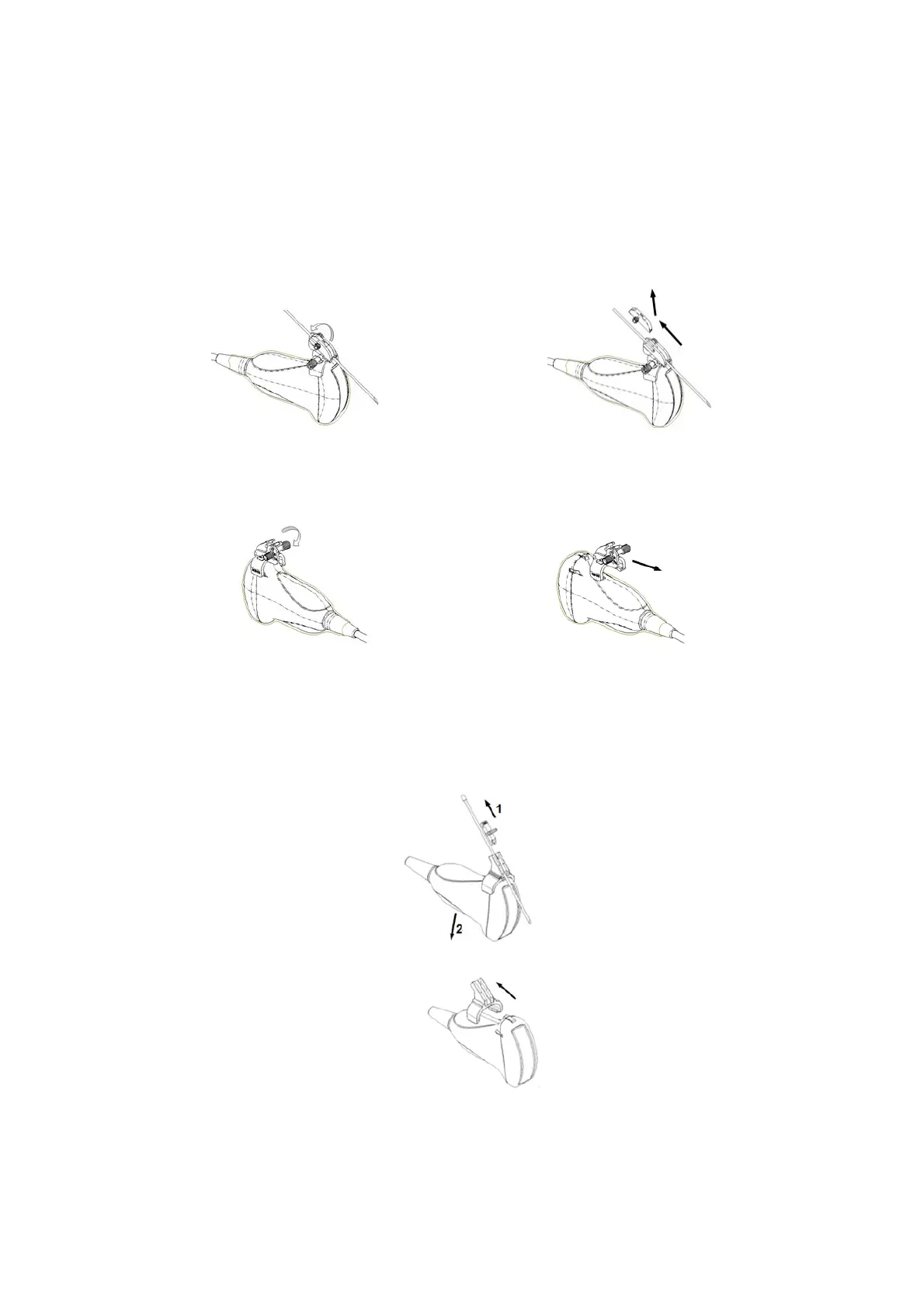

Hold the transducer in the left hand, unscrew the locking nut with the right hand to open
the retaining clamp, and then raise the needle-guided bracket to separate the locating
bulge from the locating grooves.
 NGB-006
 Metal/ needle detachable:
1. Screw out the nut on the guiding block to loose the guiding block and the needle-
guided bracket.
2. Take the guiding block away in the direction of the needle tail, and then separate the
needle from the transducer and the residual parts of the needle-guided bracket.
3. Screw out the locking nut on the needle-guided bracket to loose the bracket with the
transducer.
4. Hold the transducer with one hand, and then separate the needle-guided bracket
from the transducer.
 Plastic/ needle detachable:
1. Remove the guiding block slightly along the direction of the needle’s tail.
2. Separate the residual part of the needle-guide bracket and the transducer from the
needle.
3. Remove the support of needle-guided bracket from the transducer.
 NGB-007
 Metal
1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle’s tail.
