Mindray Z60T User Manual

Probes and Biopsy 13-39

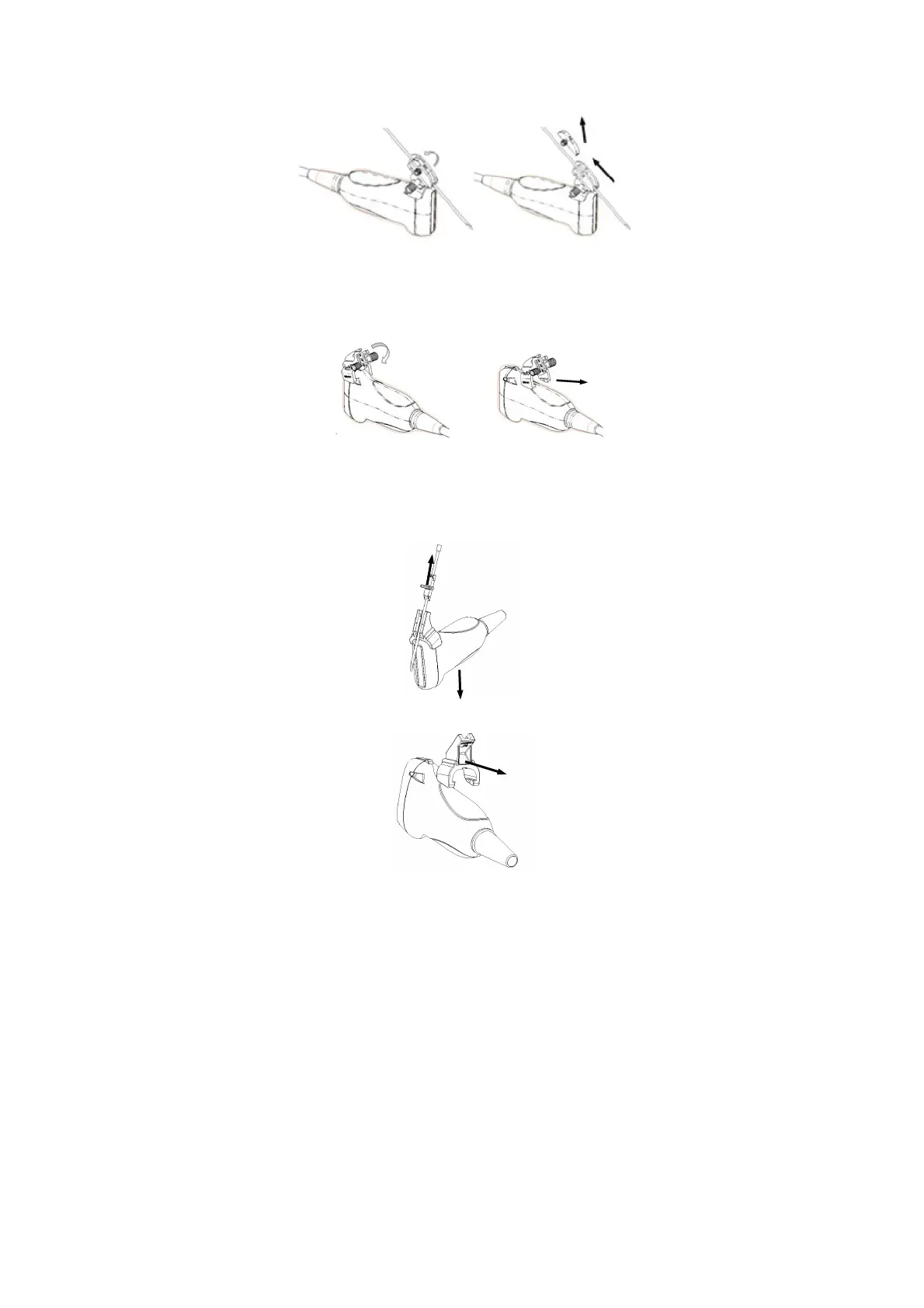

2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the transducer.

Plastic
1) Remove the guiding block slightly along the direction of the needle’s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Remove the support of needle-guided bracket from the transducer.
 NGB-009
(1) Turn on the knob of fixing the needle and separate the needle from the needle-
guided bracket.
(2) Turn on the knob of fixing guiding block and remove the guiding block from the hole
of installing guiding block.
(3) Turn on the knob of fixing needle-guided bracket and remove the needle-guided
bracket.
 NGB-010 metal/needle detachable needle-guided bracket
(1) Remove the guiding block slightly along the direction of the needle’s tail, and
separate the residual part of the needle-guide bracket and the probe from the needle.
(2) Remove the support of needle-guided bracket from the probe.
 NGB-011
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
