Probes and Biopsy 13-33
NGB-010 metal/needle detachable needle-guided bracket

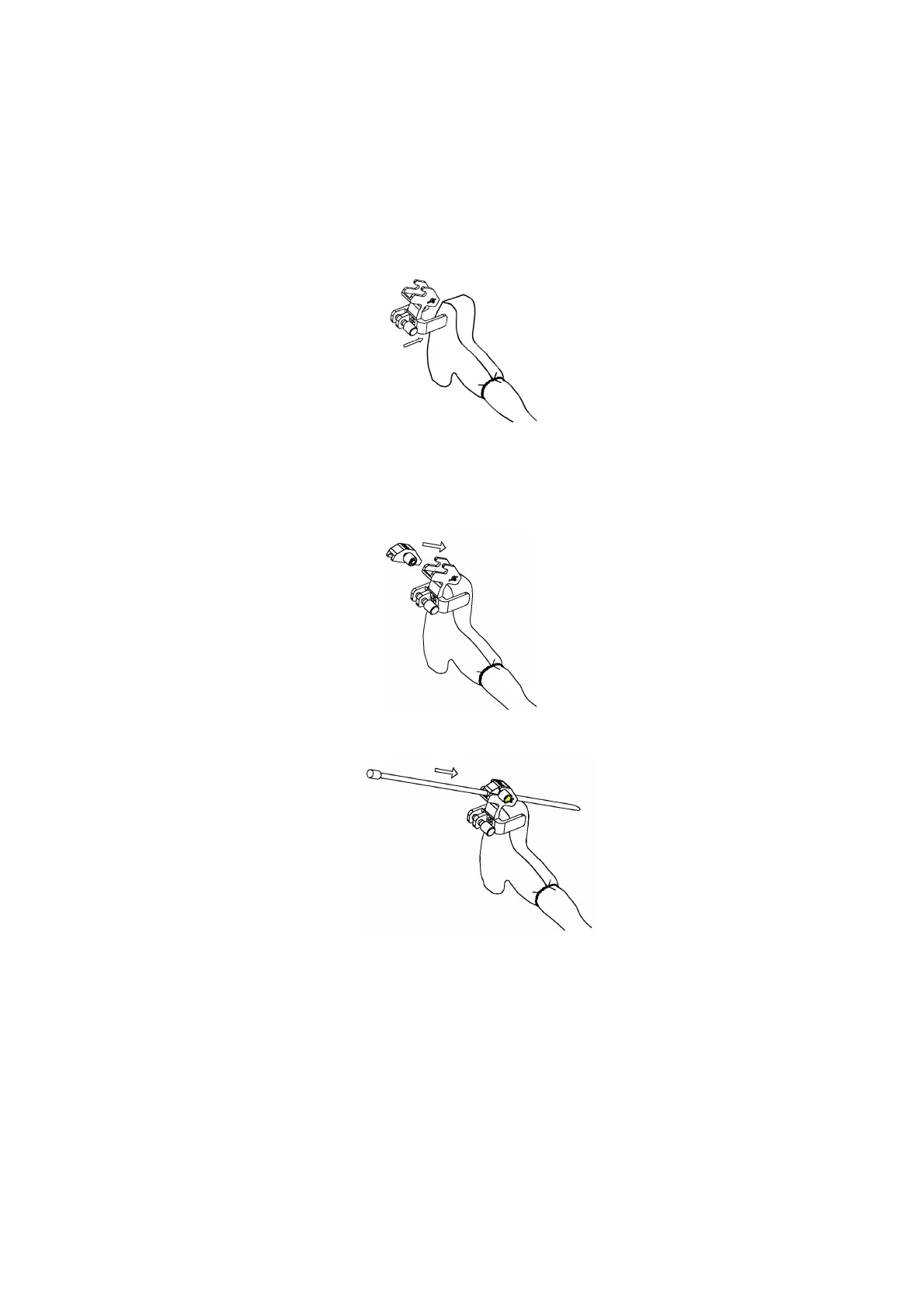

(1) Put on the probe cover.
(2) Hold the probe by one hand, select proper needle-guided bracket, and hold it with the
other hand, and align the grooves of the needle-guided bracket with the tabs of the
probe, then push the needle-guided bracket forward, making the grooves of the
needle-guided bracket to match with the tabs of the probe. Set the needle-guided
bracket at the desired position, turn tightly the knob of fixing needle-guided bracket to
fix the needle-guided bracket.
(3) Check manually to confirm the needle-guided bracket is securely installed on the
probe.
(4) Select a proper guiding block and push it into the groove above the support of
needle-guided bracket, then turn tightly the knob of fixing the guiding block to fix the
guiding block on the support of needle-guided bracket.
(5) Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block.
NGB-011
1. Inosculate the locating groove on the clamp with the two raised edges on the transducer
head and aligning the locating pit of the clamp to the convex point on the transducer head.
2. Turn the grip knob at the tail of the needle-guided bracket tightly.
NGB-016
1. Put on the sterile transducer sheath.
2. Select a proper needle-guided bracket, and match the groove with the tab of the
transducer. Mount the bracket onto the transducer.
