between those in- and outlets - see Fig. 4.
5) For partition walls / dividers / sealed off separations between in- and outlets: The overall surface of the
openings between each partition / separated part and the rest of the case should at least be of the same
size as the sum of the cross-sections of all hosepipes connected to this partition / separated part, thus
ensuring that the air does not need to overcome a higher air resistance there than it does inside the
hosepipes.
6) There is no universally valid figure for the permissible max. total length of the hosepipe connections per
air circuit between EBC and case but the length that is usually delivered with a device (3, 5 resp. 6m) can
be taken as a reference.

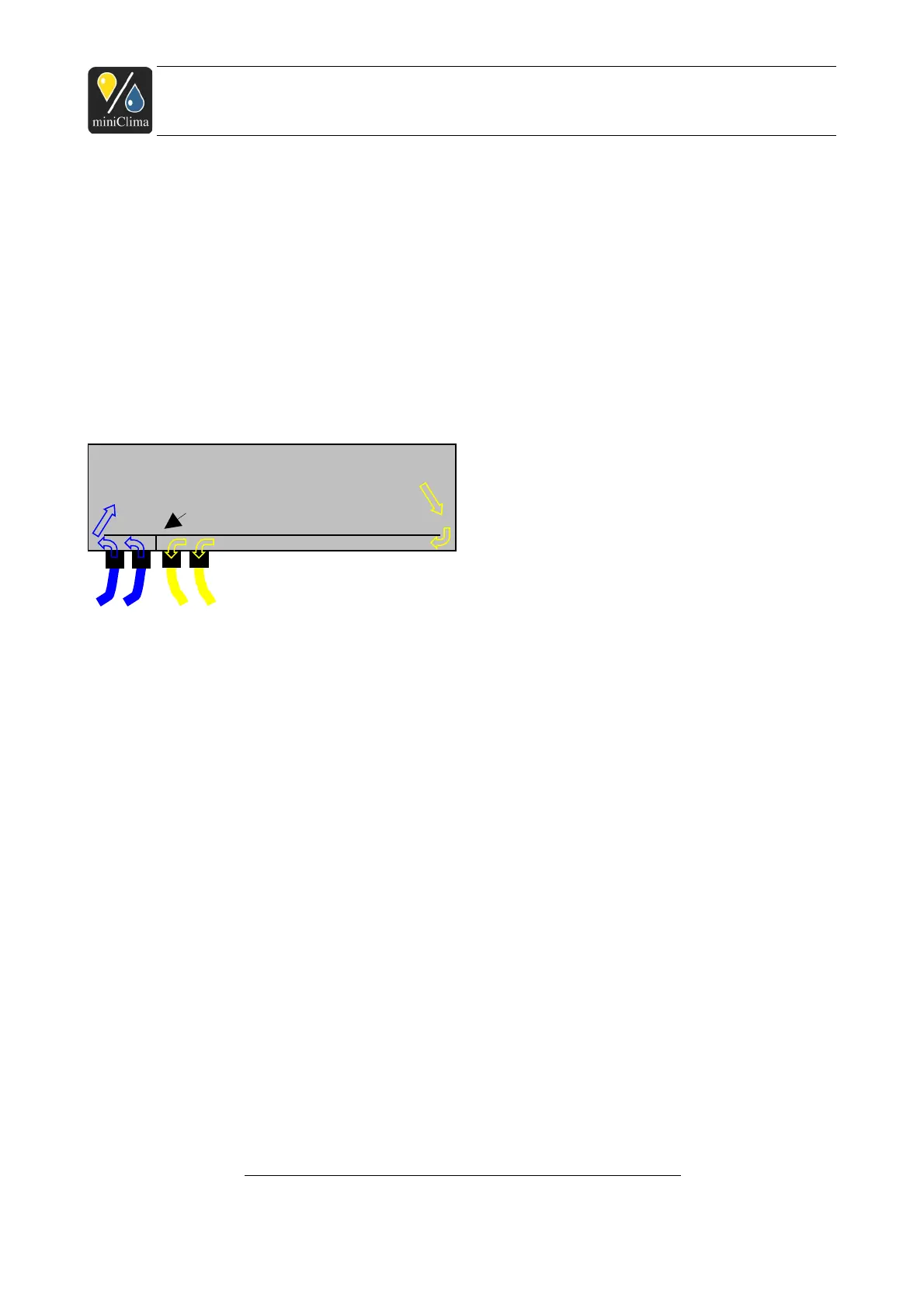

Fig. 4 - The shown positions of the hose fittings do not represent a general solution or
recommendation.
As soon as the positions are fixed, you need to clarify whether the thickness of the case walls exceeds 6mm
on those positions where you want to bring on the hosepipe fittings. If the thickness is 6mm or less you may
cut, drill, or crack the holes for the hosepipe fittings directly in the case wall
11
: EBC10: Ø 25mm, EBC11: Ø
32mm, EBC12: Ø 40mm. If the thickness is above 6mm on the other hand, you need to use intermediate
pieces (not part of the delivery by default) whose thicknesses actually are max. 6mm, e.g. metal plates like
our flanges. The necessary diameters for the boreholes when using flanges or the like result from the size of
the counter nut and gasket of the respective hosepipe fitting: VE25.. (EBC10): Ø 37-42.5mm; VE32..
(EBC11): Ø 42-49mm; VE40.. (EBC12): Ø 54-60mm (always depending on the make of the counter nut -
please take measurements on the delivered parts.)
IMPORTANT: Mind the necessity that every air in-/outlet on the case has to be carried out airtight.
Hosepipe fittings, which are fitted directly to the case wall with the delivered gasket, need no further sealing.
For intermediate pieces that come without gaskets the additional use of silicone will be required.
11
Mind that purpose-made models might be equipped differently. Always measure off the delivered parts before cutting/drilling/cracking. Also, EBCs that shall be used together
with LVBs will need different boreholes on the case walls - see the delivered installation manual for the LVBs.
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
miniClima - Manual_EBC10-11-12(Rev.3)_en
14 / 54
Your case
Constructional, airtight separation
of air inlet(s) and air outlet(s)
