8 PLUGIN REFERENCE
This section provides full details on each of the plugin processing blocks.

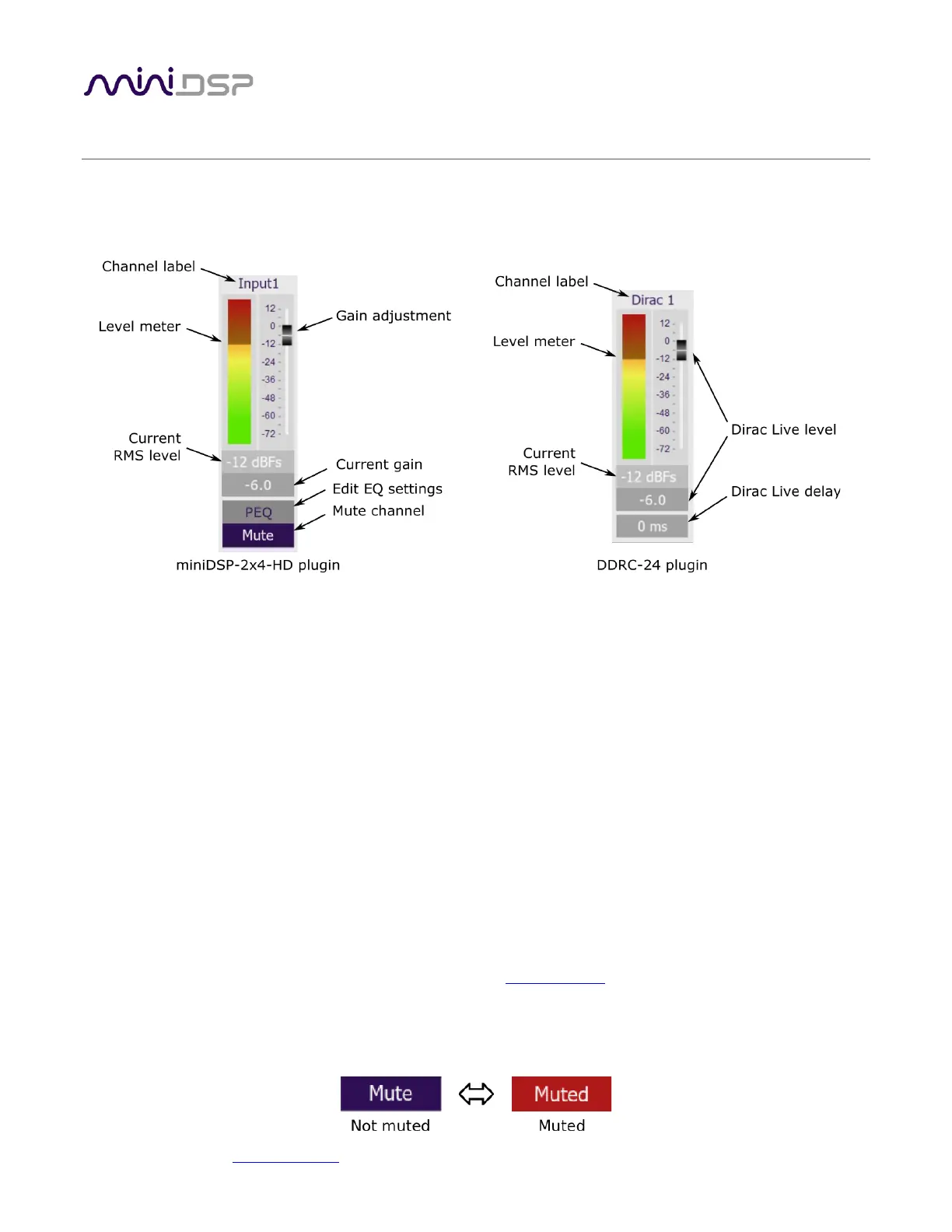

8.1 INPUT CHANNEL STRIPS
Channel label
Each input channel has a customizable label, which is shown at the top of the channel strip. This label also
appears on the routing matrix. To change the label, click on it, type a new label (up to eight characters),
and press the Return key.
Level meter, Current RMS level
Displays the current signal level in real time. (The plugin must be connected to display signal levels.)
8.1.1 Standard version only
Gain adjustment, Current gain
The gain of each channel can be adjusted by moving the Gain Adjustment slider, or by typing the desired
gain into the Current Gain text box. The maximum gain setting is 12 dB, and the minimum gain setting is –
72 dB. (0 dB, the default, is unity gain or no change in level.)
PEQ settings
Click on this button to open the parametric EQ settings window for that channel. There are ten parametric
EQ filters on each input channel. For more details, see Parametric EQ on page 51.
Mute
Press this button to mute that input channel. The button color and label changes to show that the channel
is muted.
