Mips Technologies Malta - Figure 7.4 Core Card Template Layout

Core Card Design
58 MIPS® Malta™ User’s Manual, Revision 01.07
Copyright © 2000-2007 MIPS Technologies Inc. All rights reserved.

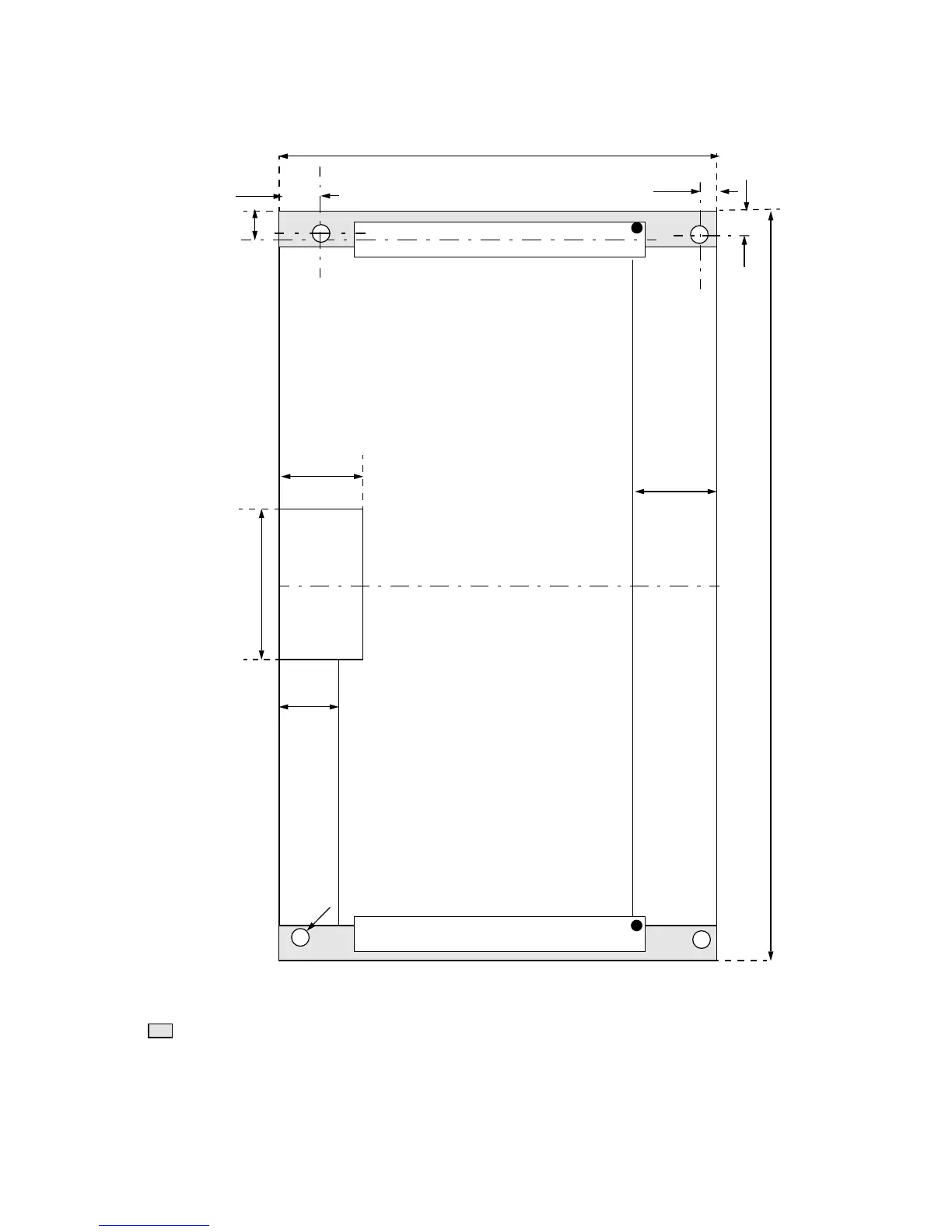

Figure 7.4 Core Card Template Layout
6
100
3.2 dia.
TOP VIEW
34
20
Shaded zone: no tracks on outer layers.
J3
10
connector center.
“Zone 1”
“Zone
2”
20
“Zone
3”
15
J4
5
5
170
