Mirae Mx400 - Page 111

Chapter 4 Mx-Series Unit Description
4-37
Transistors
SOT 23
3.0mm x 2.6mm x
1.1mm
SOT 89
4.5mm x 4.3mm x
1.6mm
SOT 143
3.0mm x 2.6mm x
1.1mm
SOT 223
6.7mm x 7.3mm x
1.6mm
Transistors
SOT 323
2.2mm x 2.2mm x
1.0mm
SOT 343
2.0mm x 2.1mm x
1.0mm
MW-4
3.0mm x 2.6mm x
1.1mm
MW-7
6.7mm x 7.3mm x
1.8mm
Power
Transistors
D-Pak
10.0mm x 6.6mm x
2.7mm

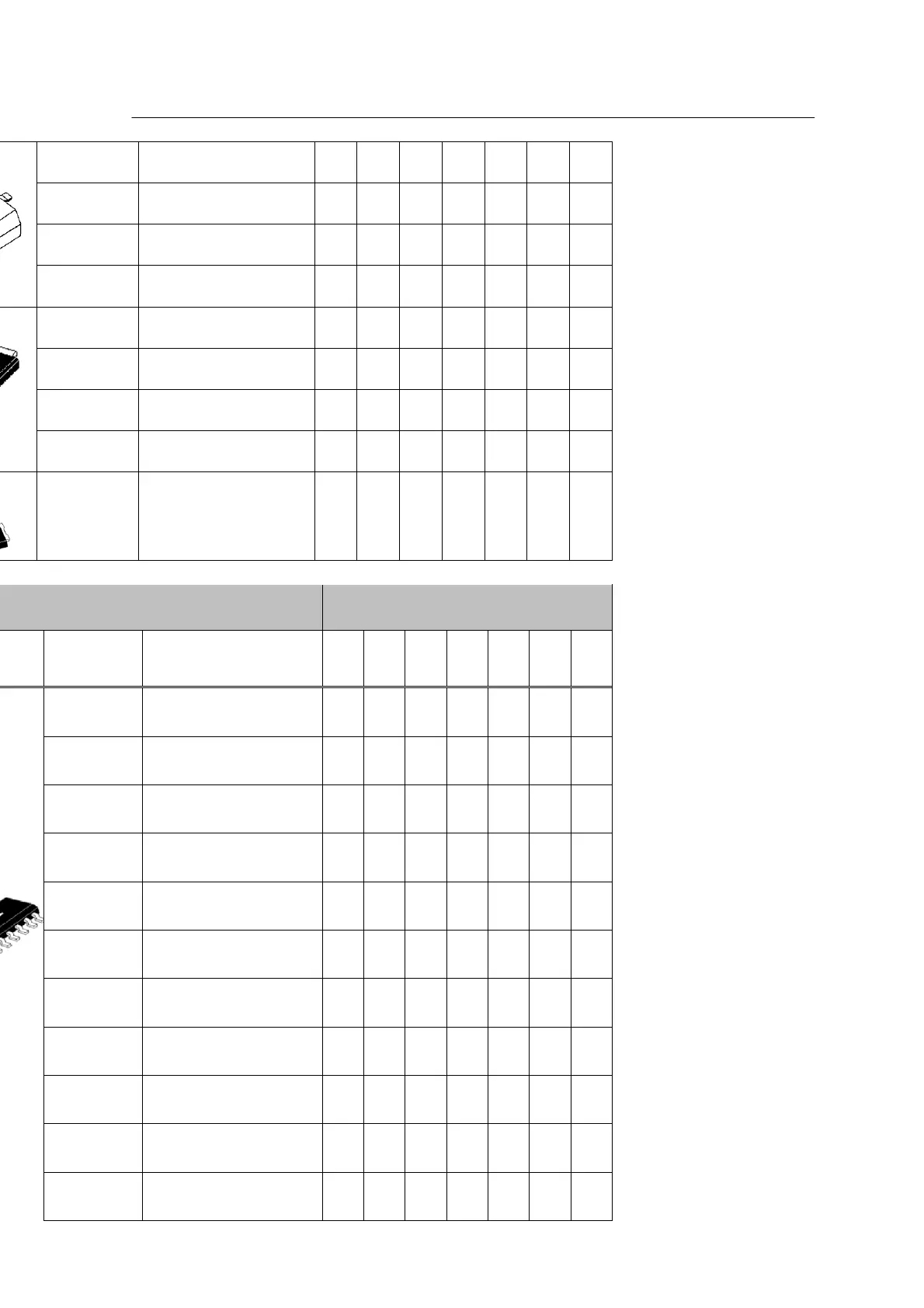

<Table 4-9 Nozzles applicable by component (3)>
Component Information
Nozzles
Component
Type
Component
Code
Dimension
A
B-1
C
D
E
P2-
1
H-
4C
SO Type IC
SO 6
3.8mm x 6.0mm x
1.5mm
SO 8
4.9mm x 6.0mm x
1.6mm
SO 14
8.7mm x 6.0mm x
1.6mm
SO 16
10.0mm x 6.0mm x
1.6mm
SO 14L
9.1mm x 10.3mm x
2.5mm
SO 16L
10.3mm x 10.3mm x
2.5mm
SO 18L
11.6mm x 10.3mm x
2.5mm
SO 20L
12.8mm x 10.3mm x
2.5mm
SO 24L
15.4mm x 10.3mm x
2.5mm
SO 28L
18.0mm x 10.3mm x
2.5mm
SO 8 High
OK8
4.9mm x 6.0mm x
3.2mm
