6-68 Mx100/200 Series Operation Manual

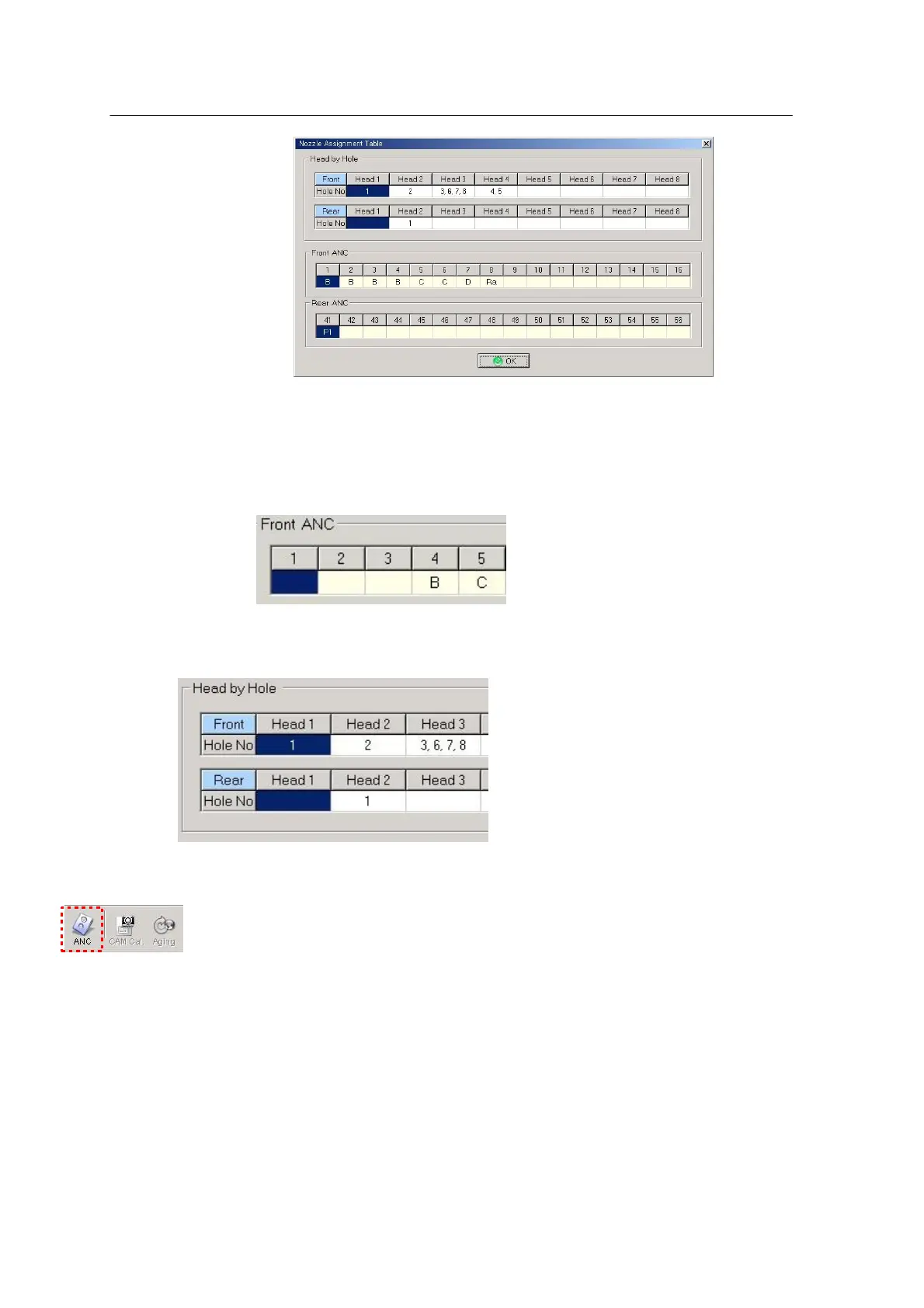

<Figure 6-63 가 View Nozzle Assignment Table >
Check nozzle assignment to each ANC hole and use of head by hole number.
Apply the result to the nozzle setup in the ANC Information window of MSETUP
program.
<Nozzle assignment to each hole of ANC>
<Hole assignment to each head >
Select the ANC Information icon of MSETUP (Open the Msetup window of MMI)
※ This function is also presented in the Program Editor window.
