Columns
Maximum number of balls in column
Rows
Maximum number of balls in row
Pitch X
Ball pitch in column
Pitch Y
Ball pitch in row
Diameter(D)
Ball diameter
Ball Height(H)
Height of ball
Missing Balls
Used to edit ball information.
Where all columns and rows are not filled with balls, check ‘Missing Balls’ and edit the ball information using the
‘Edit Balls’ button.
<

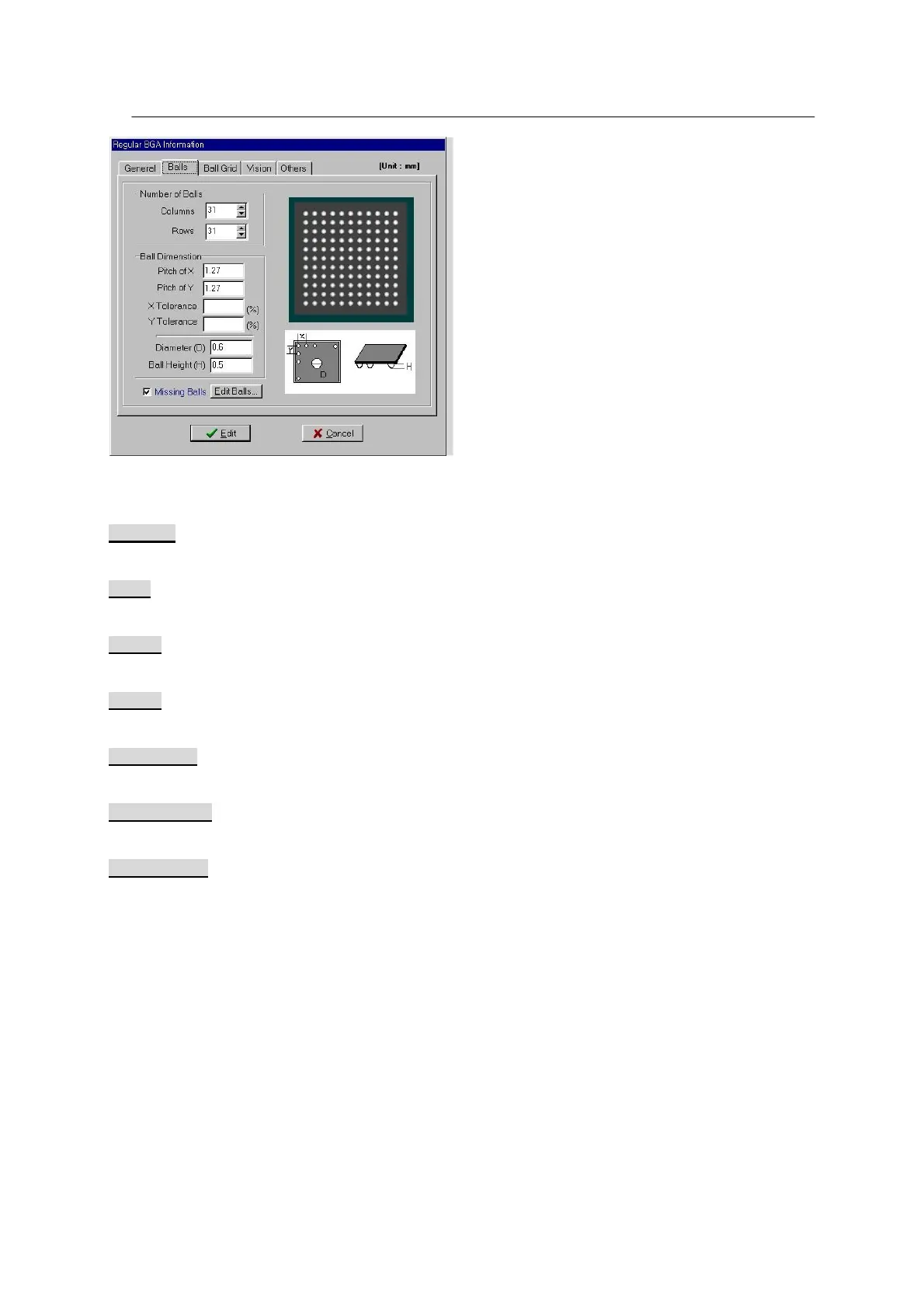

Figure 6-
32 가
Add new part -BGA>
