Finally, set NEXT Feeder for Tray Feeder of the same Part Number
(Reduces part replacement by grouping trays of the same parts as much
as applicable.)
Example)
Feeder No Next Feeder No
103 104
104 105
105 106
106 0
If feeder numbers are defined as shown above, parts of feeder
104 are automatically processed when all parts of feeder
103 are
processed. Since 0 is entered for feeder 106, all parts of
feeder
DiscardP : 8 ~ 56mm Feeder,
Stick
PickPos : Tray feeder , Shuttle
Outlet Conv : Shuttle
TSU
용
For TSU
For Tray Feeder
For Tray
Feeder
Check this part to ensure that
the Teaching data has been
entered.
Check this part to ensure that the
Teaching data has been entered
(
Reference X,Y
).

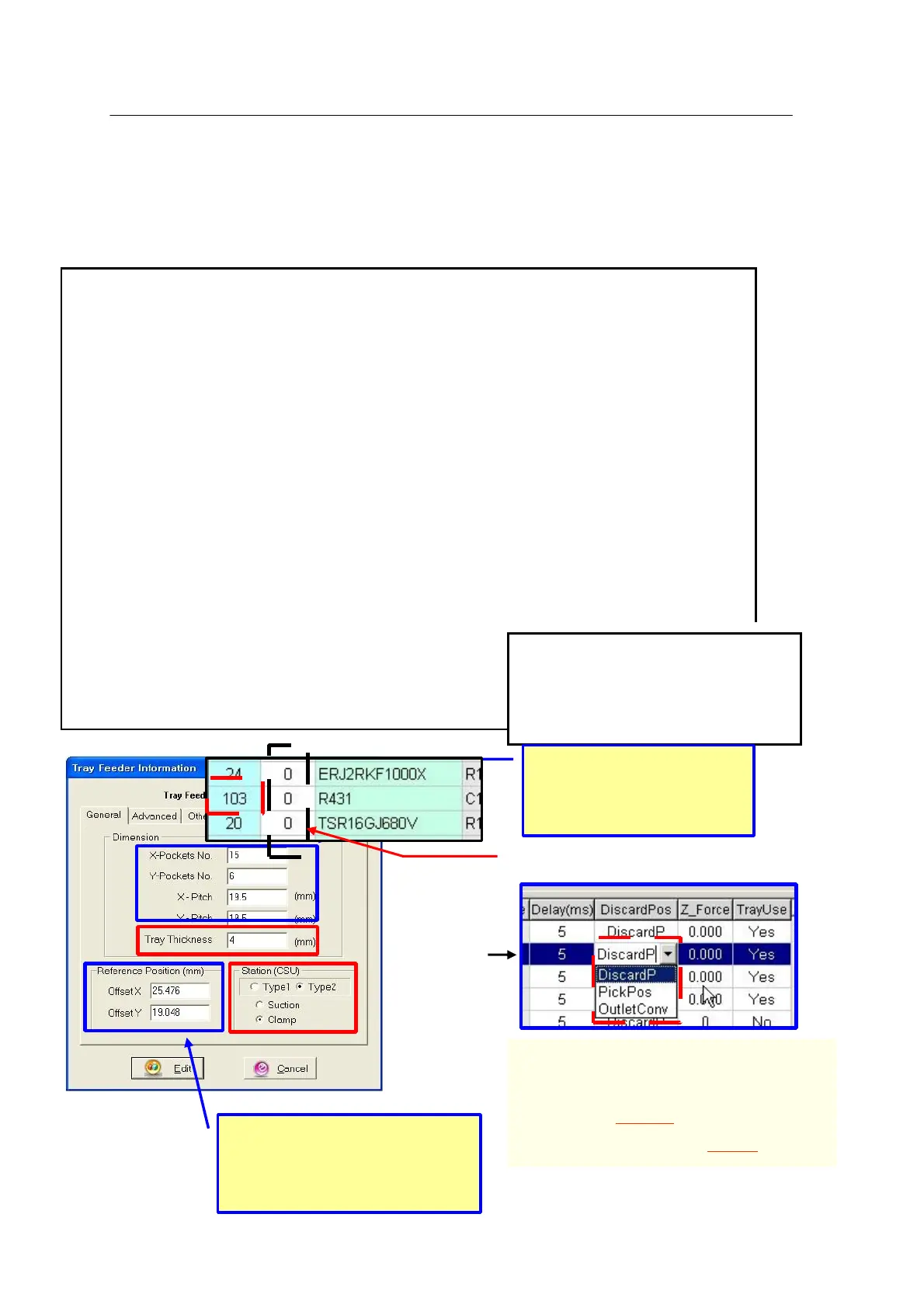

Select a desired cell in the Program Editor
window. Ensure that the discard position for
TF & TSU is
Pick Pos
. The discard position
for an odd shaped feeder is
Discard
.
NEXT Feeder
