Chapter 6 Programming 6-49
• 1pt teach: Directly teaches the center of part.
• 2pt teach: Teaches two points of part in the diagonal direction (determine the center).
Enter the position of Locate ID in 1pt or 2pt teaching method.

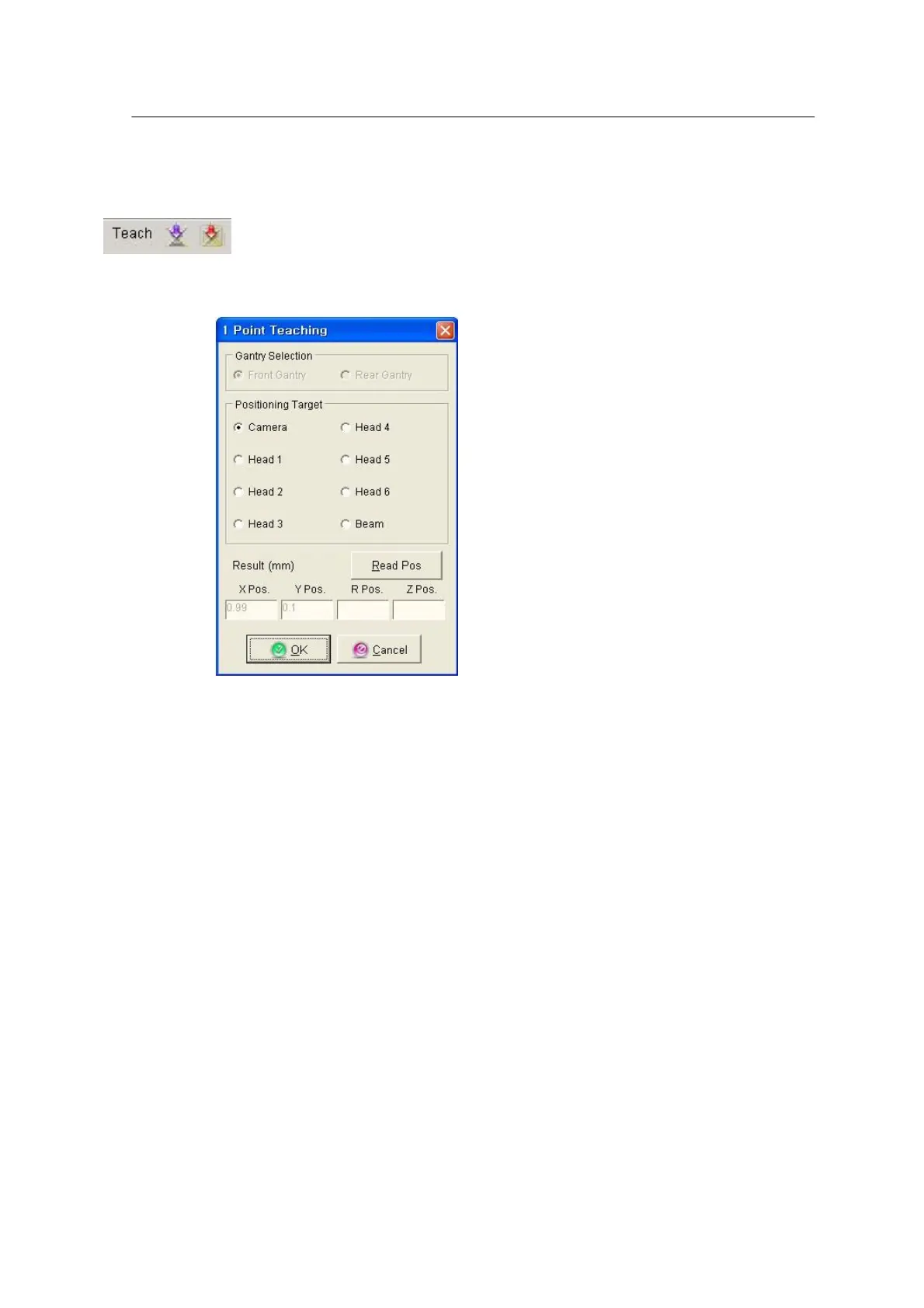

<Figure 6-38 가 1pt teaching window >
For teaching, move to the concerned position -> Select Camera -> “OK”
