1-18 Mx-Series Manual

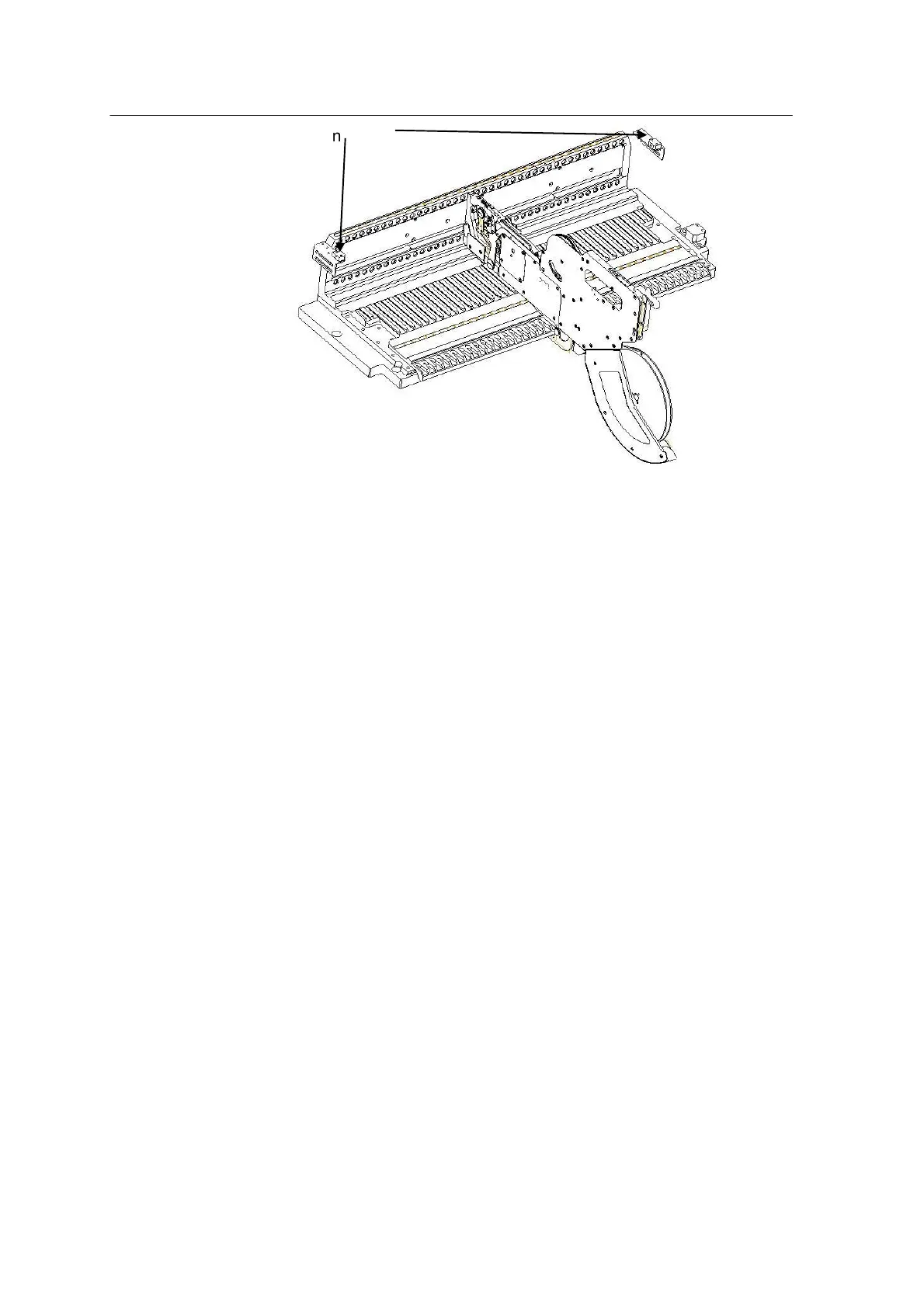

Feeder Power Check
- Check that power is supplied to the Feeder Interface Board at
the SMPS Test Point (DC 15V).
Laser Beam Check
- Choose Camera from MSetup and turn on the Offset Camera
LED.
- Check that the Laser beam is emitted.
Coordinate check Conveyor Mark check: Check
torsion and normal recognition of vision.
- Check rectangularity between conveyor mark points.
Reference mark point check: Check that values are entered
accurately.
- Check rectangularity of the machine gantry.
PWB position (fix): Ensure that no twist is caused by moving
the machine (compare with the entered value)
ANC position check: Ensure that no twist is caused by
moving the machine (compare with the entered value) System
Position Value check
- Perform position teaching for each coordinate value and check
the position.
Parameter & S/W check:
Refer to the tuning parameter
settings. System
setup/parameter/General System
