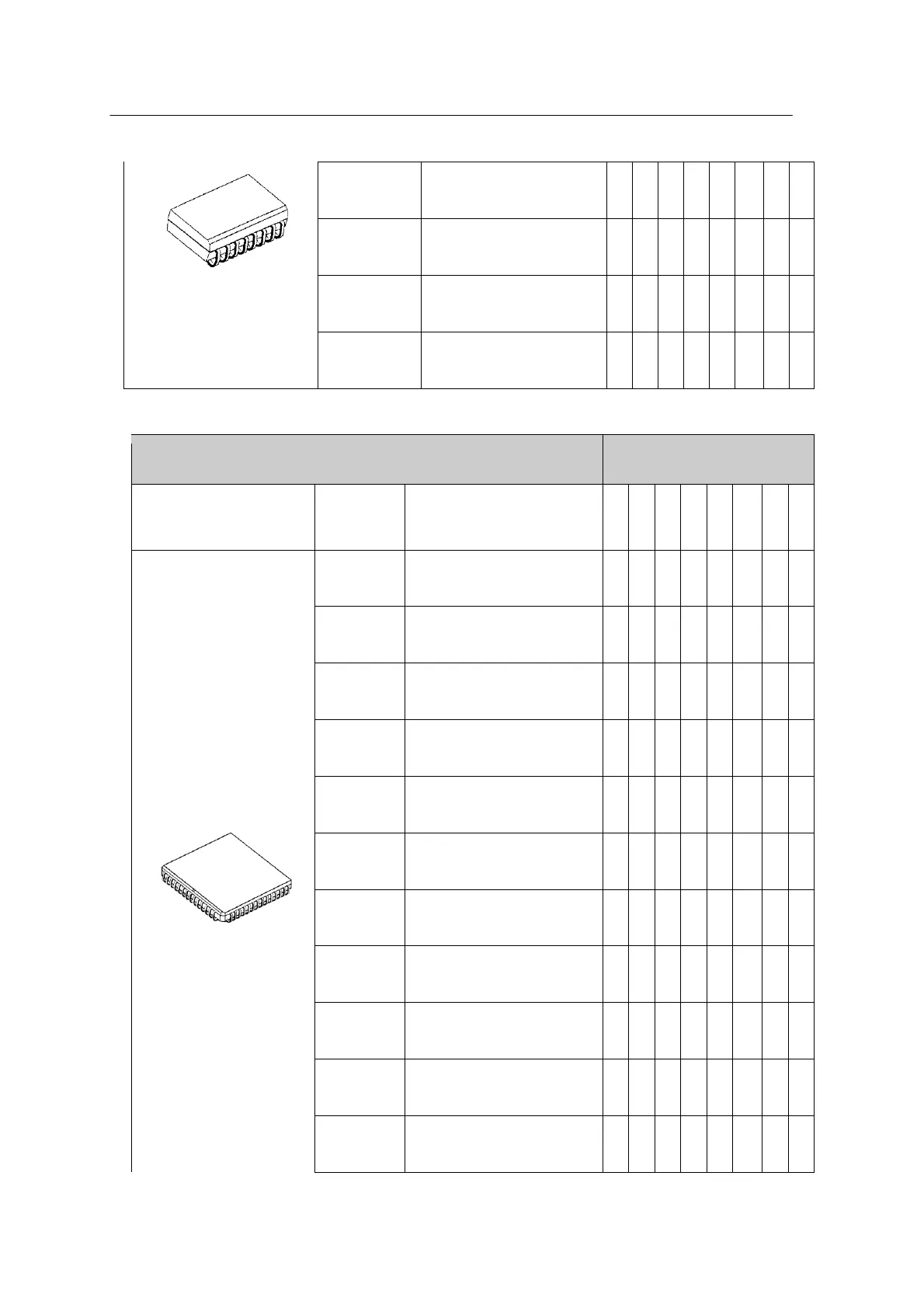

Mirae Mx400 - Page 324

4- 20 Mx-Series Manual
SOJ 20 DA
17.0mm x 9.8mm x
3.5mm
●
SOJ 24 D
16.4mm x 8.7mm x
3.5mm
●
SOJ 26 POJ
17.1mm x 8.5mm x
3.5mm
●
SOJ 26 POZ
17.1mm x 9.8mm x
3.6mm
●
Chip Description
Nozzles used
Chip Type
Chip Code
Dimension
A
B-
1
C
D
E
P2-
1
A-
1C
H-
4C
PLCC Type IC
PLCC 18
13.4mm x 8.2mm x
3.4mm
●
PLCC 18
R
11.8mm x 8.2mm x
3.5mm
●
PLCC 18
R
13.5mm x 8.3mm x
3.5mm
●
PLCC 22
R
13.5mm x 8.3mm x
3.5mm
●
PLCC 20
10.1mm x 10.1mm x
4.5mm
●
PLCC 24
11.3mm x 11.3mm x
4.5mm
●
PLCC 28
12.6mm x 12.6mm x
4.5mm
●
PLCC 28
R
15.1mm x 10.0mm x
3.5mm
●
PLCC 32
R
13.5mm x 13.5mm x
3.5mm
●
PLCC 52
19.0mm x 19.0mm
●
PLCC 68
24.1mm x 24.1mm
●
