Chapter 2 part Description 1-
5

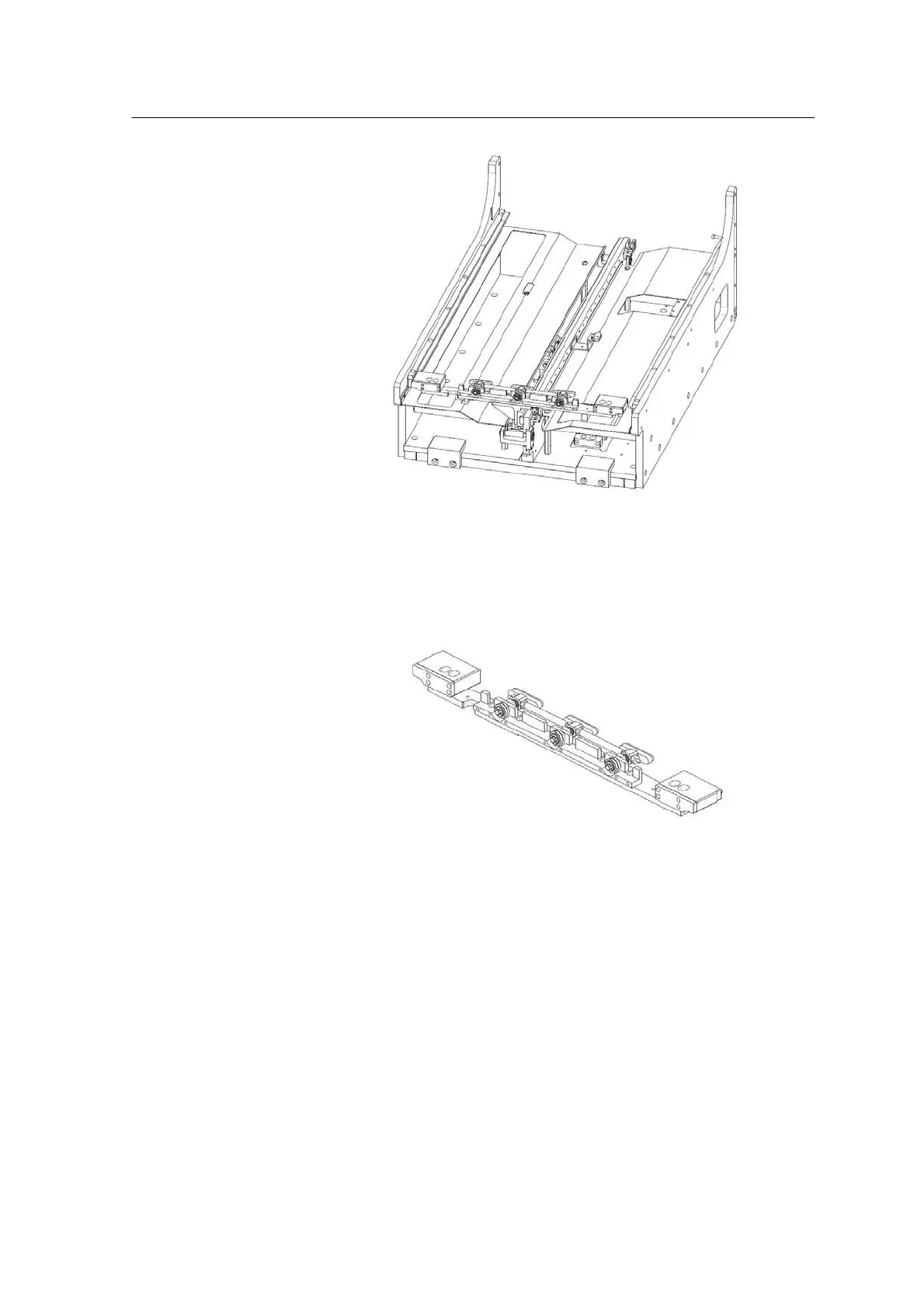

<그림 2-2 가 Y-Guide>
► Carrier Arm: Picks up the pallet loaded on the magazine and moves
it to the mounter picking position via the Y- Guide.
<그림 2-3 가 Carrier Arm>
► Y Motor Assembly: Drives the Carrier Arm back and forth along the Y axis. Composed
of an idle pulley and a belt assembly.
