Chapter 2 part Description 1-
7

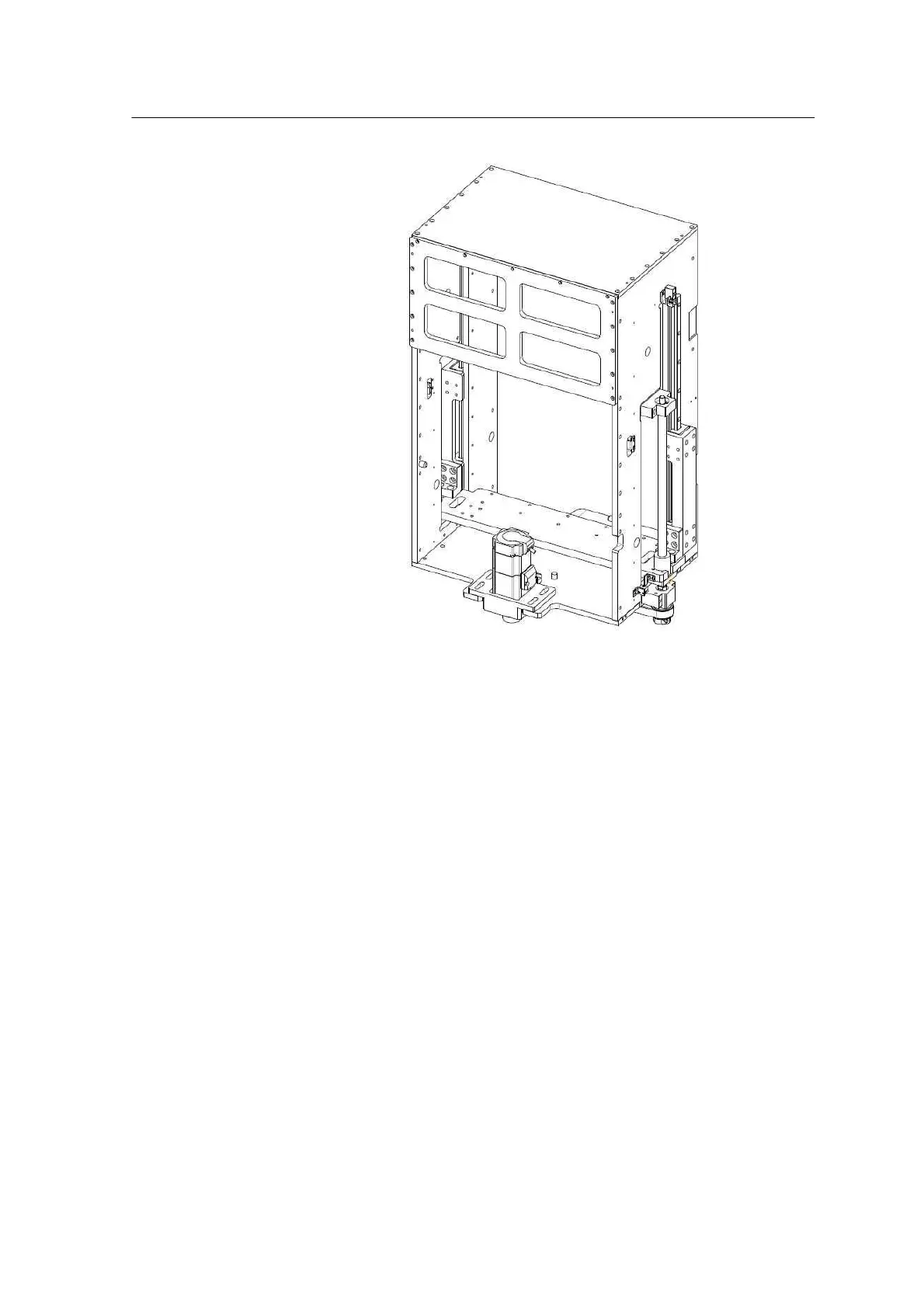

<그림 2-5 가 Side Frame Assembly>
► Z Ball Screw Assembly: Composed of a Z Motor (Brake Type) and
an LM Shaft to move the magazine up or down.
► Magazine Assembly: A Z-axis part that moves up and down along the Z-axis to load the
pallet on the Y axis.
