4.0 Installation

This chapter describes the installation of the FX-401.

4.1 UB-1024DS Mechanical Installation

The UB-1024DS is a black backbox suitable for flush or surface mounting with a built-in trim

ring. The DOX-1024DS is the front door of this backbox, which is available in white and red,

DOX-1024DSR. An enclosure consists of the backbox plus the connected front door.

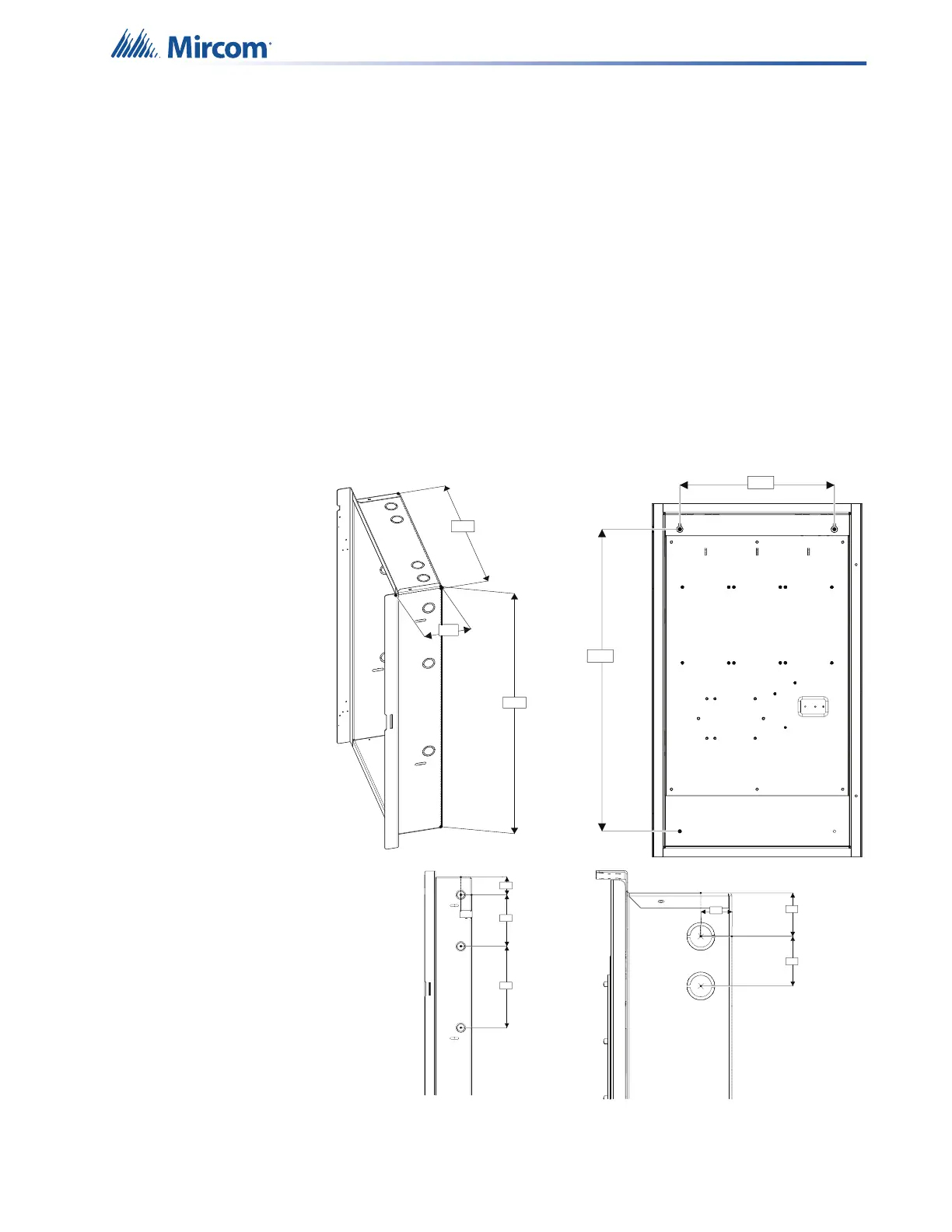

Figure 2 UB-1024DS Backbox Installation Instructions and Dimensions

Dimensions of Enclosure (minus built in trim ring) 14.5” x 4.2” x 26”

Distance between horizontal mounting screws 12”

Distance between vertical mounting screws 23.5”

Complete Dimensions of Enclosures 16.3” x 5.5” x 27.5”

26.0 "

14.5 "

4.2 "

External Dimensions

12.0 "

23.5 "

Mounting Dimensions

1.3 "

1.7 "

2.0 "

Top View

2.1 "

1.3 "

6.0 "

9.5 "

Side View
