Mircom FX-401 User Manual

60
7.2 Wire Routing

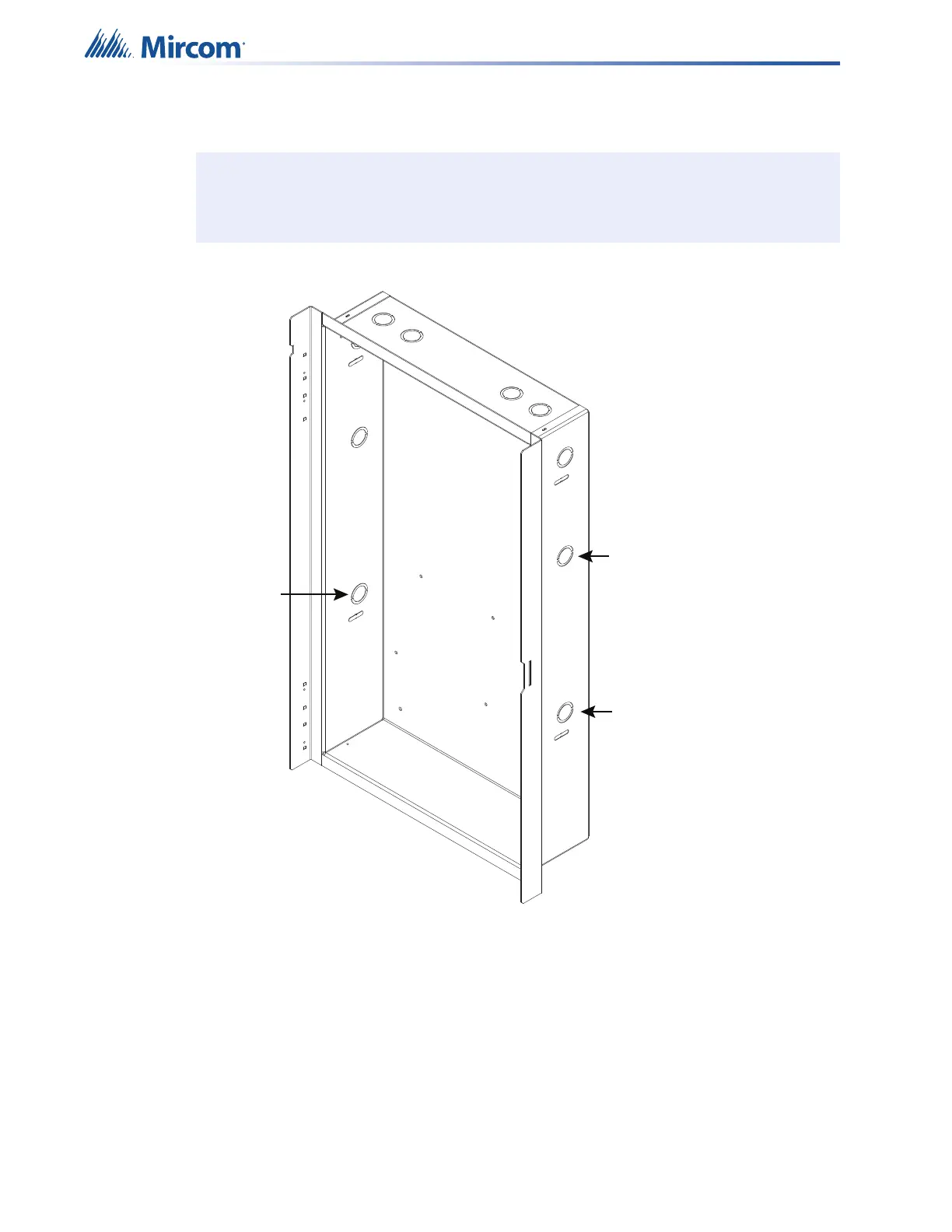

Figure 13 Wire Routing
Notes: All external connections are power limited except for the AC connections to the
transformer. Transformer connections must be routed separately from all other
external connections using their own conduit.
i
This knockout is to be used
exclusively for TS-1 from
the Power Supply Board
This knockout is to be used
exclusively for AC Input
This knockout is to be
used exclusively for the
City Tie connection
All power limited wiring
shall be routed through
the remaining knockouts.
