63
7.4.1

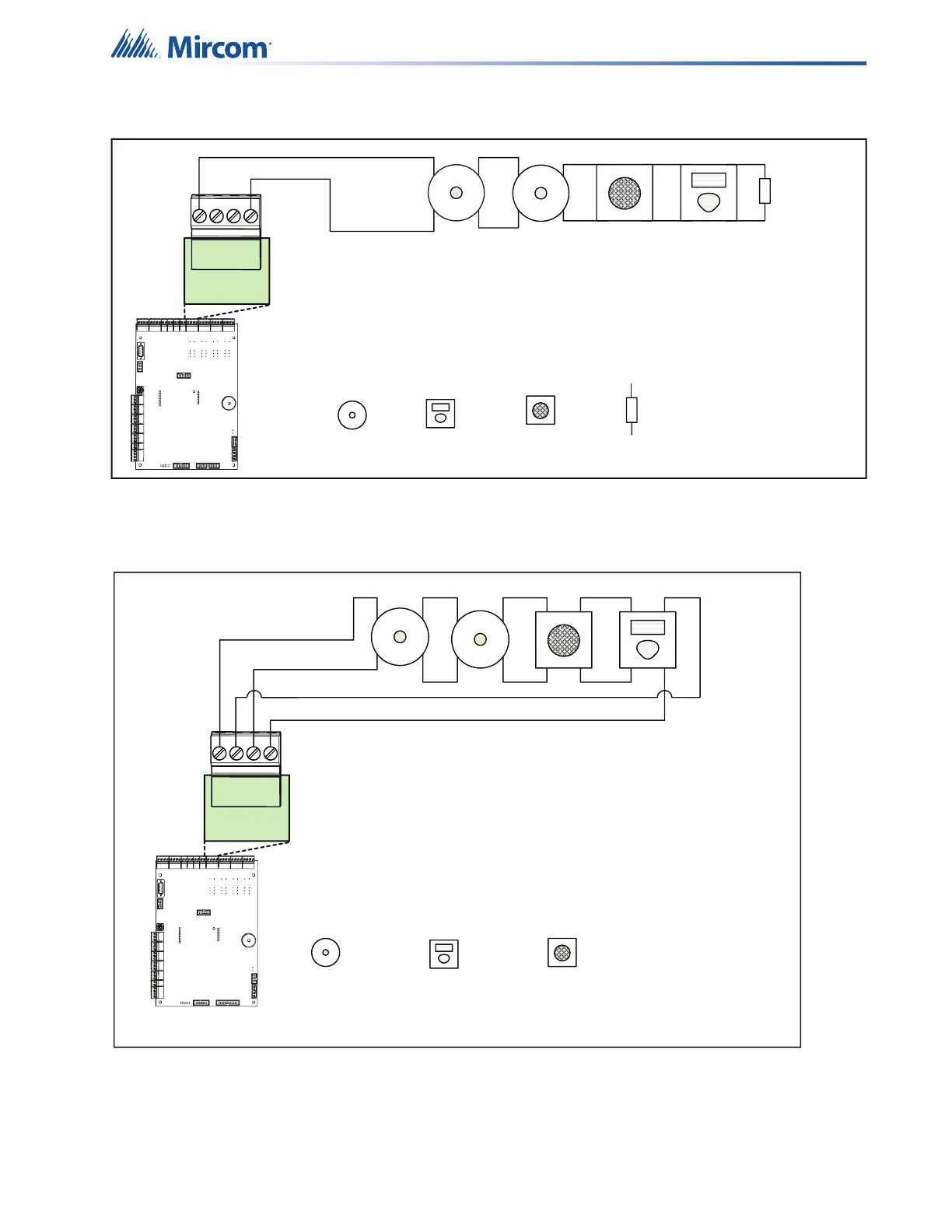

NAC Circuit – Class B Wiring
Figure 17
NAC Circuit – Class B Wiring
7.4.2
NAC Circuit – Class
A
Wiring
Figure 18
NAC Circuit – Class
A W
iring
NAC
CIRCUIT - 1
BELL
STROBE
EOL-392
HORN
NAC1
++
-
-
NAC CIRCUITS #2, #3
AND #4
ARE NOT SHOWN.
WIRE AS
SHOWN ABOVE.
BELL
STROBE
HORN
NAC
CIRCUIT 1
NAC1
++
-
-
NAC CIRCUITS #2, #3
AND #4
ARE NOT SHOWN.
WIRE AS
SHOWN ABOVE.
62
64
