7.5 TS1 SPECIAL APPLICATION Power Source
The TS1 SPECIAL APPLICATION power source is located on the bottom right side of the
power board (below the transformer and AC wiring).

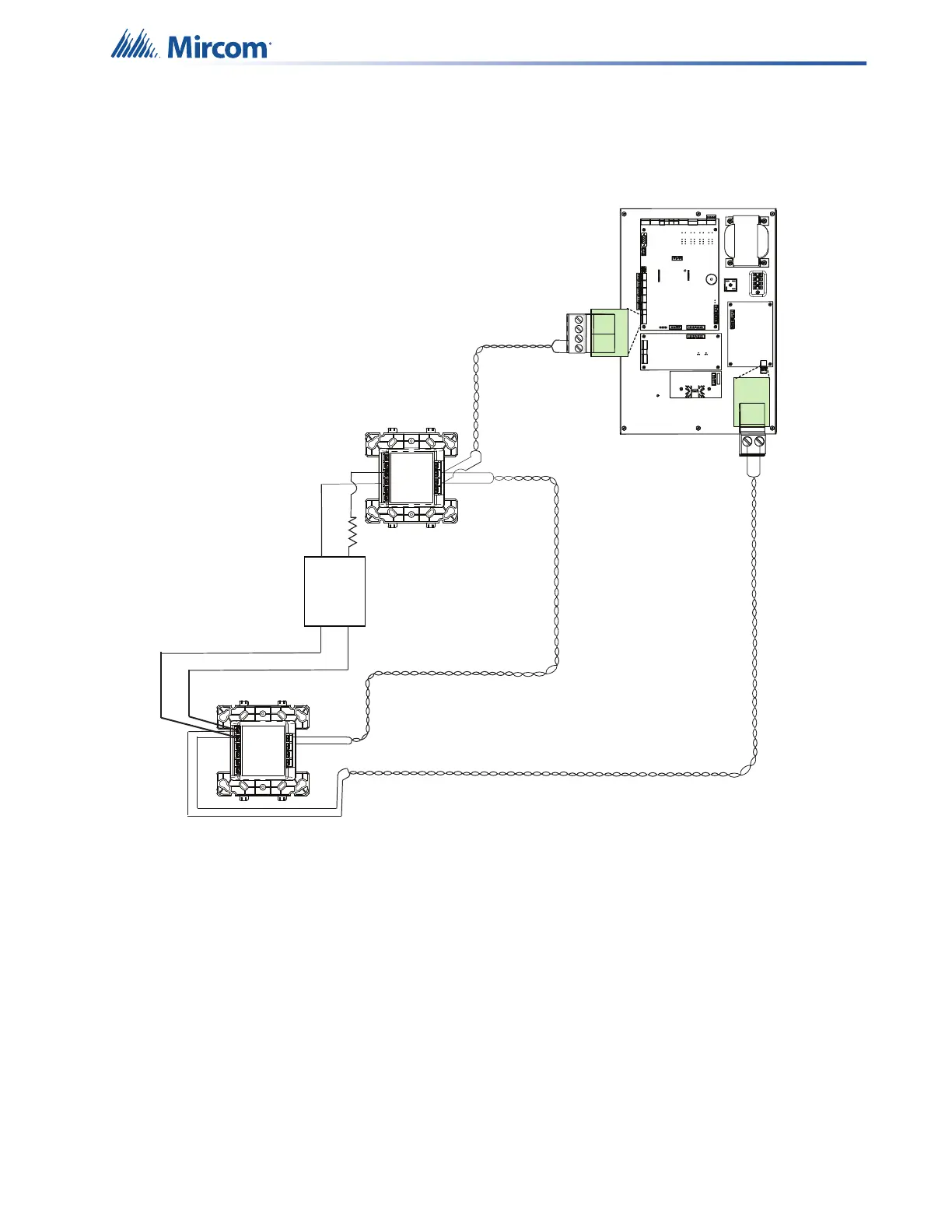

Figure 20 TS1 SPECIAL APPLICATION Power Source Wiring
(+)
(-)
MIX-4040
DUAL INPUT MODULE
EOLR-1A EOL
SUPERVSION
RELAY
REDBLACK
VIOLET VIOLET
(+
)
(-
)
MIX-4046
OUTPUT MODULE
(-)
(+)
EOLR
ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED
POWER LINE 24 VDC
TWISTED PAIRS RECOMMENDED
SPECIAL APPLICATION PER UL864,
POWER LIMITED PER NFPA 70.
LISTED FOR FIRE PROTECTION
WITH BATTERY BACKUP.
TS1
+-
A LOOP1
B
+
-
+
-
SLC LOOP WIRE
SLC+
SLC-
SLC+
SLC-
B
B
A
A
−
−
+
+
SLC+
SLC-
SLC+
SLC-
B
B
A
A
−
−
+
/P
P
+
+
