CONNECTING AN ADSL LINE
The Broadband Module contains an on-board ADSL modem.
There are four different types of connection to an ADSL line. The service provider must
supply the information needed to configure the connection.
- PPPoA connection. This requires a User name and Password and values for VPI
(Virtual Path Identifier) and VCI (Virtual Channel Identifier).
- VPI and VCI values shown in this manual are for example purposes only. The values
for your service should be given by your DSL Service Provider.
- PPPoE connection. This requires a User name and Password and values for VPI and
VCI.
- DHCP. This is an RFC 1483 type connection; no username or password is used. The VPI
and VCI values are required as is information on the RFC 1483 mode, LLC bridged, LLC
routed, VCMux bridged or VCMux routed.
- Manual. This is an RFC 1483 type connection; no username or password is used. The
VPI and VCI values are required and information on the RFC 1483 mode, LLC bridged,
LLC routed, VCMux bridged or VCMux routed is needed. The service provider will also
supply the WAN address, Internet gateway address and the addresses for the primary
and secondary DNS servers.
Note
VPI and VCI values are given by your DSL Service Provider. Values shown
on screen shots are for example purposes only.

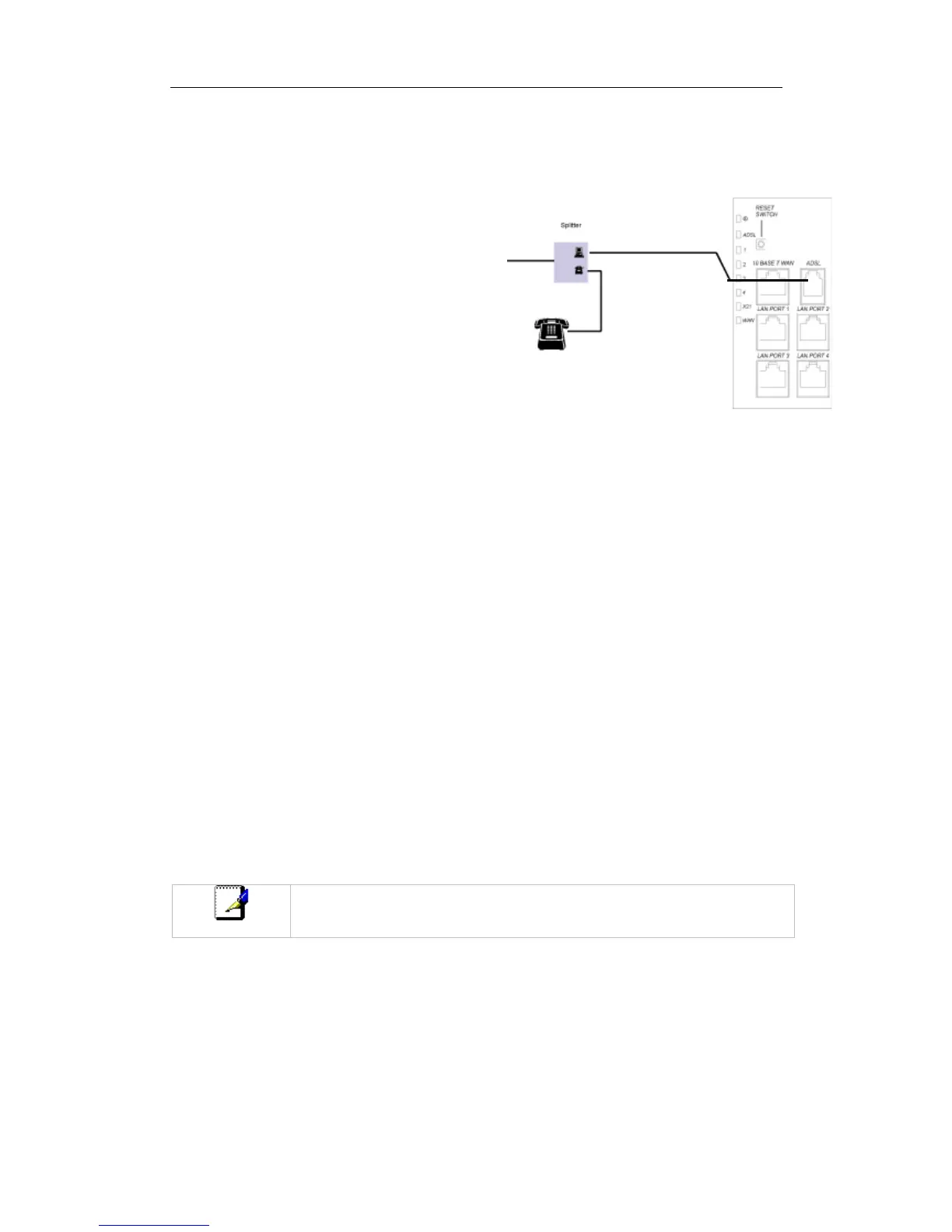

Connect the data port on the splitter to the
ADSL RJ-11 port on the MDF using the
purple cable supplied.
