Mitel 3000
Broadband Module Manual
20
WARNING
Once the IP address
is changed it is
necessary to release
and renew the PC
IP address in order
to reconnect to
the managemen
t pages. See page
93.

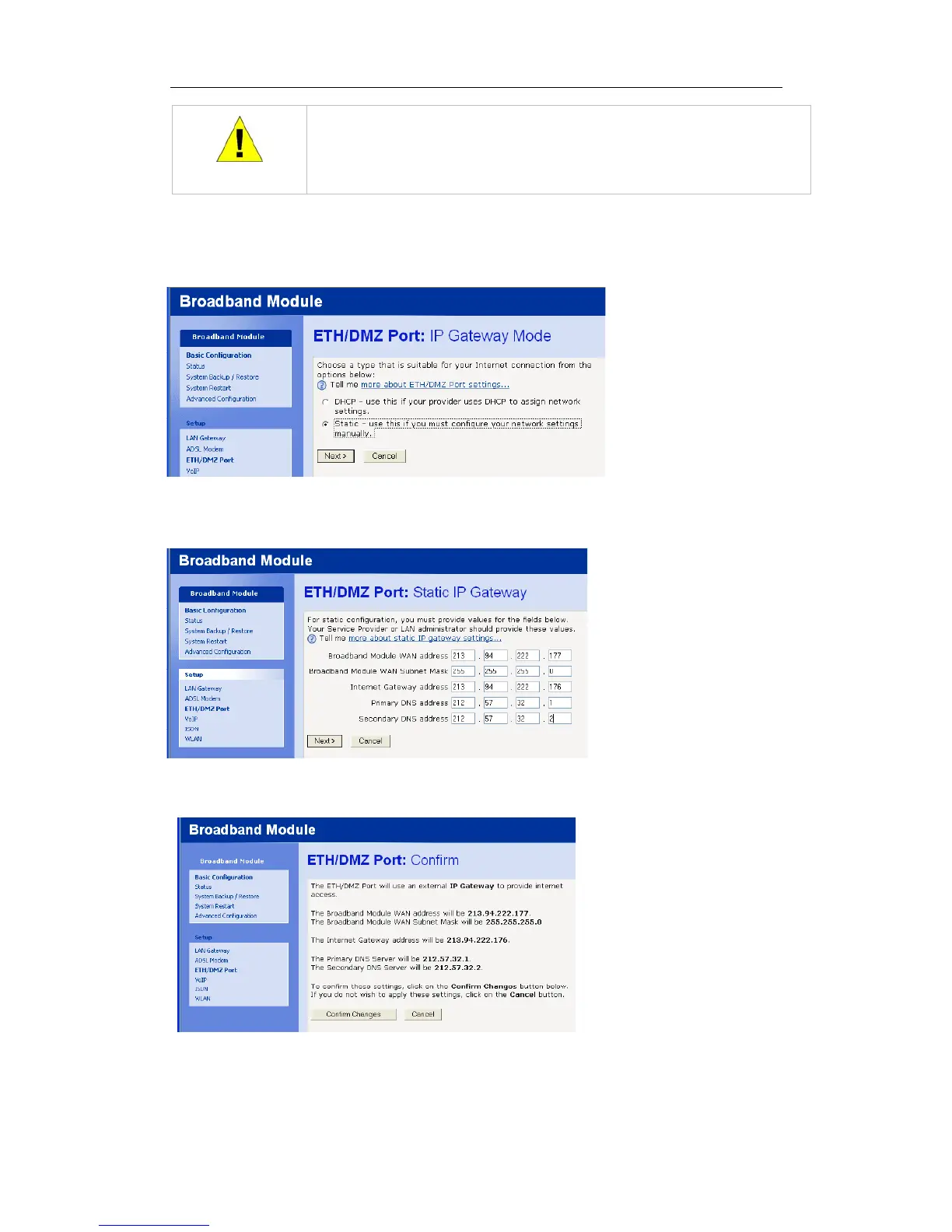

Static Address in IP Gateway mode
The Static IP addresses must be prov
ided by the network admini
strator.
Select
Static
from the ETH/DMZ Port: IP Gateway Mode screen.
Select
Next.
Enter the required
IP addresses
and
Subnet ma
sk
Click
Next >.
22
24
