Mitel 3000 User Manual

Mitel 3000
Broadband Module Manual
4

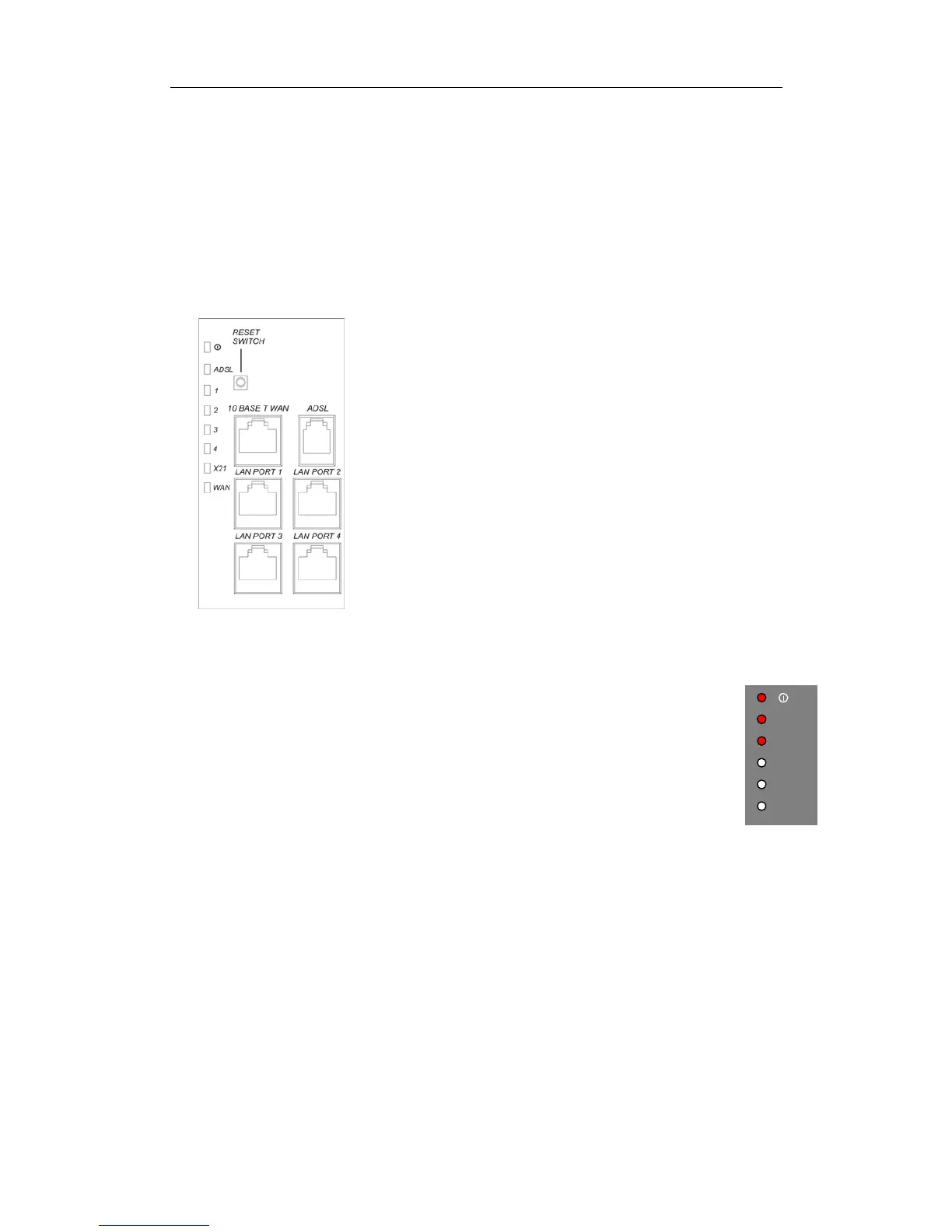

CONNECTIONS
The following connectors are located under the top cover.
• ADSL RJ-11.
• 10 Base-T WAN (ETH/DMZ Port) RJ-45.
• LAN Port 1 RJ-45.
• LAN Port 2 RJ-45.
• LAN Port 3 RJ-45.
• LAN Port 4 RJ-45.
Indicators
There are six indicators (LEDs) on the MDF cover.
• Heartbeat – steady to indicate normal processor activity.
• ADSL - a solid light indicates ADSL line synchronisation – flashes with activity.
• Port 1 - a solid light indicates an Ethernet connection – flashes with activity.
• Port 2 - a solid light indicates an Ethernet connection – flashes with activity.
• Port 3 - a solid light indicates an Ethernet connection – flashes with activity.
• Port 4 - a solid light indicates an Ethernet connection – flashes with activity.
The additional two indicators (LEDs) on the MDF indicate:-
• X21 - Not used – permanently lit.
• WAN (ETH/DMZ) - a solid light indicates an Ethernet connection.
Reset Button
The MDF is equipped with a white reset button. When this button is pressed, the module
resets.
A
DSL
Port 1
Port 2
Port 3
Port 4
