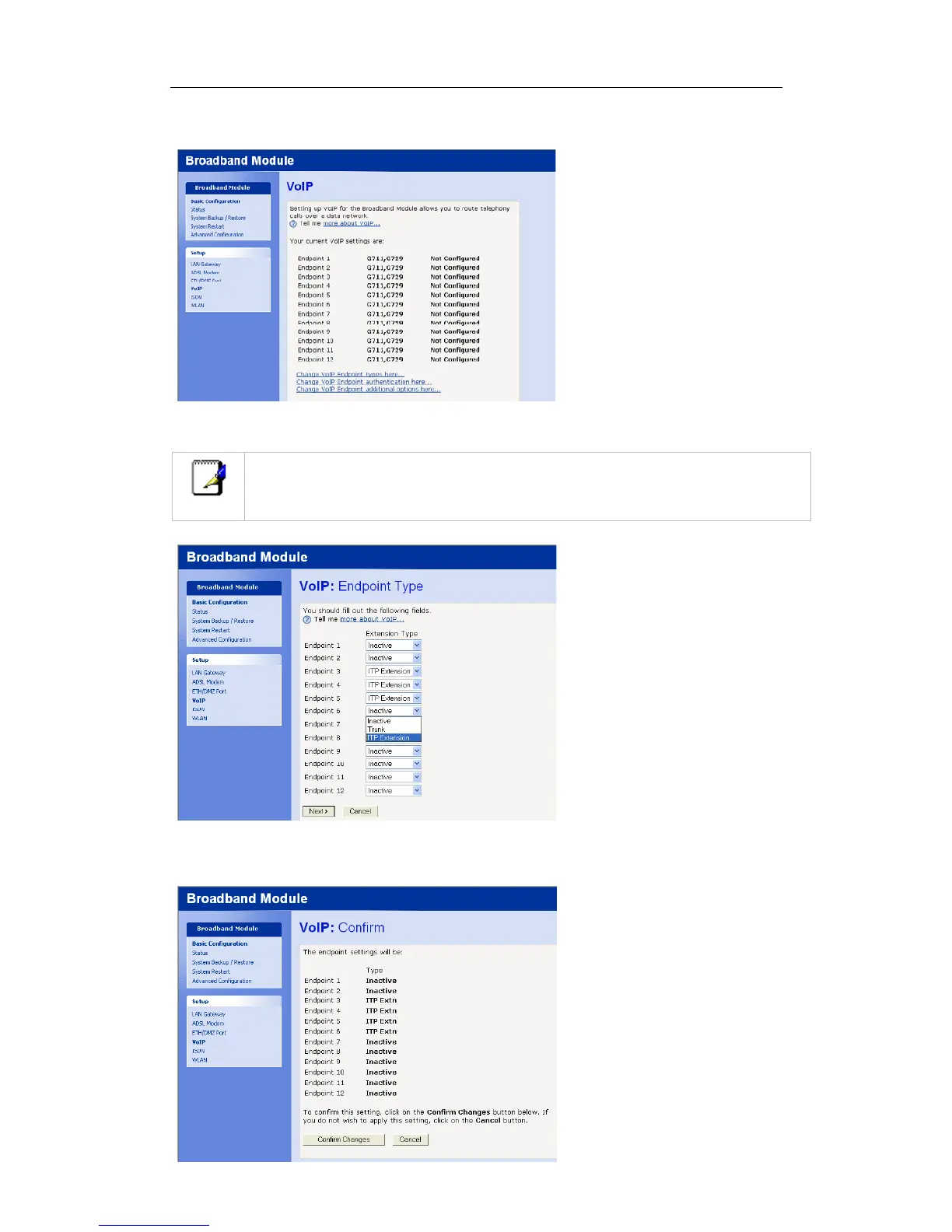

Mitel 3000
Broadband Module Manual
23
Select
VoIP
from the Setup menu.
Select
Change VoIP Endpoint types here…
Note
If the Endpoin
t screen is not shown it i
s because an IP addr
ess is not available t
o the
WAN Inter
face. Ensure the
broadband connec
tion is availabl
e and working
on the
Broadband Modu
le.
Select
IP Extension
for each endpoint to be configured as an extension.
Click
Next >.
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
Broadband Module Manual
4
Using this Document
4
Notational Conventions
4
Typographical Conventions
4
Special Messages
4
Introduction
5
Voice over Internet Protocol (Voip) Gateway
5
Wide Area Network (WAN) Connection
5
Connections
7
Indicators
7
Reset Button
7
Examples
8
Routes
9
Firewall
9
Connecting a PC to the LAN
10
Connecting to the Programming Interface
11
Connecting to the Programming Interface from a PC Connected to the LAN
11
Connecting to the Programming Interface from the MPS
12
Connecting an ADSL Line
13
Programming a Pppoa or Pppoe Connection
14
Programming a Dynamic Host Configuration Protocol (DHCP) Connection
16
Programming a Manual Connection
17
Connecting to an External DSL or Cable Modem
19
Connecting the External Modem / Data Network
19
Programming the Broadband Module for Connection to an External Modem
19
Changing the LAN Gateway Address
21
Static Address in IP Gateway Mode
23
Programming IP Extensions
25
Bandwidth Requirements
25
Setting up IP Extensions
25
External Router / Firewall
27
IP Extensions on the LAN Only
28
IP Extension Codec
29
IP Extension Numbering
30
Voip Trunks
31
Proxy Server Settings
31
Trunk Settings
32
Additional Endpoint Options
34
Setting up a Server on the Mitel 3000
36
Providing a Server on the DMZ
36
Assigning a Fixed IP Address to the Server
36
Port Filter
39
Global Address Pools
41
ETH/DMZ Port
41
Dmz
42
Isdn
43
Disabled
43
Backup
43
Enabled
44
Setting up the Wireless LAN (WLAN)
46
WLAN Range
46
Quick Setup to WLAN Without Security
46
WLAN Interface
49
Connecting Your PC to the Wireless Network
50
Setting up WLAN with Security
52
Security Options
52
64 Bit WEP Encryption
53
Address Authentication
54
WLAN Interface
56
First Time Settings
57
Status
59
System Backup/Restore
60
System Restart
62
Advanced Configuration
63
Admin Accounts
63
Firewall & Security
66
Security State
66
Security Level
67
Security Interfaces
69
Policies, Triggers, Intrusion Detection, Logging
69
Application Level Gateways
74
IP Routes
80
DHCP Server
81
ADSL Test
85
DSL Status
86
Diagnostics
88
Event Log
88
Ping
88
Flash Update
89
Reset to Defaults
89
Set up the PC to Automatically Obtain an IP Address
90
Setting up the Internet Explorer Browser
92
Appendix A
93
To Find out the MAC Address of a PC
96
Appendix B
96
To Release and Renew an IP Address on a PC
96
