Chapter 6
72
Connecting to the MELSEC-WS safety controller
How to add a USB profile:
Click on the Add USB profile button. The Create new profile dialog is opened.
Enter a name for the new profile
Select a CPU module to be conneted in "Connected Devices"
Click OK. The dialog is closed and the new profile is displayed in the list.
To activate the new profile, select it using the left mouse button and click on the
green arrow symbol on the right. From now on, the Setting and Monitoring Tool
will use this profile.

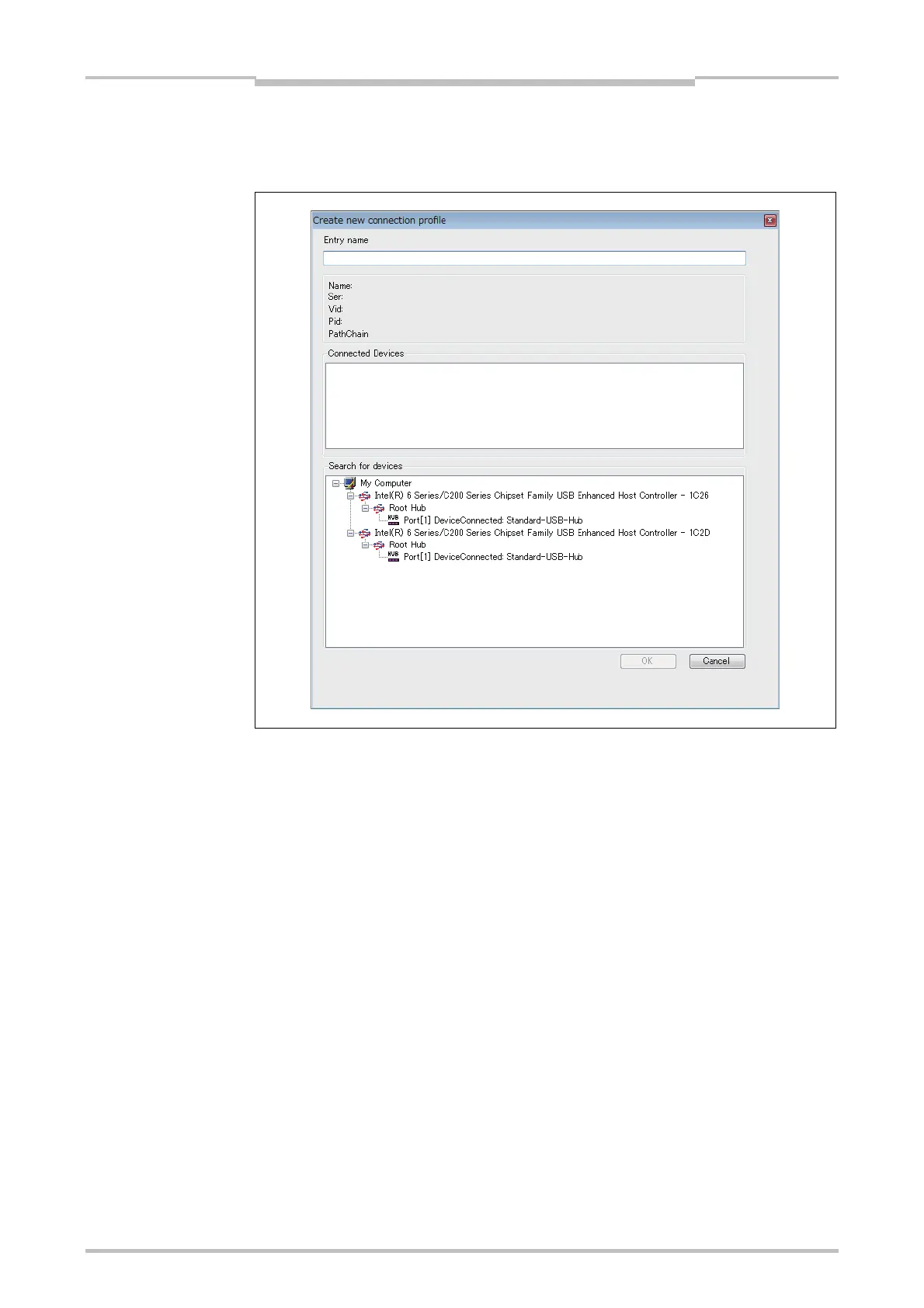

Figure 43:
Create new profile dialog
(USB)
