Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Front Case and Oil Pump
11A-10-5
"
C
A

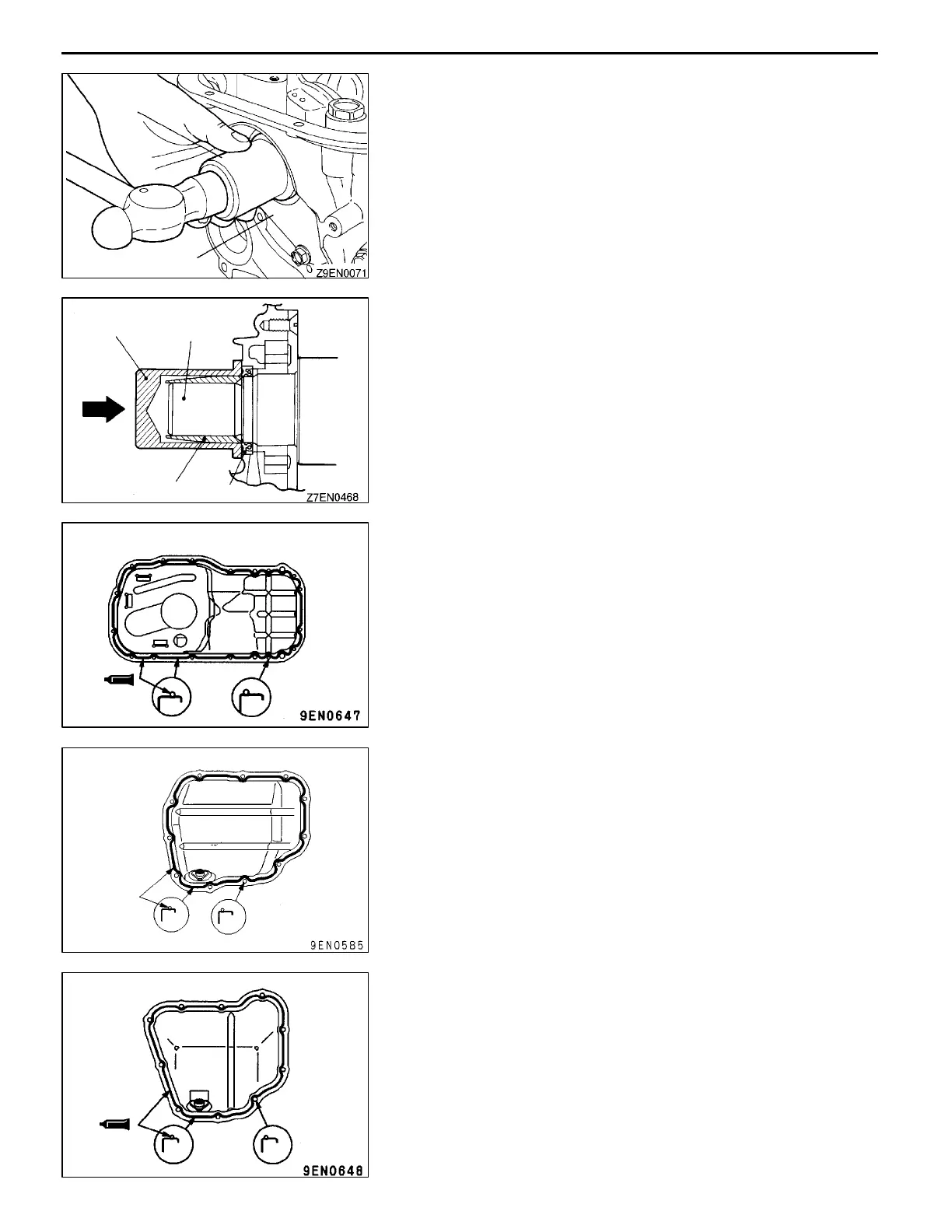

CRANKSHAFT FRONT OIL SEAL INSTALLATION
Using the special tool, knock the oil seal into the oil pump
case.
"
D
A
OIL PAN/UPPER OIL PAN/LOWER OIL PAN
INSTALLATION
(1) Remove all the remaining gasket from the mating surfaces
using a scraper or a wire brush.
(2) Apply a 4 mm diameter bead of sealant to the oil pan
flange.
See “Form-In-Place Gasket” in “SPECIFICATIONS”.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
(3) Install the oil pan within 15 minutes after applying the
sealant.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
MD998717
Oil pump case
MD998717
Crankshaft
Guide
Oil seal
OILPAN,UPPEROIL PAN
Bolt hole
portion
Groove
portion
LOWER OIL PAN <SOHC, DOHC, DOHC-GDI
for CARISMA>
Bolt hole
portion
4mm
diameter
bead
sealant
Groove portion
Bolt hole
portion
Groove
portion
LOWER OIL PAN <DOHC-GDI for PAJERO io>
