4G9 ENGINE (E-W) -
Front Case and Oil Pump
11A-10-6

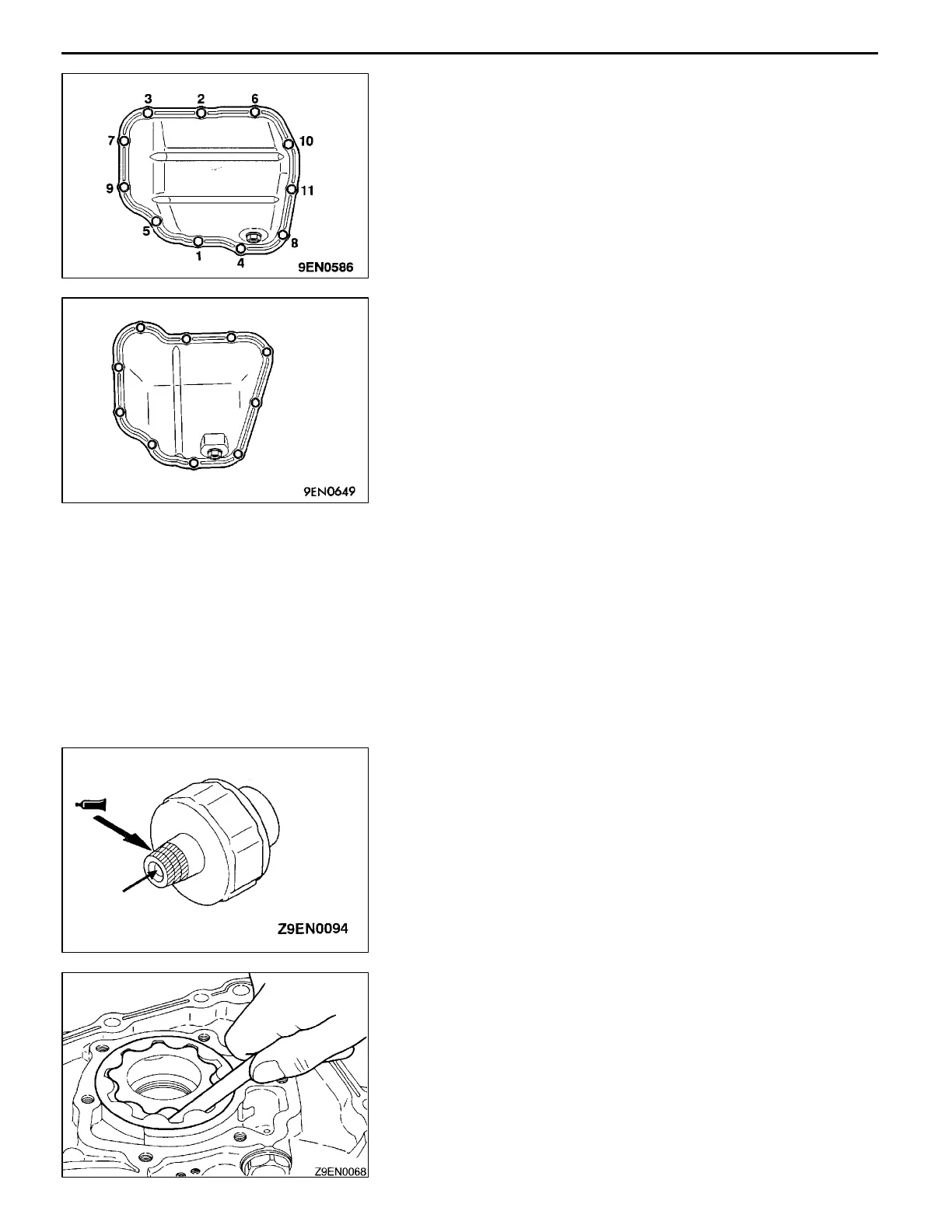

(4) Tighten the lower oil pan mounting bolts in the sequence
shown in the illustration.
"
E
A
OIL FILTER INSTALLATION
(1) Clean th e filter installation surface of the cylinder block.
(2) Apply engine oil to the O-ring of the oil filter.
(3) Screw in the oil filter until its O-ring comes in contact
with the base. Then tighten on e more turn.
"
F
A
SEALANT APPLICATION TO OIL PRESSURE
SWITCH
(1) Apply sealant to the threads of the switch.
Specified sealant:
3M ATD Part No. 8660 or equivalent
Caution
Use care not to allow the sealant to plug the oil
passage.
INSPECTION
11300730026
OIL PUMP
(1) Check the tip clearance.
Standard value: 0.06 - 0.18 mm
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Added
<SOHC, DOHC, DOHC-GDI for CARISMA>
<DOHC-GDI for PAJERO io>
Oil passage
