4G9 ENGINE (E-W) -
Alternator and Ignition System
11A-3-2

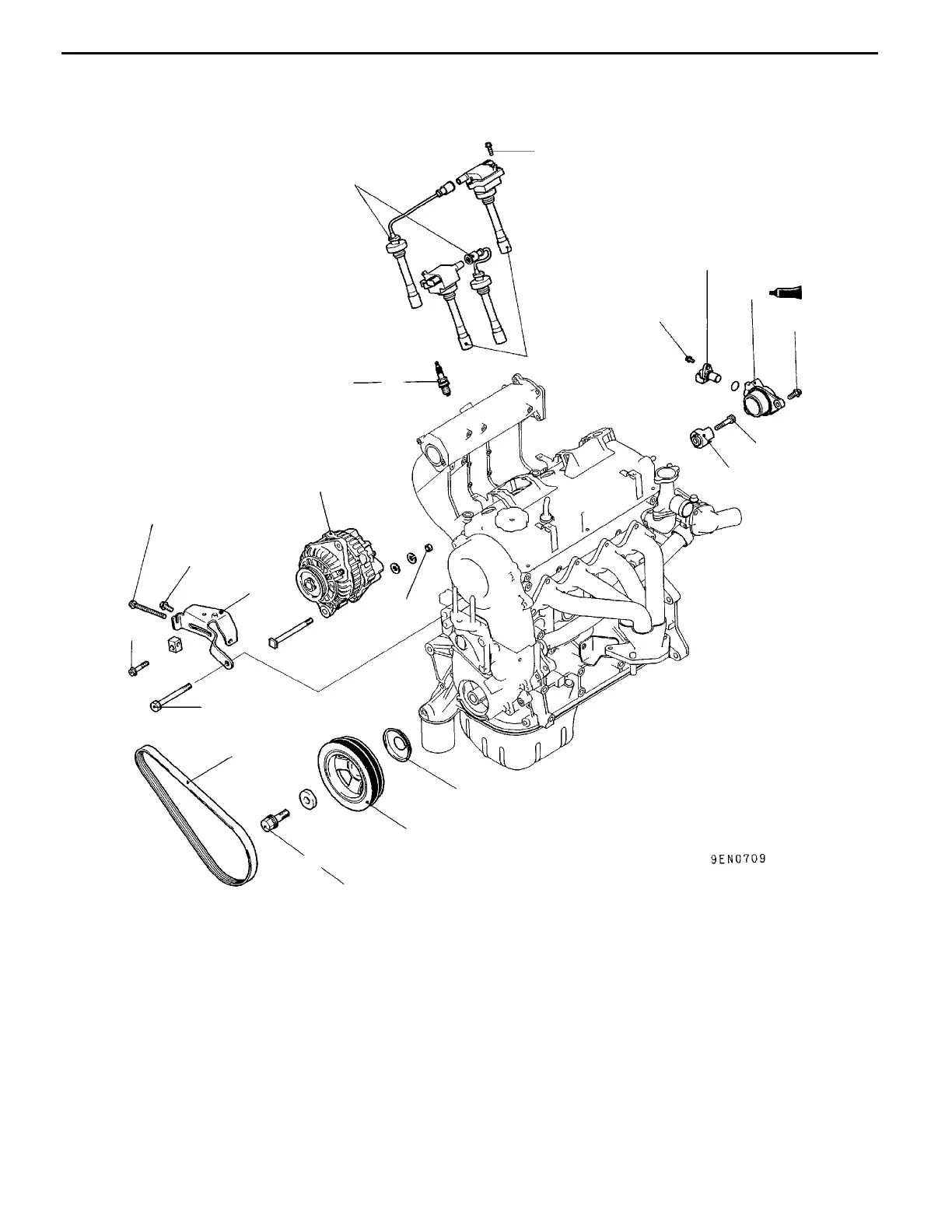

REMOVAL AND INSTALLATION <SOHC for other than PAJERO io>
(Engines without distributor)
10 Nm
23 Nm
25 Nm
13 Nm
23 Nm
49 Nm
44 Nm
181 Nm
3
2
8
7
9Nm
10
4
1
5
6
10 Nm
21 Nm
9
12
11
Removal steps
1. Drive belt*
2. Alternator
3. Alternator brace
A
A
""
B
A 4. Crankshaft bolt
5. Crankshaft pulley
6. Front flange
7. Spark plug cable
8. Ignition coil
9. Spark plug
10. Cam position sensor
"
A
A 11. Cam position sensor support
12. Cam position sensing cylinder
NOTE:
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
