Mitsubishi 4G9 series User Manual

4G9 ENGINE (E-W) -
Alternator and Ignition System
11A-3-5

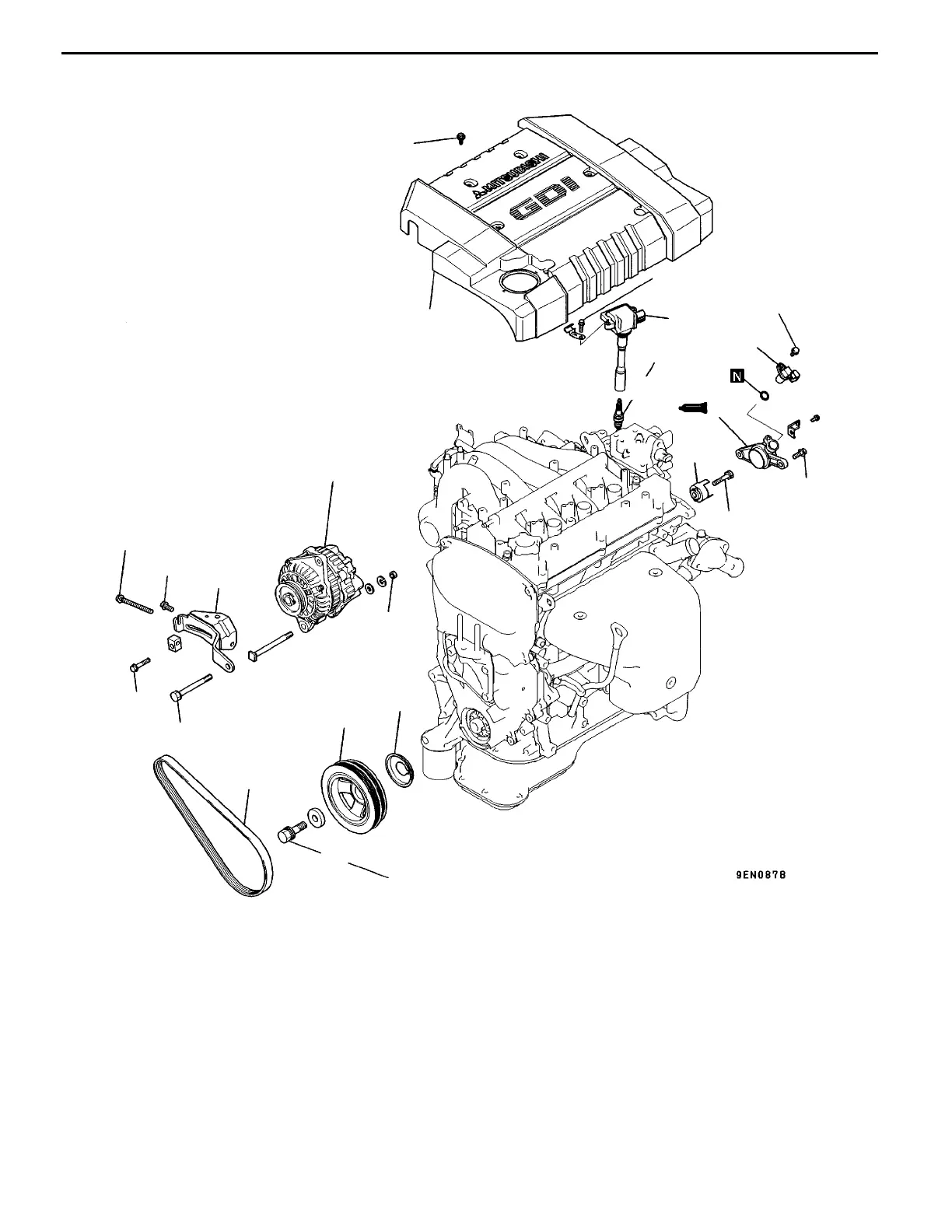

REMOVAL AND INSTALLATION <DOHC-GDI for CARISMA>
10 Nm
23 Nm
9Nm
23 Nm
49 Nm
44 Nm
181 Nm
3
2
87
10
4
1
5
6
2.9 Nm
10 Nm
25 Nm
21 Nm
11
12
13 Nm
9
Removal steps
1. Drive belt*
2. Alternator
3. Alternator brace
A
A
""
B
A 4. Crankshaft bolt
5. Crankshaft pulley
6. Front flange
7. Engine cover
8. Ignition coil
9. Spark plug
10. Cam position sensor
"
A
A 11. Cam position sensor support
12. Cam position sensing cylinder
NOTE:
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
