4G9 ENGINE (E-W) -
Alternator and Ignition System
11A-3-4
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation Added

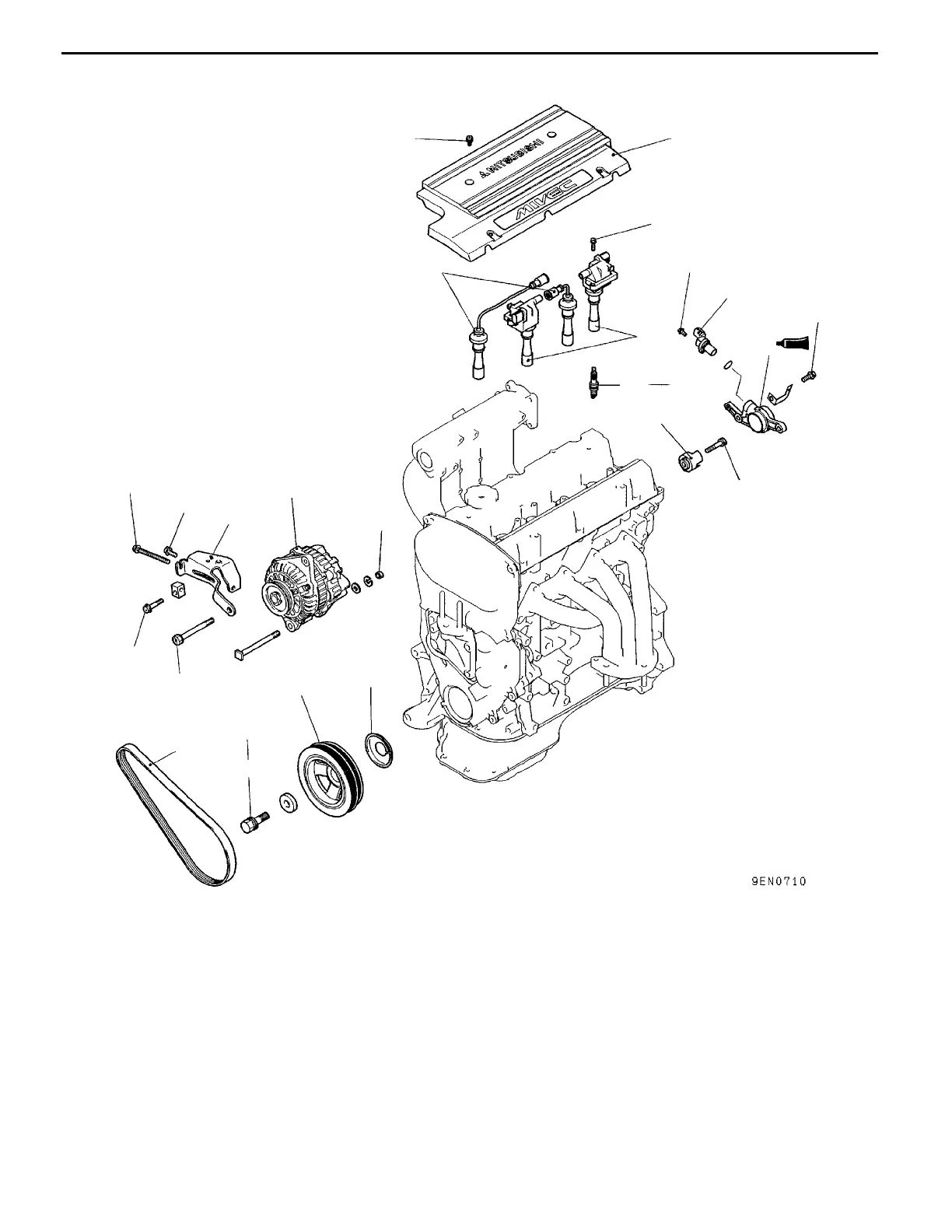

REMOVAL AND INSTALLATION <DOHC-MIVEC>
10 Nm
23 Nm
13 Nm
23 Nm
49 Nm
44 Nm
181 Nm
3
2
8
7
9
10
4
1
5
6
3Nm
10 Nm
25 Nm
21 Nm
11
9Nm
13
12
Removal steps
1. Drive belt*
2. Alternator
3. Alternator brace
A
A
""
B
A
4. Crankshaft bolt
5. Crankshaft pulley
6. Front flange
7. Center cover
8. Spark plug cable
9. Ignition coil
10. Spark plug
11. Cam position sensor
"
A
A
12. Cam position sensor support
13. Cam position sensing cylinder
NOTE:
*: For details of adjustment, refer to the relevant model’s
chassis workshop manual.
