Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Water Pump and Water Hose
11A-7-4

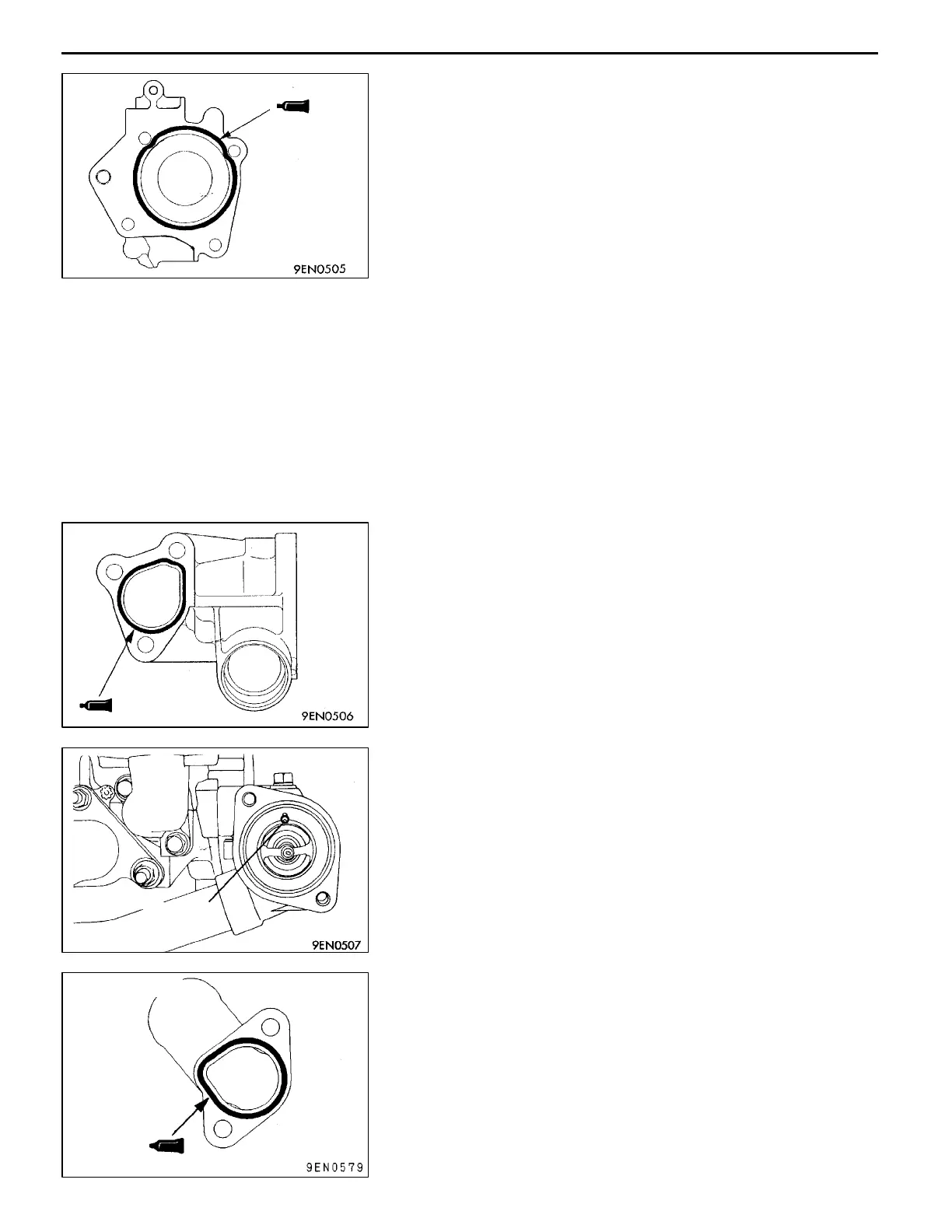

INSTALLATION SERVICE POINTS
"
A
A
WATER PUMP INSTALLATION
(1) Apply 3 mm diameter of Form-In-Place Gasket (FIPG)
to the location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No.MD970389 or
equivalent
"
B
A
WATER INLET PIPE <SOHC, DOHC> / WATER
PIPE <DOHC-GDI for PAJERO io> / O-RING
INSTALLATION
(1) Replace the O-ring of the water inlet pipe <SOHC, DOHC>
or water pipe <DOHC-GDI for PAJERO io>, and then
apply water to the O-ring to make installation easy.
Caution
1. Never apply any oil or grease to the O-ring.
2. Secure the water pipe after the thermostat case
has been installed.
"
C
A
THERMOSTAT CASE INSTALLATION
(1) Apply 3 mm diameter of Form-In-Place Gasket (FIPG)
to the location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No.MD970389 or
equivalent
"
D
A
THERMOSTAT INSTALLATION
(1) Install the thermostat so that the jiggle valve is facing
straight up.
"
E
A
WATER OUTLET FITTING INSTALLATION
(1) Apply 3 mm diameter of Form-In-Place Gasket (FIPG)
to the location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No.MD970389 or
equivalent
PWEE9502-E
E
Dec. 1998Mitsubishi Motors Corporation Revised
Jiggle valve
<SOHC, DOHC>
