4G9 ENGINE (E-W) -
Rocker Cover and Camshafts (MIVEC)
11A-8a-2
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation Added

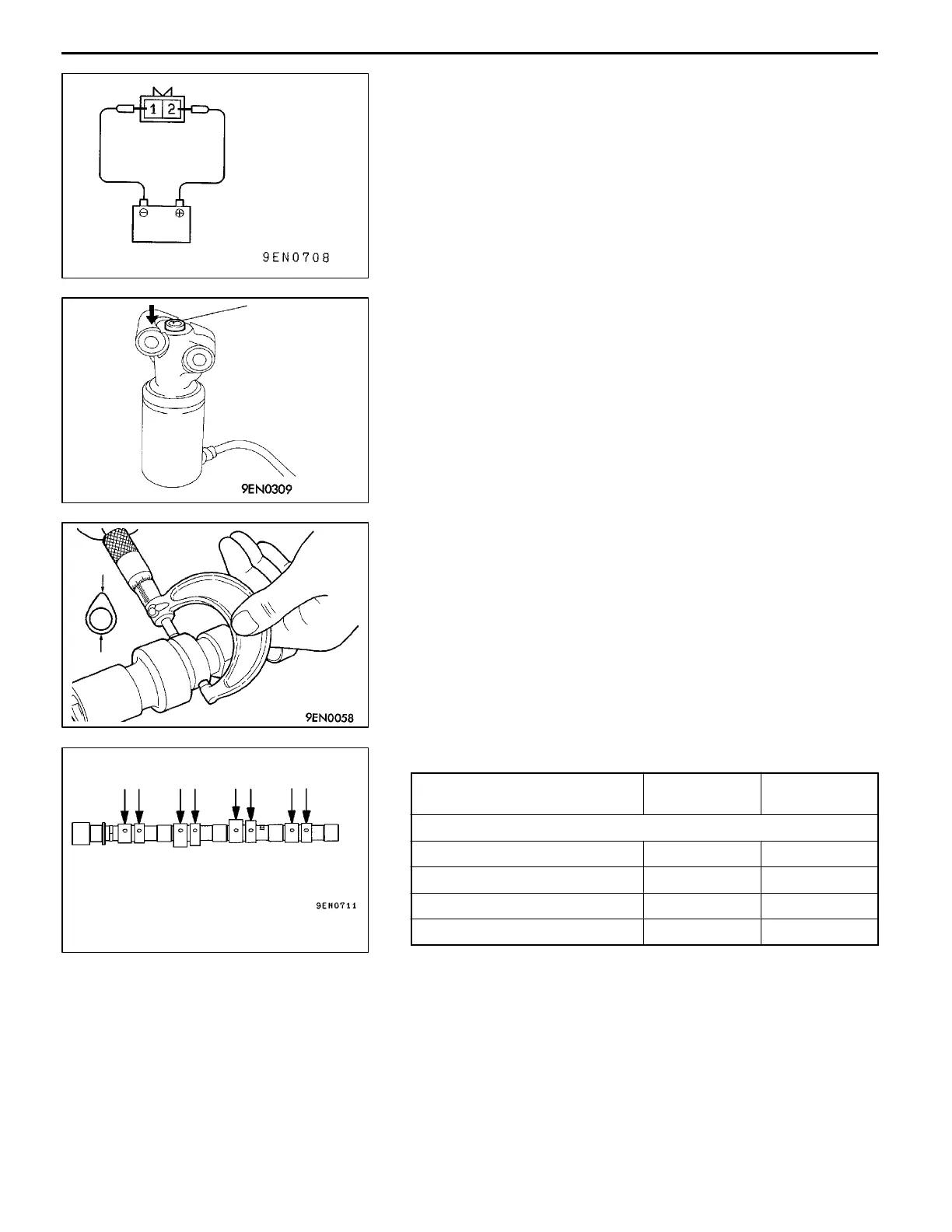

INSPECTION
1. OIL CONTROL VALVE
(1) Connect a 12VDC power supply between terminals (1)
and (2) of the oil control valve and check if the valve
operates smoothly.
2. CAMSHAFT
(1) Measure the cam heights. If the specified limit is
exceeded, replace the camshaft.
Unit: mm
Standard
value
Limit
4G92 DOHC- MIVEC
Intake A 36.41 35.91
Intake B 33.58 33.08
Exhaust A 35.83 35.33
Exhaust B 34.24 33.74
12 V
Valve
ABAB AB AB
