Mitsubishi 4G9 series

4G9 ENGINE (E-W) -
Rocker Cover and Camshafts (MIVEC)
11A-8a-3
PWEE9502-A
E
Nov. 1995Mitsubishi Motors Corporation
Added

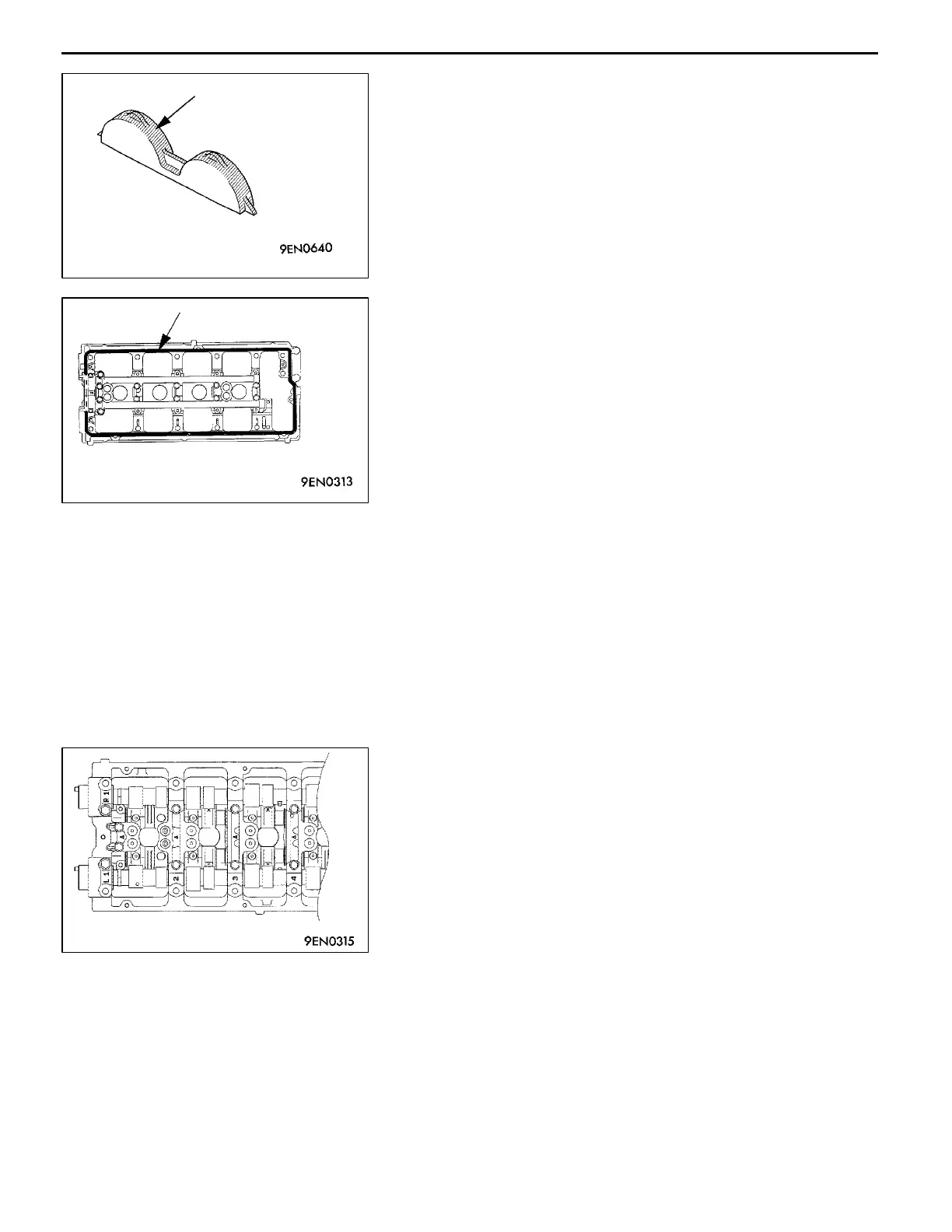

INSTALLATION SERVICE POINTS
"
A
A
SEMI-CIRCULAR PACKING INSTALLATION
(1) Apply th e specified sealant to t h e area shown.
Specified sealant:
3M ATD Part No. 8660 or equivalent.
"
B
A
CAMSHAFT HOLDER ASSEMBLY INSTALLATION
(1) Apply th e specified sealant to t h e area shown.
Specified sealant:
3M ATD Part No. 8660 or equivalent
"
C
A
CAMSHAFT INSTALLATION
(1) Ensure that the intake-side and exhaust-side camshafts
are not reversed. The exhaust-side camshaft is longer
and has a slot in its rear end.
(2) Set the No. 1 piston at the top dead center and install
the camshafts with their cams for No. 1 cylinder directed
upward so that the No. 1 cylinder becomes the top dead
center on the compression stroke.
"
D
A
CAMSHAFT BEARING CAP / CAMSHAFT
HOLDER INSTALLATION
(1) Confirm the identification mark on each bearing cap to
install the cap in the correct position.
Identification mark
L1: Front bearing for exhaust camshaft
R1: Front bearing for intake camshaft
Sealant
Sealant
