FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
4 Devices in Detail
4.10 Extension Register [R] and Extension File Register [ER]
3 Setting the data

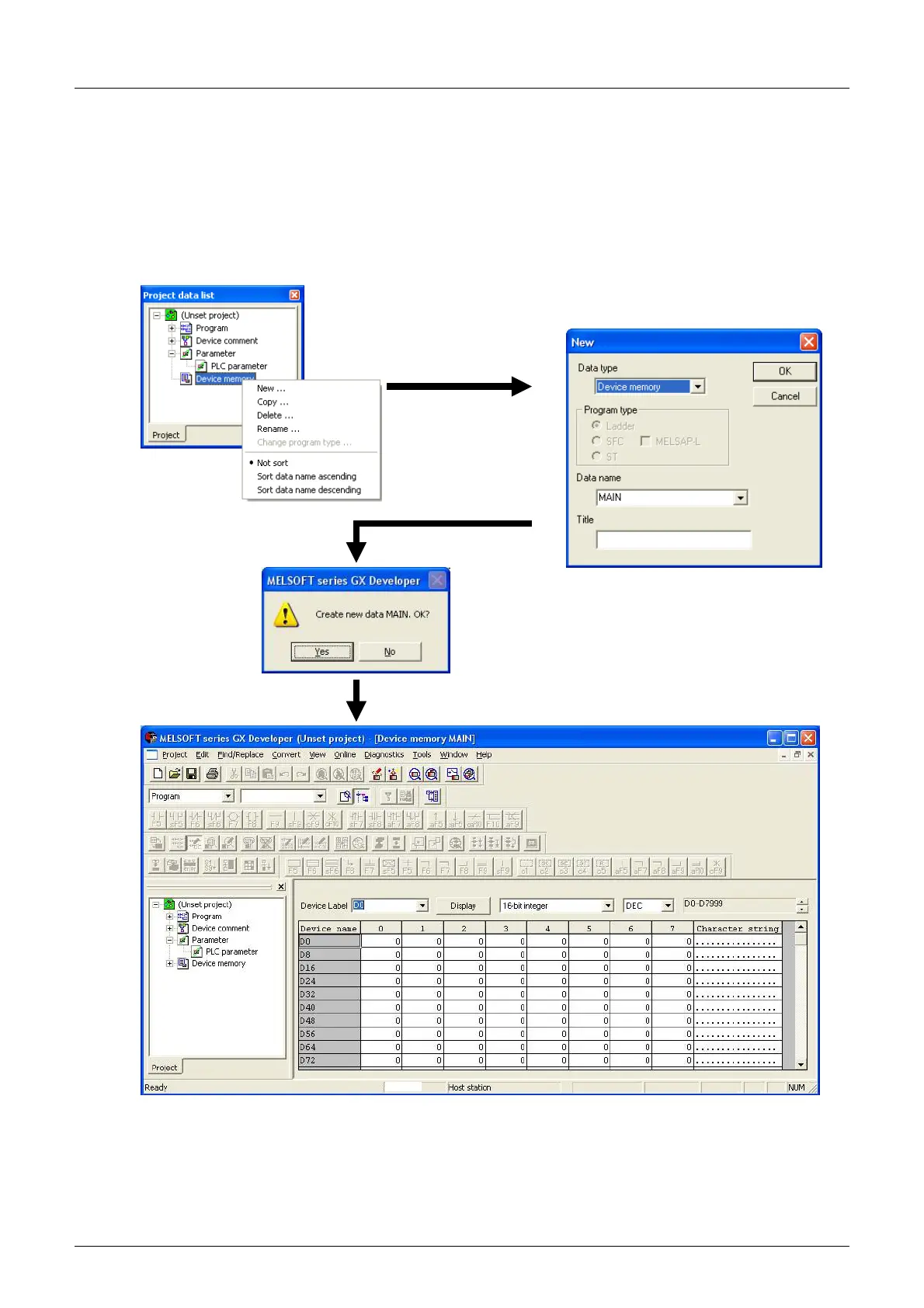

1. Right-click [Device memory] in the project data list to open the submenu.
2. Click [New] on the submenu to display "New" dialog box.
3. Click the [OK] button to display the dialog box for confirmation.
4. Click the [Yes] button.
*1. For Ver. 8.18U to 8.24A of GX Developer, the PLC type is FX3UC.
