FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
11 Rotation and Shift Operation – FNC 30 to FNC 39
11. Rotation and Shift Operation – FNC 30 to FNC 39
FNC 30 to FNC 39 provide instructions for rotating and shifting bit data and word data in specified directions.

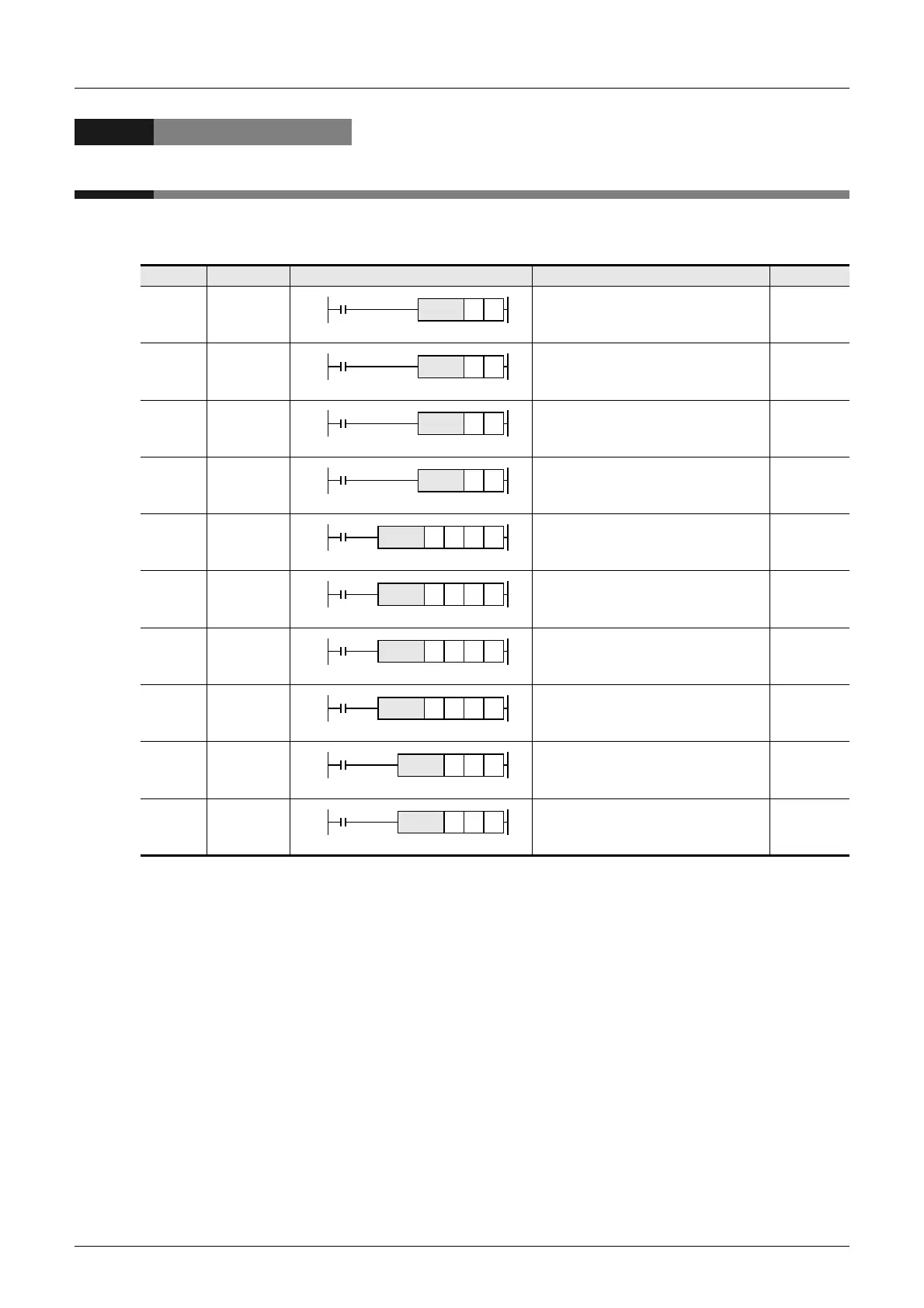

FNC No. Mnemonic Symbol Function Reference
30 ROR Rotation Right Section 11.1
31 ROL Rotation Left Section 11.2
32 RCR Rotation Right with Carry Section 11.3
33 RCL Rotation Left with Carry Section 11.4
34 SFTR Bit Shift Right Section 11.5
35 SFTL Bit Shift Left Section 11.6
36 WSFR Word Shift Right Section 11.7
37 WSFL Word Shift Left Section 11.8
38 SFWR Shift write [FIFO/FILO control] Section 11.9
39 SFRD Shift read [FIFO control]
Section
11.10
nDROR
nDROL
nDRCR
nDRCL
n2n1DSSFTR
n2n1DSSFTL
n2n1DS
WSFR
n2n1DSWSFL
n
SFWR
DS
nSFRD DS

Mitsubishi FX3U Series Specifications

General

Model	FX3U Series
Program Memory	64k steps
Execution Speed	0.065 μs/basic instruction
Type	PLC (Programmable Logic Controller)
Power Supply	100-240V AC
I/O Points	Up to 384
Communication	USB
Expansion	Supported via expansion modules
High-Speed Counters	Up to 6 channels
Analog Input/Output	Available via expansion modules
Temperature Range	0 to 55°C
Programming Language	Ladder Logic, Structured Text
Built-in Functions	PID control
Humidity	5 to 95% (non-condensing)
