FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
33 Extension File Register Control – FNC290 to FNC299

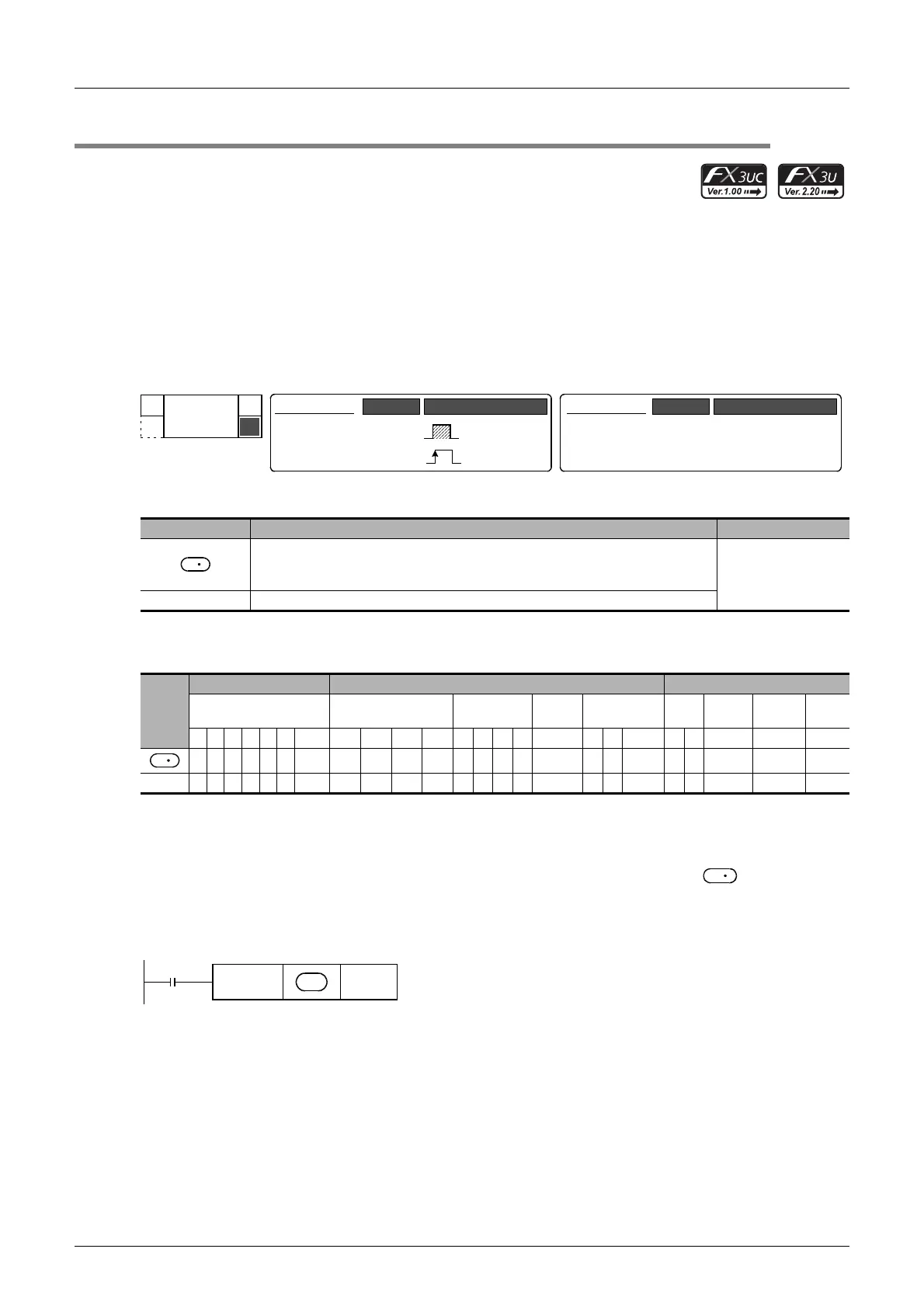

33.3 FNC292 – INITR / Initialize R and ER
33.3 FNC292 – INITR / Initialize R and ER
Outline
This instruction initializes extension registers (R) to “HFFFF” (<K-1>) in the RAM built into the PLC and extension file
registers in a memory cassette (flash memory) before data logging using the LOGR (FNC293) instruction.
In FX3UC PLCs before Ver. 1.30, use this instruction to initialize extension file registers (ER) before writing data to
them using SAVER (FNC291) instruction.
In FX3UC PLCs Ver. 1.30 or later and FX3U PLCs, the INITER (FNC295) instruction is also provided to initialize only
extension file registers (ER) to "HFFFF" (<K-1>) in a memory cassette (flash memory) in units of sector.
→ For the SAVER (FNC291) instruction, refer to Section 33.2.
→ For the LOGR (FNC293) instruction, refer to Section 33.4.
→ For the INITER (FNC295) instruction, refer to Section 33.6.
1. Instruction format
2. Set data
*1. When a memory cassette is not used, extension file registers (ER) are not initialized.
3. Applicable devices
Explanation of function and operation
1. 16-bit operation (INITR and INITRP)
“n” sectors of extension registers in the PLC’s built-in RAM starting from the one specified by and “n” sectors of
extension file registers in a memory cassette (flash memory) having the same device numbers are initialized to
“HFFFF” (<K-1>).
Initialization is executed in sector units.
Operand Type Description Data Type
Head device number of extension register and extension file register
*1
sector to be
initialized
It is possible to specify only the head device number in a sector of extension registers.
16-bit binary
n Number of sectors of extension registers and extension file registers to be initialized
Oper-
and
Type
Bit Devices Word Devices Others
System User Digit Specification System User
Special
Unit
Index
Con-
stant
Real
Number
Charac-
ter String
Pointer
XYMTCSD  .b KnX KnY KnM KnS T C D R U\G V Z Modify K H E "  "P
33
n 33
P
FNC 292
INITR
Mnemonic Operation Condition
16-bit Instruction
5 steps
INITR
Mnemonic Operation Condition
Continuous
Operation
32-bit Instruction
⎯
⎯
INITRP
Pulse (Single)
Operation
S
S
S
FNC292
INITRP
S  n
Command
input
