FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
9 Move and Compare – FNC 10 to FNC 19
9. Move and Compare – FNC 10 to FNC 19

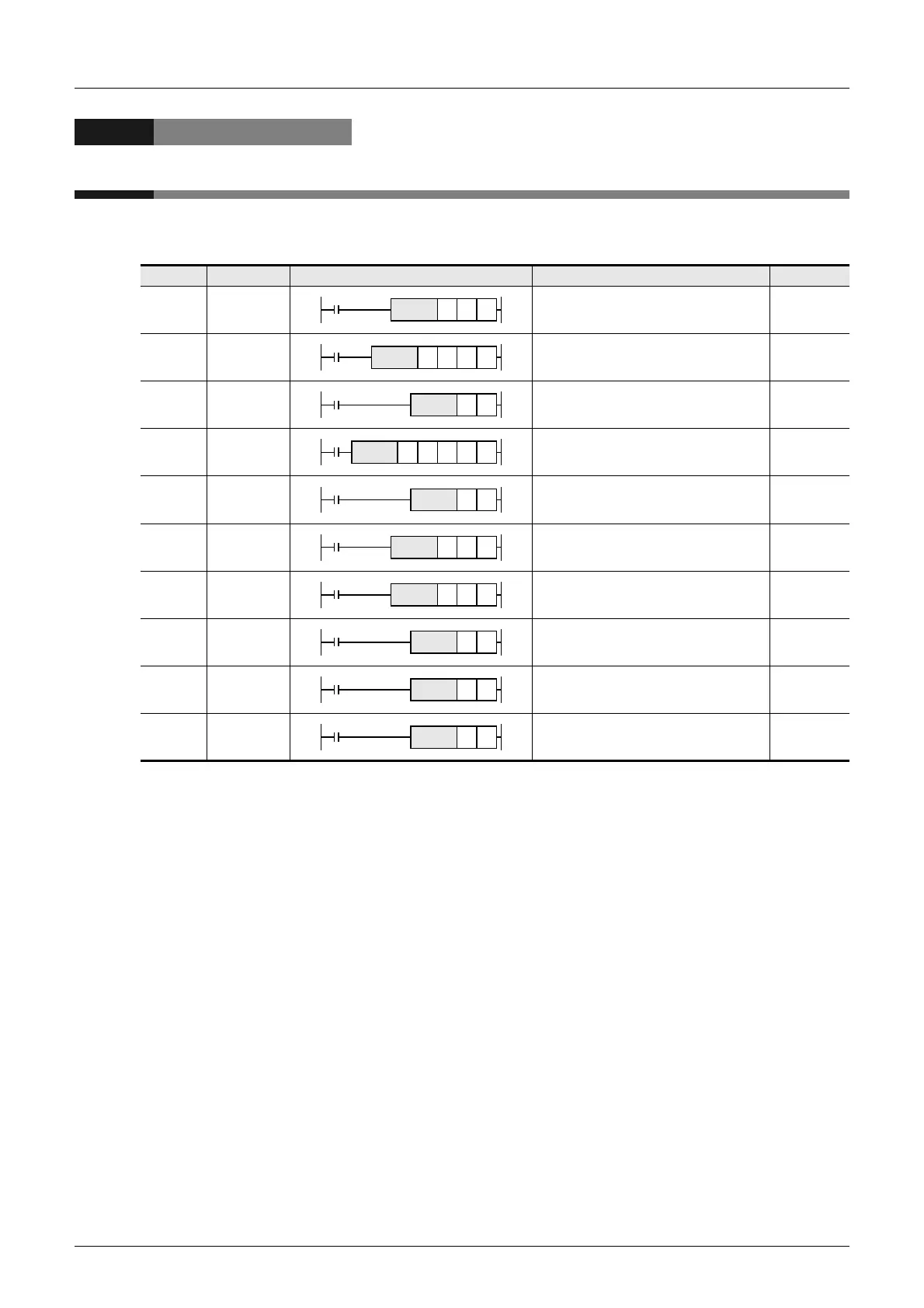

FNC 10 to FNC 19 provide fundamental data processing instructions such as data transfer and data comparison which
are regarded as most important in applied instructions.
FNC No. Mnemonic Symbol Function Reference
10 CMP Compare Section 9.1
11 ZCP Zone Compare Section 9.2
12 MOV Move Section 9.3
13 SMOV Shift Move Section 9.4
14 CML Complement Section 9.5
15 BMOV Block Move Section 9.6
16 FMOV Fill Move Section 9.7
17 XCH Exchange Section 9.8
18 BCD Conversion to Binary Coded Decimal Section 9.9
19 BIN Conversion to Binary Section 9.10
CMP S1 S2 D
ZCP S2 S DS1
DSMOV
SMOV S D nm1 m2
DSCML
nBMOV S D
nFMOV S D
D2D1XCH
DSBCD
DSBIN
