FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
21 Real Time Clock Control – FNC160 to FNC169
21.8 FNC167 – TWR / Set RTC data
21
FNC160-FNC169 Real Time Clock Control
22
FNC170-FNC179 External Device
23
FNC180 Alternate Instructions
24
FNC181-FNC189 Others
25
FNC190-FNC199 Block Data Operation
26
FNC200-FNC209 Character String Control
27
FNC210-FNC219 Data Operation 3
28
FNC220-FNC249 Data Comparison
29
FNC250-FNC269 Data Table Operation
30
FNC270-FNC275 Ex-Device Inverter Comms

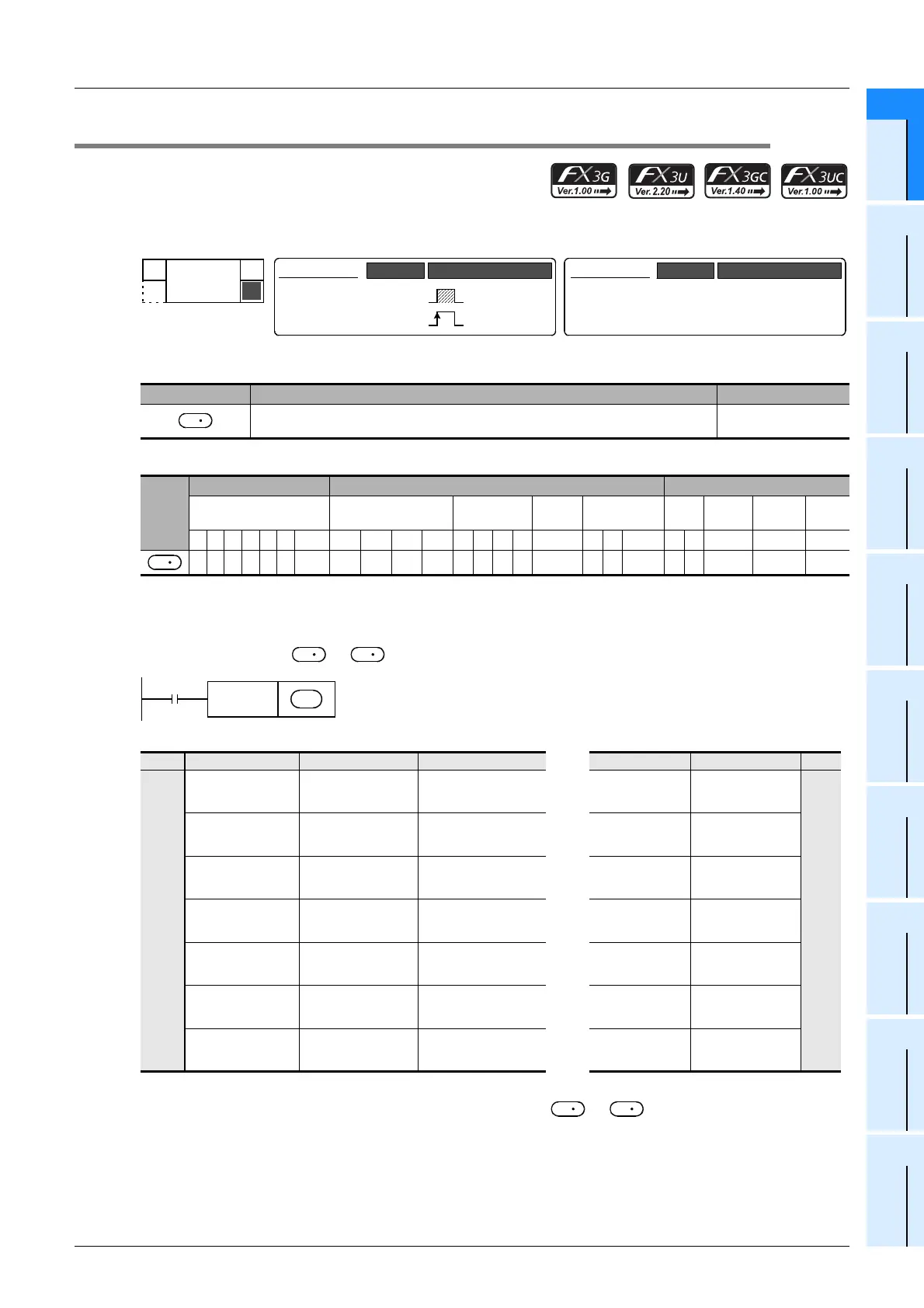

21.8 FNC167 – TWR / Set RTC data
Outline
This instruction writes the clock data to the built-in PLC real time clock.
1. Instruction format
2. Set data
3. Applicable devices
S: This function is supported only in FX3U/FX3UC PLCs.
Explanation of function and operation
The clock data stored in to +6 is written to D8013 to D8019 for the built-in PLC real time clock.
- D8018 (year data) can be converted into the 4-digit mode. (Refer to the program example shown later.)
- When TWR (FNC167) instruction is executed, the clock data of the real time clock is immediately changed.
Accordingly, transfer the clock data several minutes ahead to to +6 in advance, and then execute
FNC167 instruction when the accurate time has come.
- When setting the clock data (time) using this instruction, it is not necessary to control the special auxiliary relay
M8015 (time stop and time setting).
- If a numeric value indicating impossible date/time is set, the clock data is not changed.
Set the correct clock data, and then write it.
Operand type Description Data type
Specifies the head device number to which the clock data is written.
(Seven devices are occupied.)
16-bit binary
Oper-
and
Type
Bit Devices Word Devices Others
System User Digit Specification System User
Special
Unit
Index
Con-
stant
Real
Number
Charac-
ter String
Pointer
XYMTCSD
 .b KnX KnY KnM KnS T C D R U\G V Z Modify K H E "  "P
3333 S 3
Device Item Clock data Device Item
Time data to be set
D 10 Year
0 to 99
(lower two digits)
→
D8018 Year
Special data register
D 11 Month 1 to 12
→
D8017 Month
D 12 Day 1 to 31
→
D8016 Day
D 13 Hour 0 to 23
→
D8015 Hour
D 14 Minute 0 to 59
→
D8014 Minute
D 15 Second o to 59
→
D8013 Second
D 16 Day of week
0 (Sunday) to
6 (Saturday)
→
D8019 Day of week
P
FNC 167
TWR
−
Mnemonic Operation Condition
16-bit Instruction
3 steps
TWR
TWRP
Mnemonic Operation Condition
Continuous
Operation
Pulse (Single)
Operation
32-bit Instruction
S
S
S S
Command
input
FNC167
TWRP
S 
S S
