FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
19 Data Operation 2 – FNC140 to FNC149
19.7 FNC149 – SORT2 / Sort Tabulated Data 2
11
FNC30-FNC39 Rotation and Shift
12
FNC40-FNC49 Data Operation
13
FNC50-FNC59 High-Speed Processing
14
FMC60-FNC69 Handy Instruction
15
FNC70-FNC79 External FX I/O Device
16
FNC80-FNC89 External FX Device
17
FNC100-FNC109 Data Transfer 2
18
FNC110-FNC139 Floating Point
19
FNC140-FNC149 Data Operation 2
20
FNC150-FNC159 Positioning Control
Related devices
→ For the instruction execution complete flag use method, refer to Subsection 6.5.2.
Related instruction
Cautions
• Do not change the contents of operands and data during operation.
• To execute SORT2 instruction again, set the command input to OFF once, then ON again.
• Limitation in number of SORT2 instructions
Up to two SORT2 instructions can be simultaneously driven in a program.
• Writing during RUN is disabled for a circuit block including SORT2 instruction.
• When the same device is specified in and
The source data is overwritten with the data acquired by sorting.
Pay close attention not to change the contents of until execution of SORT2 instruction is completed.

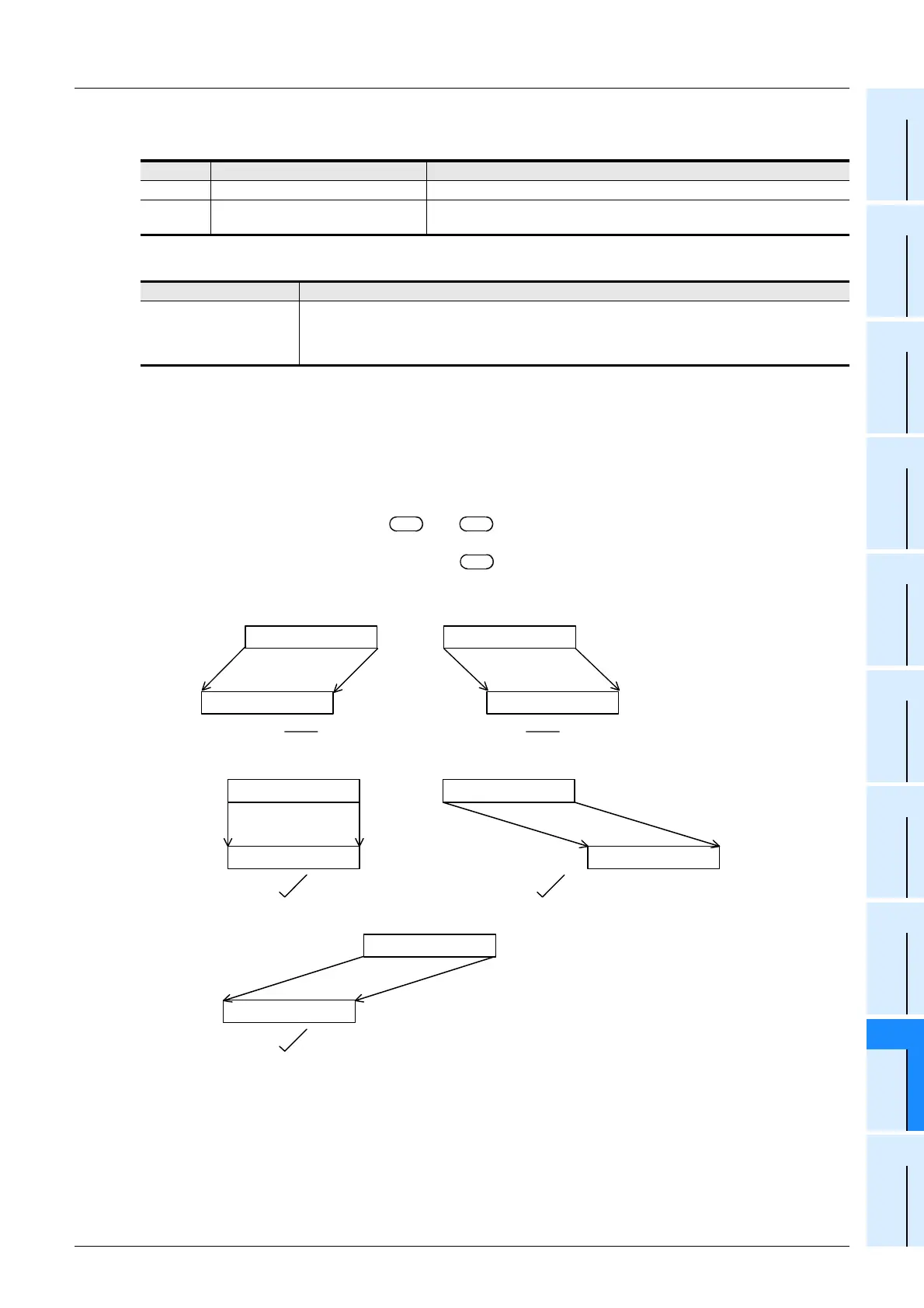

• Ensure that the sorted data does not overlap with the source data.
• Note that the 32-bit values [m1+1, m1] and [n+1, n] are valid when D or R is specified as "m1" or "n" in a 32-bit
instruction.
In the case of "DSORT2 D0 D50 K4 D100 R0", "m1" is [D51, D50], and "n" is [R1, R0].
Device Name Description
M8029 Instruction execution complete Turns ON when data sorting is completed.
M8165 Descending order
Sorts data in the descending order when set to ON.
Sorts data in the ascending order when set to OFF.
Instruction Description
SORT (FNC 69)
Sort tabulated data
This instruction sorts a data table consisting of data (lines) and group data (columns) based on a specified
group data (column) sorted by line in ascending order. This instruction stores the group data (columns) in
serial devices.
S D
S
Source Data
Sorted Data
Source Data Source Data
Source Data
Sorted Data
Sorted DataSorted Data
Sorted Data
Source Data
D10 D10D30 D30
D40
D2 D22 D20
D10 D10
D10
D30 D30
D55D35D30
D50 D70
D20
D40
