6 Setting the PLC system (1)

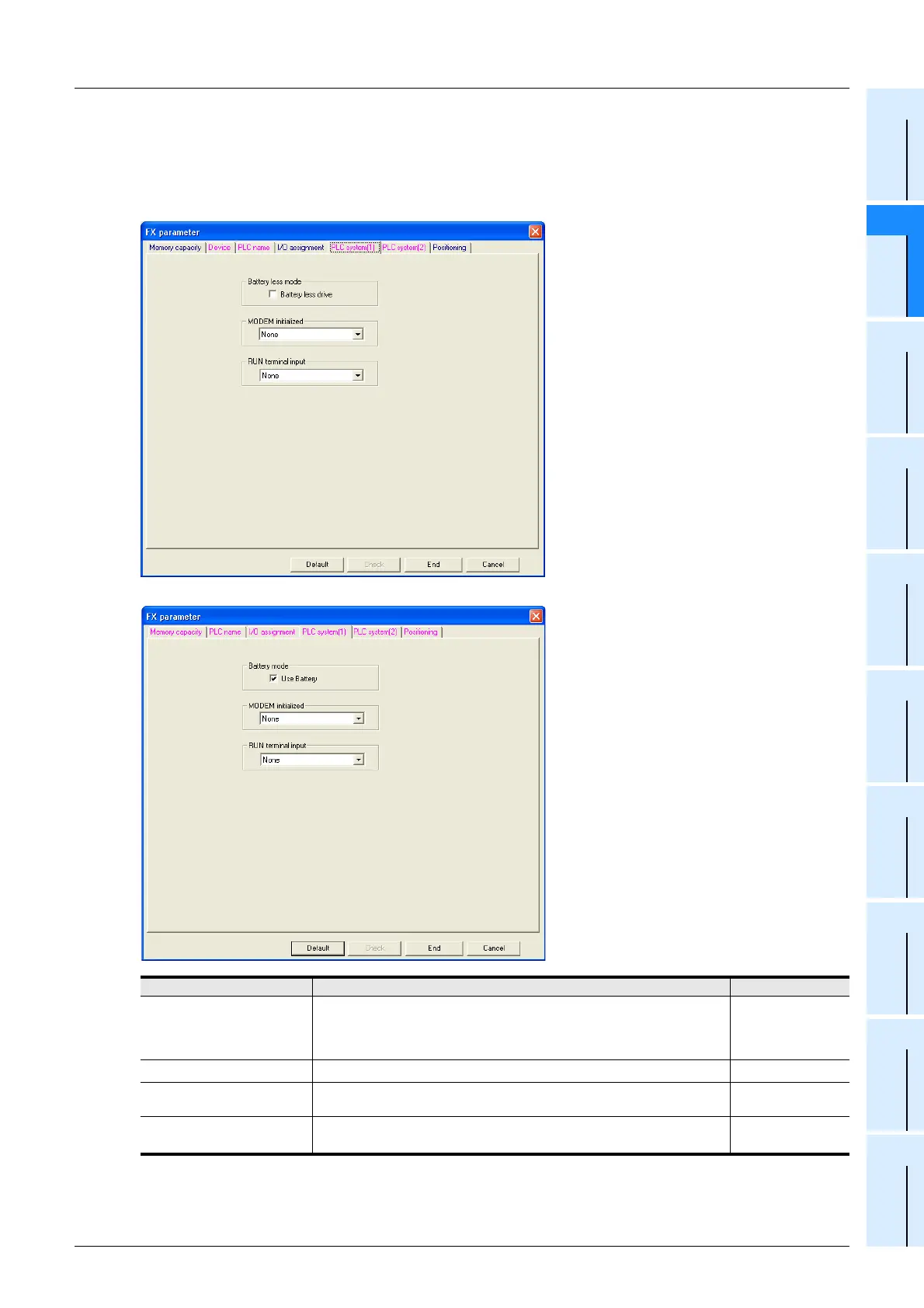

Click on the "PLC system (1)" tab to setup "Battery less mode", "MODEM initialized", and "RUN terminal
input."
1) FX3U/FX3UC PLC
2) FX3G/FX3GC PLCs
*1. This area can be set only in FX3U/FX3UC PLCs.
*2. This area can be set only in FX3G/FX3GC PLCs.
*3. X000 to X007 in the FX3U-16M, FX3UC-16M and 14-point type FX3G PLCs
X000 to X015 in 24-point type FX3G PLC
Set item Contents of setting Setting range
Battery less mode
*1
Select this to operate the PLC without using the battery.
When a check mark is put here, the battery error indicator lamp is automatically
turned off and devices in the latched (battery backed) area are automatically
cleared.
–
Battery mode
*2
Select this item to operate the PLC with the battery. –
MODEM initialized
Set this item to automatically initialize a connected modem when the PLC power
is turned ON.
–
RUN terminal input
Set this item to use an input terminal (X) to switch the PLC between STOP and
RUN.
None
X000 to X017
*3
