Mitsubishi FX3U Series Programming Manual

755
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
35 SFC Program and Step Ladder
35.1 SFC Program
31
FNC276-FNC279 Data Transfer 3
32
FNC280-FNC289 High-Speed Processing 2
33
FNC290-FNC299 Extension File Register
34
FNC300-FNC305 FX
3U
-CF-ADP
35
SFC•STL Programming
36
Interrupt Function
37
Special Device
38
Error Code
A
Version Up Information
B
Execution Times

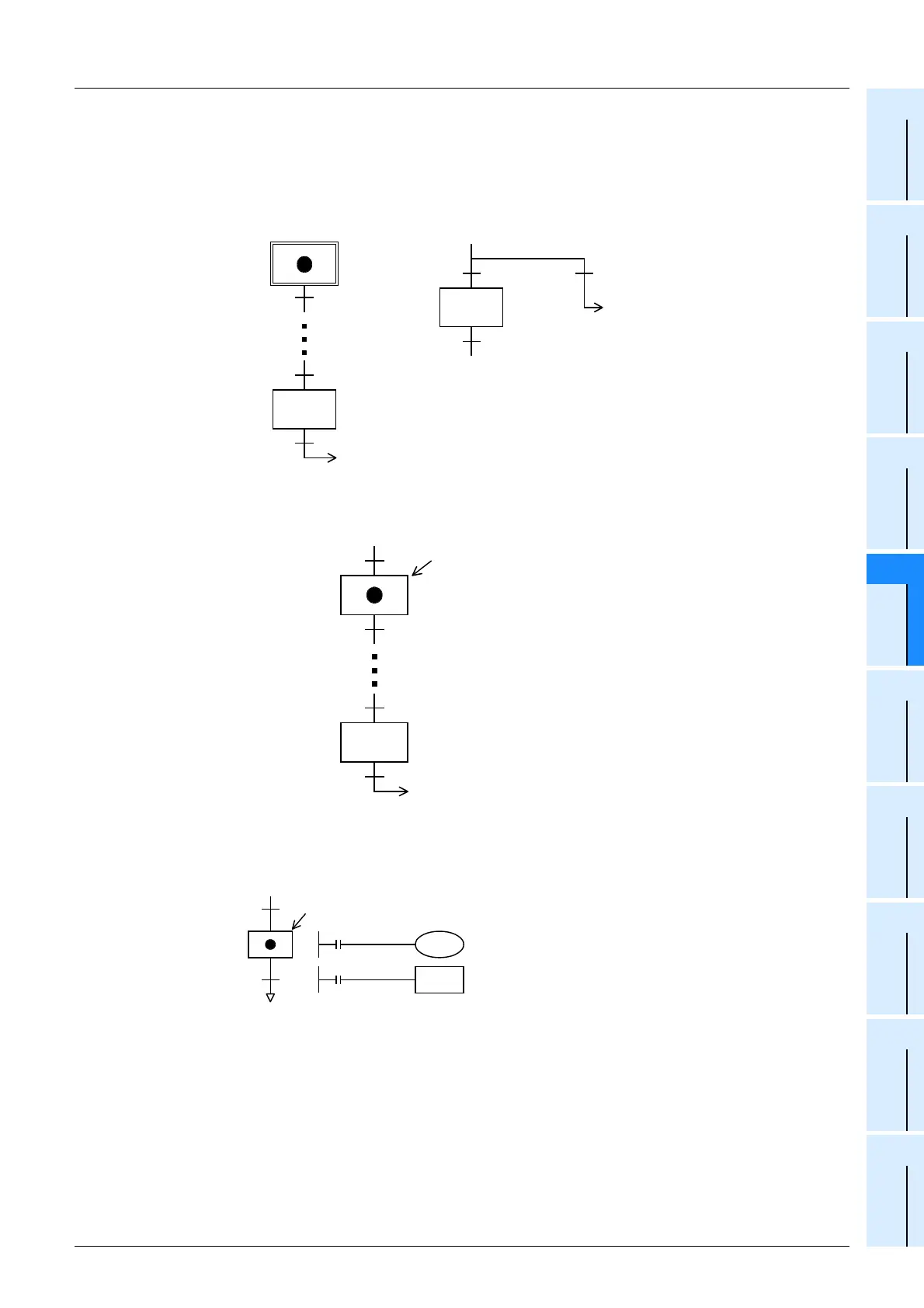

Operation of “  ” and “V”
Use “  ” to express transfer to a state relay in an upper position (repeat), transfer to a state relay in a lower position
(jump), or transfer to a state relay in a separate flow.
Use “V” to express reset of a state relay.
1) Transfer source program
2) Transfer destination program
In GX Developer, “z” is automatically displayed in the transfer destination state relay.
3) Reset circuit program
In the program example shown below, S65 is reset from S65 by way of X007.
Reset of another state relay (S70, for example) from S65 is executed in the same way.
In GX Developer, “z” is automatically displayed in a state relay to be reset.
0
19
Return to S0
Repeat
70
Jump
80
Jump to S80
0
20
Transfer destination state
relay
20
TRAN
65
Y003
X006
X007
State relay to be reset
65
When S65 is reset, Y003 turns
OFF.
