FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
35 SFC Program and Step Ladder
35.1 SFC Program
31
FNC276-FNC279 Data Transfer 3
32
FNC280-FNC289 High-Speed Processing 2
33
FNC290-FNC299 Extension File Register
34
FNC300-FNC305 FX
3U
-CF-ADP
35
SFC•STL Programming
36
Interrupt Function
37
Special Device
38
Error Code
A
Version Up Information
B
Execution Times
Composite flows with branches and recombination
The single flow format is the fundamental style in process transfer control. Only single flow is sufficient in sequence
control for simple operations. When various input conditions and operator manipulations intervene, however,
complicated conditions can be easily handled by using selective branches and parallel branches.
A branch for selectively processing many processes depending on a condition is called selective branch. A branch for
processing many processes at the same time is called parallel branch.

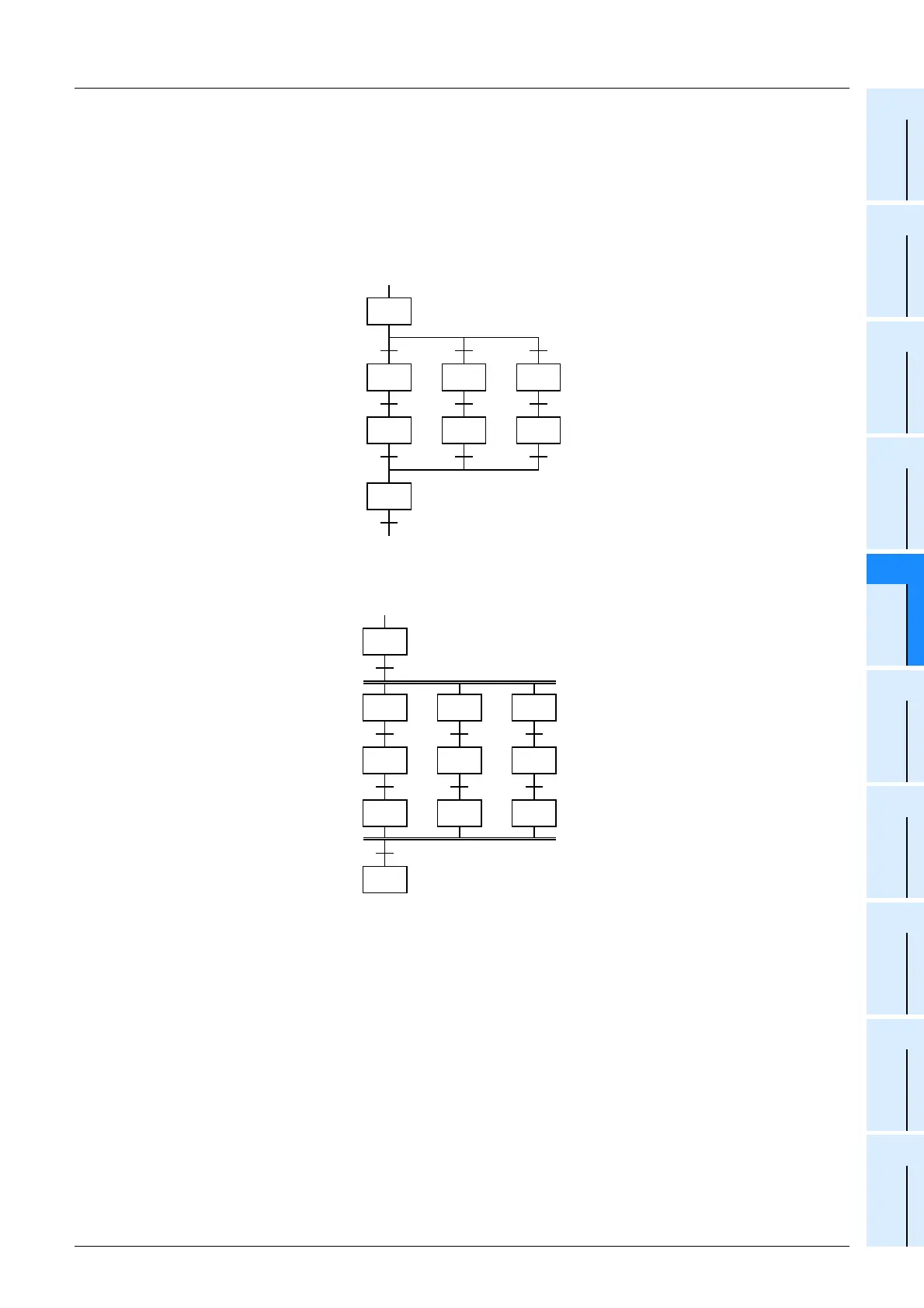

1. Selective branch
Either one among many flows is selected and executed.
2. Parallel branch
All of many flows are executed at the same time.
Branch state
relay
Recombination
state relay
Branch state
relay
Recombination
state relay
