Program version 2 (set/reset)
When X1 is switched on output Y10 is set (switched on). When X1 is switched off timer T0 is
started. After the delay period T0 then resets output Y10. The resulting signal sequence is
identical with that produced by program version 1.
5–18 MITSUBISHI ELECTRIC
Programming Tips for Timers and Counters Devices in Detail

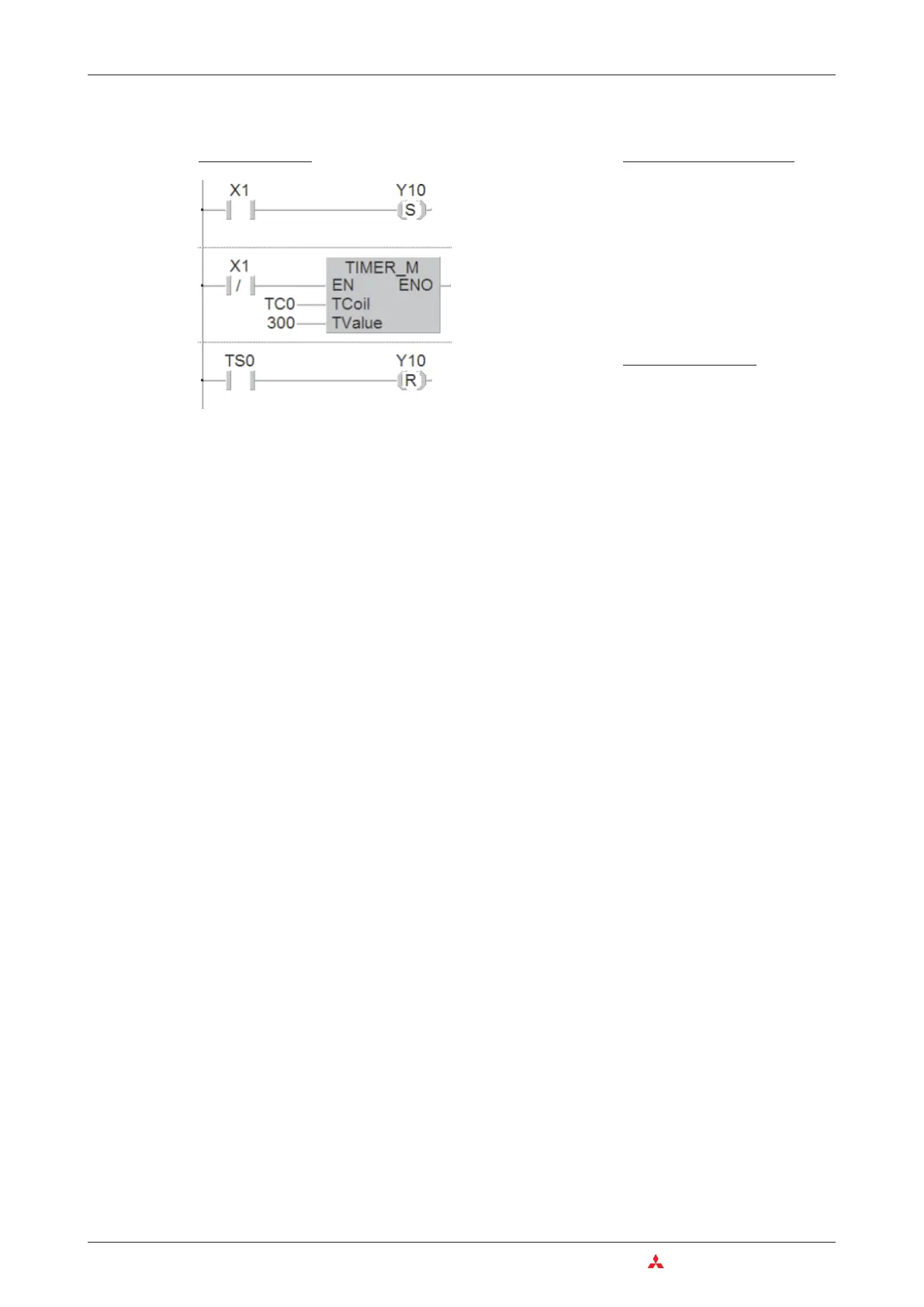

Ladder Diagram
MELSEC Instruction List
LD X1
SET Y10
LDI X1
OUT T0
K300
LD T0
RST Y000
IEC
Instruction List
LD X1
SY10
LDN X1
TIMER_M TC0, 300
LD TS0
RY10
