3.7.3 MELSEC Networks
MELSECNET/10/H
MELSECNET/10 and MELSECNET/H are high-speed networks for the data exchange
between MELSEC PLCs. Even remote I/O-Stations can be integrated in these networks.
MELSECNET/10/H enables you to program and monitor every PLC in the system from any
station.
Up to 255 MELSECNET/10/H networks can be linked together. The build-in router functionality
allows easy data transfer from one network to another. For the cyclic communication an
extraordinary large amount of data (8192 words and 8192 relays) is available.In parallel to the
cyclic data exchange it is also possible for any station to send data to and read data from any
other station, even across several networks.
MELSECNET/10 gives you a wide choice of cable types and topologies: from coaxial bus
(max. 500 m) over a coaxial duplex loop to a fibre-optics duplex loop for distances of up to
30 km(!).
3–40 MITSUBISHI ELECTRIC

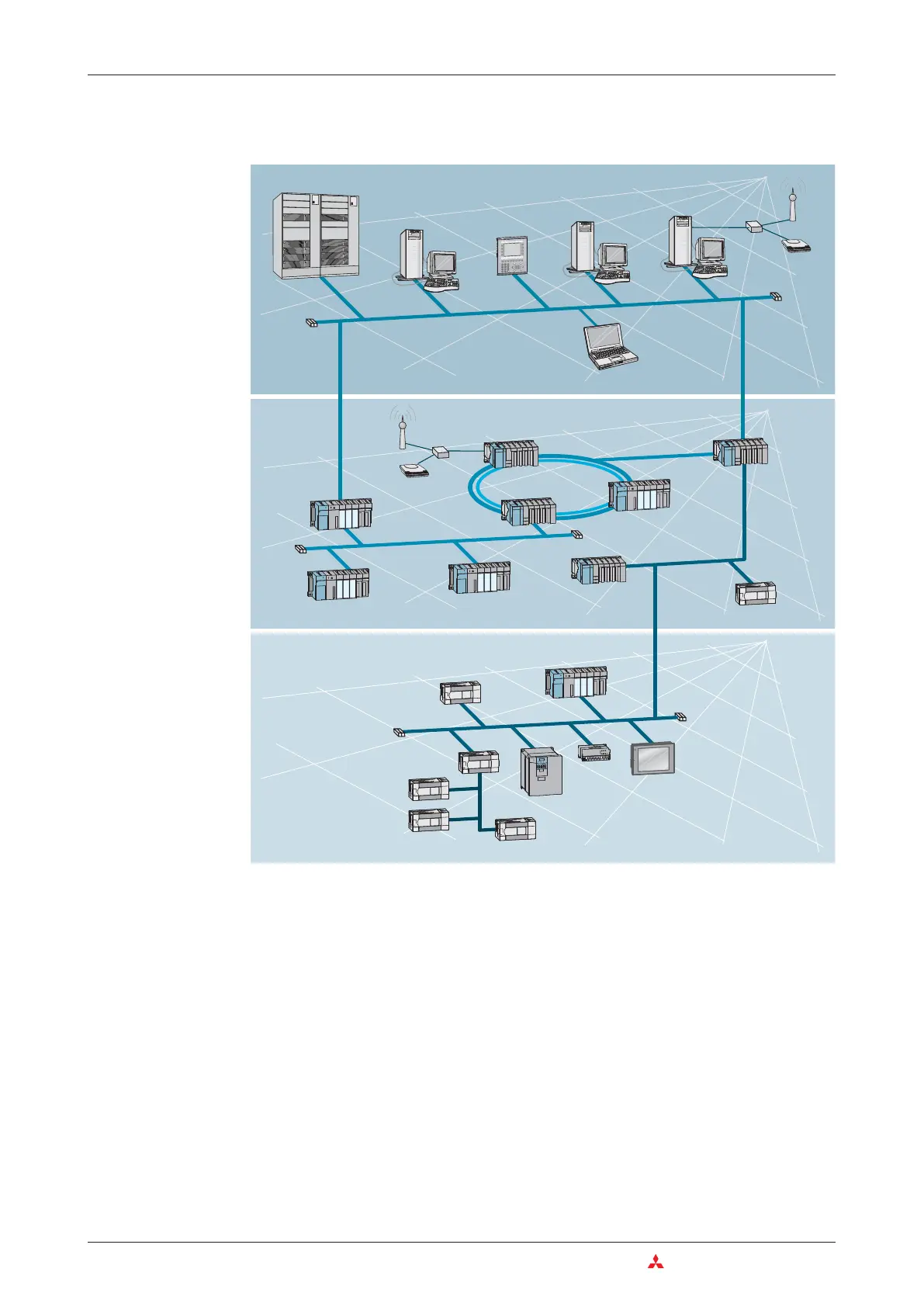

Das MELSEC System Q Networks and Network Modules
TCP/IP ETHERNET
TCP/IP ETHERNET
FX1N/FX2N(C)
CC-LINK
CC-LINK
CC-LINK
CC-LINK
MELSEC
FX-PPN
MELSEC
FX-PPN
MELSECNET/10
MELSECNET/10
Q
Q
AnSH/QnAS
AnSH/QnAS
AnSH/QnAS
MELSECNET/10
MELSECNET/10
AnSH/QnAS
FX1N/FX2N(C)
1
Q
Q
1
1
1
AnSH/QnAS
MAC E900
7
8
4
5
6
1
2
3
-
0
ABCD
EFGH
IJK
L
MNOP
QRST UVWX
YZ!?
C1-C4
<
>
(
)
+
/
*=
°
%#
_'
9
ACK
PREV
LIST
MAIN
Command Level
TCP/IP ETHERNET
Control Level
CC-Link
MELSECNET/10
MELSECNET/H
Production Level
CC-Link
MELSEC FX-PPN
