ence of multiple programs.When processing any program, the corresponding local device
data is transferred from the local device area to the executing device area and program
processing is then performed.
–
Debugging data
Trace result storage file for the trace function used for program debugging.
–
Data file written by a FWRITE instruction
These data can be stored on ATA memory cards (Q2MEM-8MBA/16MBA/32MBA)only.
Memory Cards
All PLC CPUs of the MELSEC System Q except the CPU modules Q00JCPU, Q00CPU and
Q01CPU can be equipped with a memory card.
Before the memory card can be used for the first time the memory card must be formatted by
GX Developer or GX IEC Developer.
A program stored in a memory card is transferred to the program memory at power-on and exe
-
cuted in the program memory. The behaviour at power-on can be set in the parameters (Boot
file).

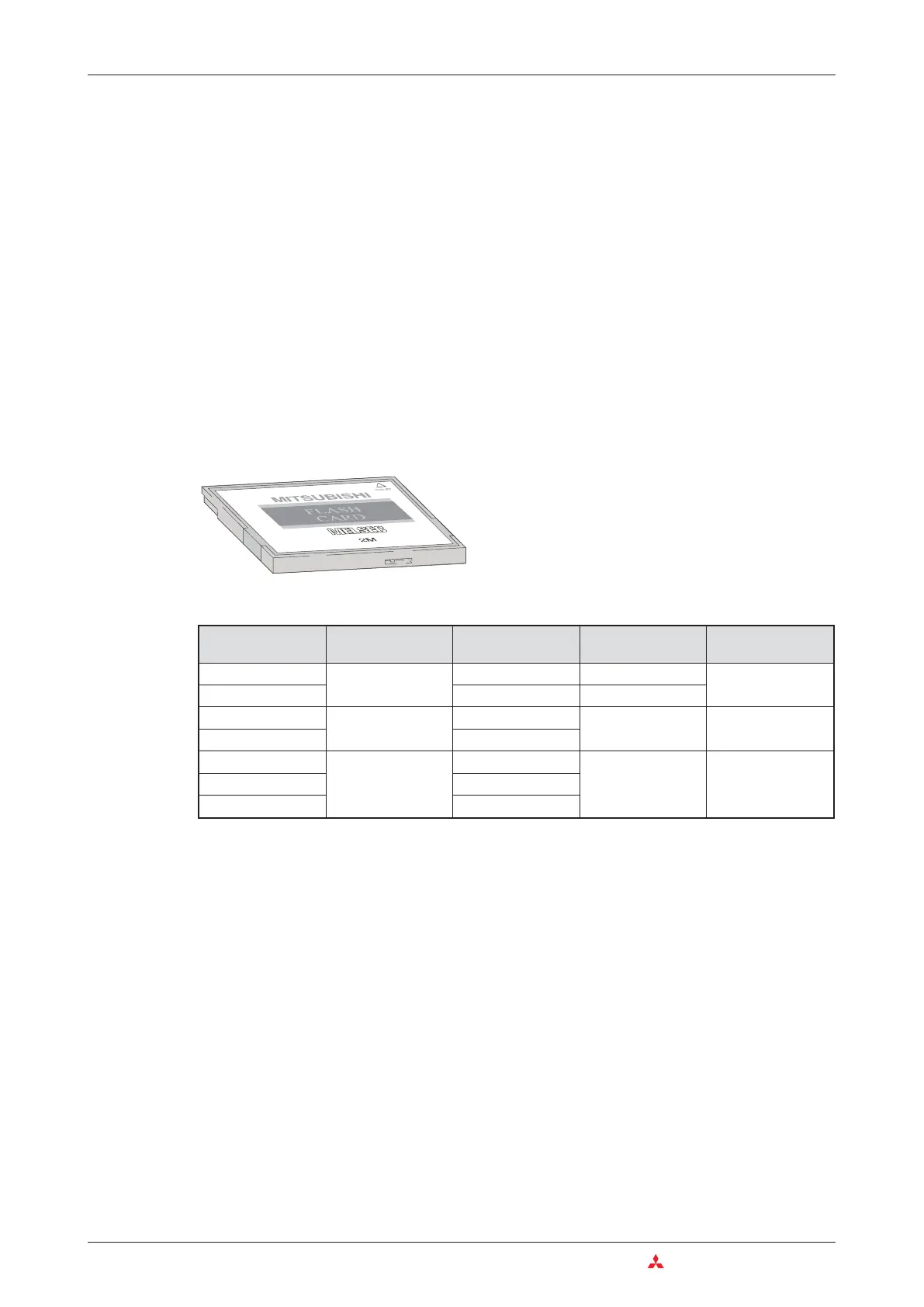

Available memory cards
3–14 MITSUBISHI ELECTRIC
The CPU Modules The MELSEC System Q
The write protect switch on the card will prevent any
unintentional overwriting of stored data. A battery
within the RAM memory card will hold the data dur
-
ing an interrupt of the power supply.
Designation Type of memory
Memory capacity
[Bytes]
Memory capacity
[Number of files]
Number of writings
Q2MEM-1MBS
SRAM
1011 k 256
No limitation
Q2MEM-2MBS 2034 k 288
Q2MEM-2MBF
Flash ROM
2035 k
288 100 000
Q2MEM-4MBF 4079 k
Q2MEM-8MBA
ATA ROM
7940 k
512 1 000 000Q2MEM-16MBA 15932 k
Q2MEM-32MBA 31854 k
