3 IDENTIFICATION
3.1 Hoist identification data

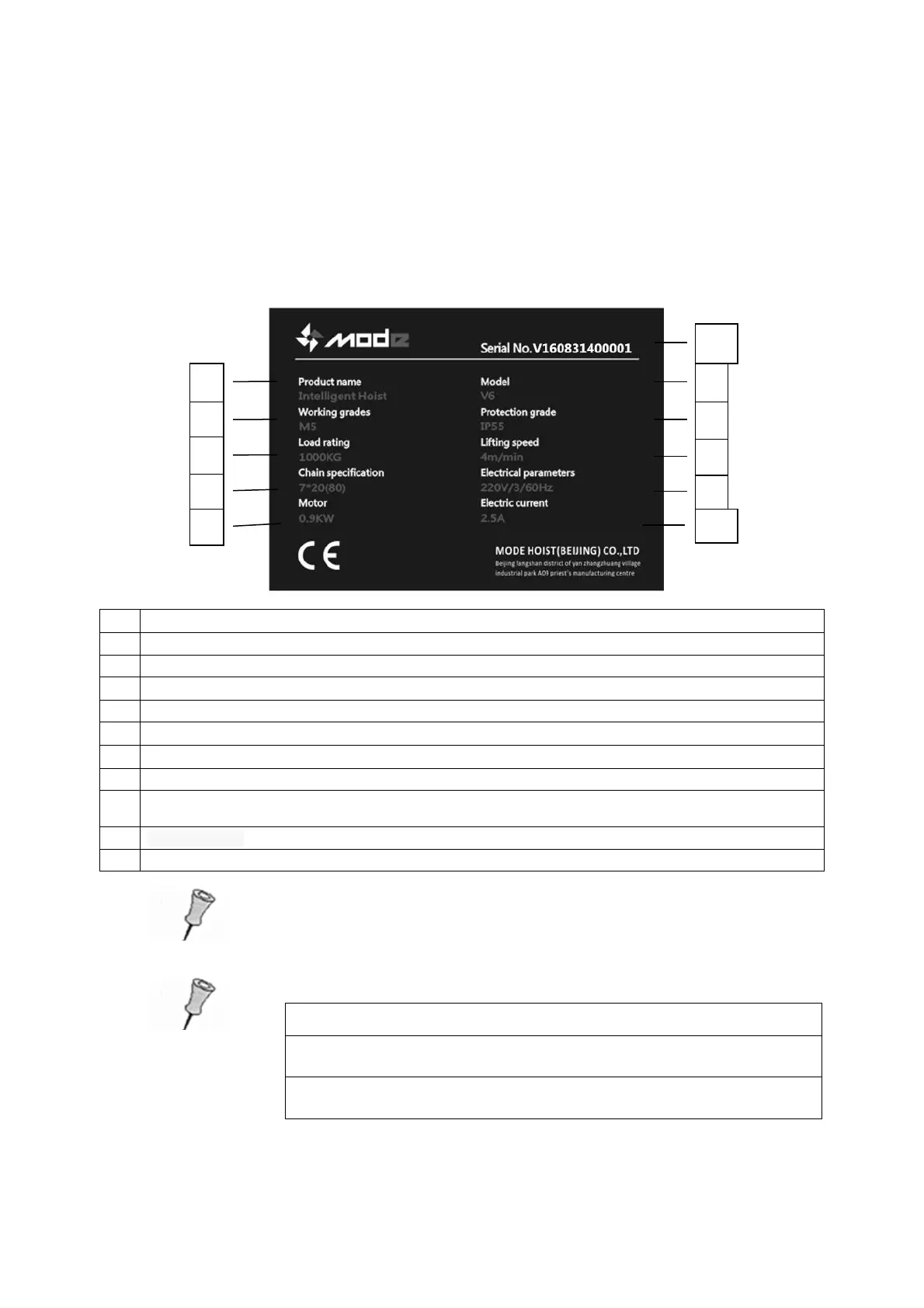

The hoist serial number is stated on the hoist's data plate located on the hoist body and inside
the electrical enclosure.
1
Name of the product
2
Work level of the product
3
Maximum load that can be lifted with the product
4
Diameter and pitch of the chain used
5
Power rating of the product
6
The product's type
7
Protection class type for enclosures
8
High/low hoisting speed
9
Voltage and frequency with which the product can be connected to a power source and phase
quantity of the motor
10
electric current
11
A unique product identification number
Note: The example data in the above figure is shown for illustration
purposes only and does not match the data on your product.
Note:
Duty class
Duty class H4 results in cycle time of 48 seconds and300 starts per hour
at65% of rated load.
Duty class H3 results in cycle time of 48 seconds and150 starts per hour
at65% of rated load.
