MODE V6 - 8.8 Frame

7/2015
This document and the information contained herein, is the exclusive property of MODE. And represents a nonpublic,
confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, or otherwise employed in
any manner. whatsoever without the express written consent of MODE. Copyright © (2016) MODE. Allrights reserved.
69 / 82

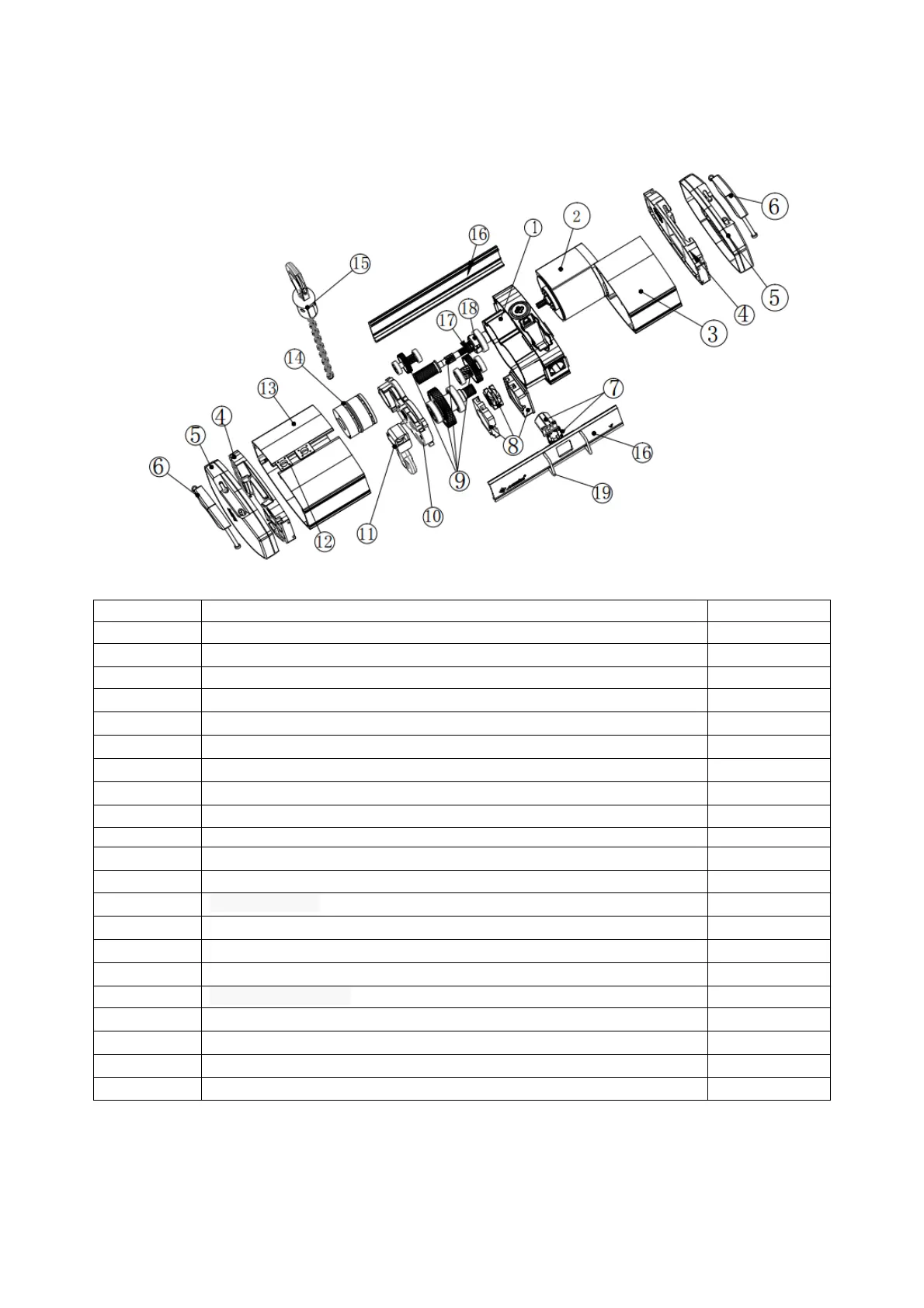

8.8 Frame
ITEM
DESCRIPTION
QTY
1
FRAME
1
2
MOTOR
1
3
MOTOR HOUSING
1
4
COVERS SET/SIDE MOTOR
1
4
COVERS SET/SIDE BRAKE
1
5
RUBBER SET / SIDE MOTOR
1
5
RUBBER SET/SIDE BRAKE
1
6
CRANE HANDLE
2
7
GUARD CHAIN
1
8
THE CHAIN GUIDE DEVICE
1
9
GEAR PINIONS SET
4
10
GEAR CASE COVER
1
11
CRANE HOOK
1
12
CABLE FIXING SEAT
5
13
BRAKE HOUSING
1
14
ELECTROMAGNETIC BRAKE
2
15
THE CHAIN HOOK
1
16
THE SIDE PANEL
2
17
SAUCER REED
8
18
COUPLING SIDE BRAKE
1
19
CHAIN BUCKET HANDLES
2
